Create high-performance storage with configurable RAID, by installing two M.2 SATA SSDs into a 2.5” SATA interface
Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5” drive bay, and increase your storage options by configuring a powerful RAID array.
Build a RAID array to enhance system performance
The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another.
Maximize file transfer speeds
The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps.
The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.

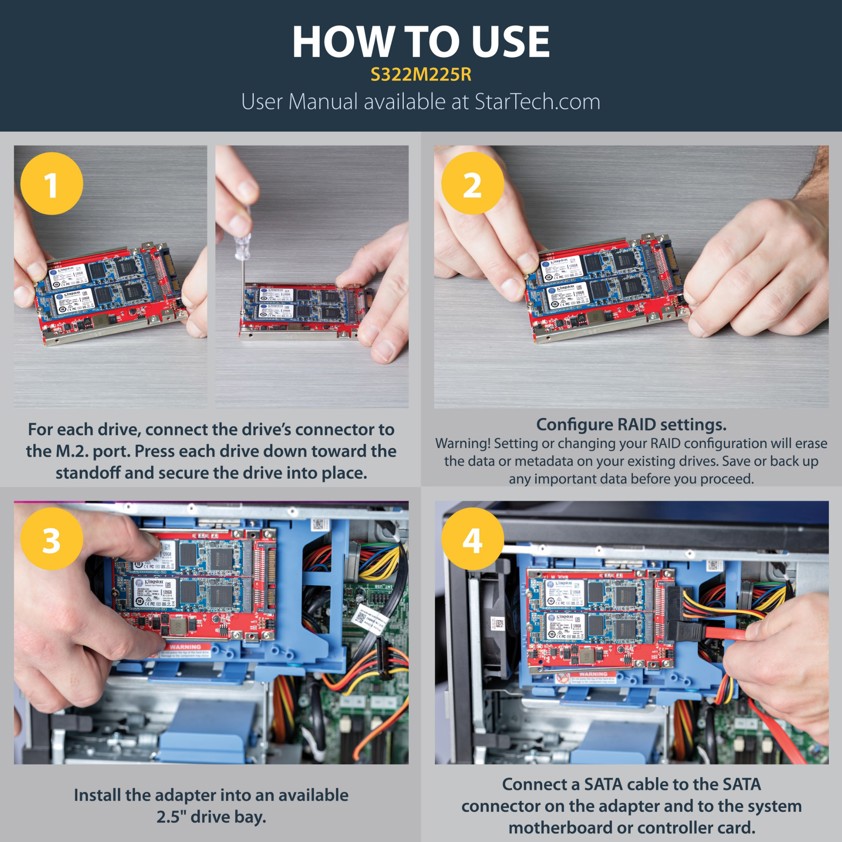

Easy installation
This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn’t require any extra software or drivers, to get you up and running quickly.
The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Install two M.2 SSD drives into a single 2.5” drive bay
- Multiple RAID modes supported: RAID 0, 1, spanning, or JBOD
- Open-frame steel mounting bracket with 2.5” SATA form factor housing

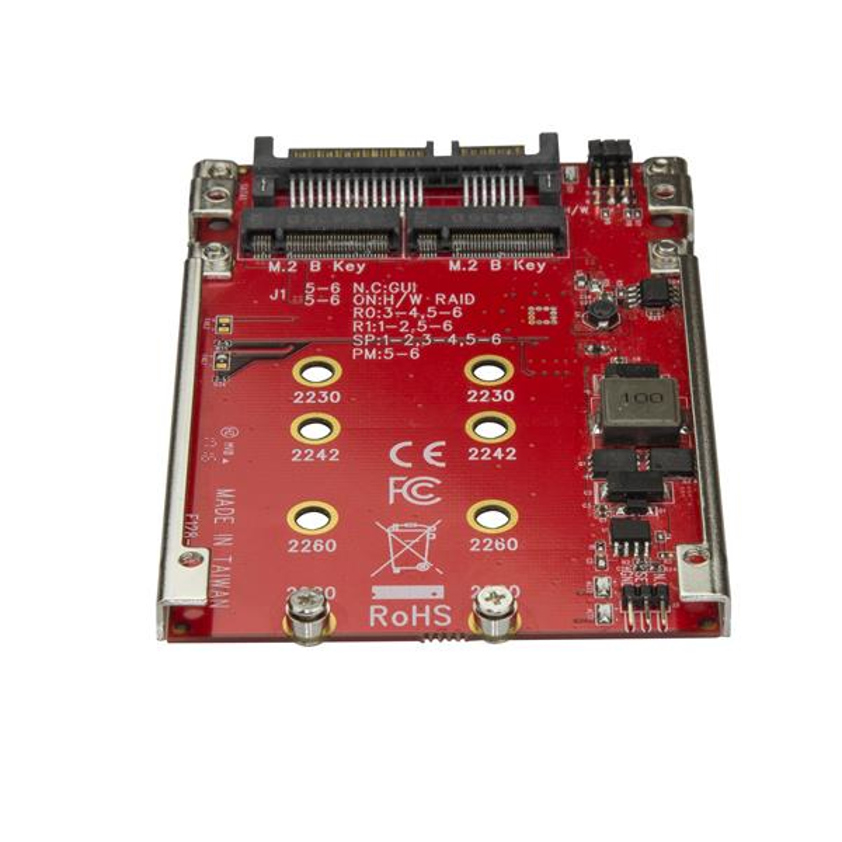

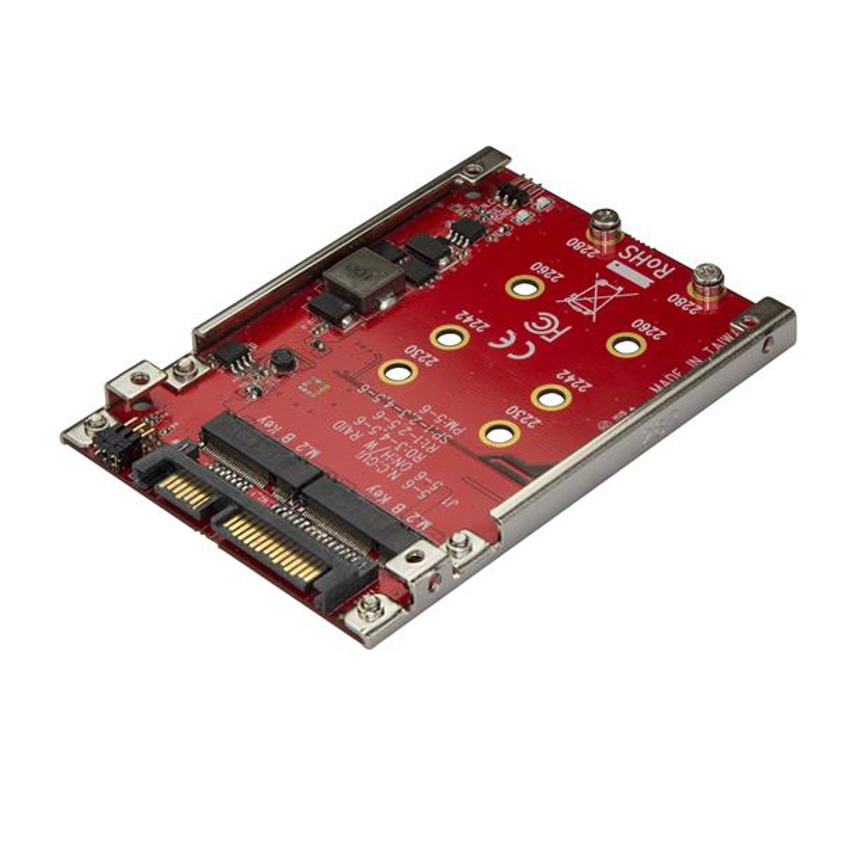

StarTech.com Dual-Slot M.2 Drive to SATA Adapter for 2.5" Drive Bay - RAID
SKU: S322M225R£31.12 ex VAT
£37.34 inc VAT
In stockPorts & interfaces Internal Yes Port multiplier Yes Output interface M.2 SATA revision 3.0 Host interface SATA Number of M.2 (B) slots 2 Number of SSDs supported 2 Technical details Plug and Play Yes Chipset ASMedia - ASM1092R RAID levels 0, 1, BIG, JBOD Data transfer rate (max) 6 Gbit/s Compliance certificates RoHS Performance Port multiplier Yes Hot-swap No Plug and Play Yes Chipset ASMedia - ASM1092R RAID levels 0, 1, BIG, JBOD Data transfer rate (max) 6 Gbit/s Product colour Red TRIM support Yes S.M.A.R.T. support Yes Harmonized System (HS) code 84733020 Certificates Certification CE, FCC, REACH, TAA Colour Product colour Red Design Hot-swap No Easy to install Yes Internal Yes Product colour Red Certification CE, FCC, REACH, TAA Features Plug and Play Yes Chipset ASMedia - ASM1092R RAID levels 0, 1, BIG, JBOD Data transfer rate (max) 6 Gbit/s TRIM support Yes S.M.A.R.T. support Yes Harmonized System (HS) code 84733020 Operational conditions Operating temperature (T-T) 5 - 50 °C Storage temperature (T-T) -25 - 70 °C Operating relative humidity (H-H) 15 - 90% Weight & dimensions Width 70 mm Depth 100 mm Height 7 mm Weight 41 g Package width 172 mm Package depth 142 mm Package height 30 mm Package weight 110 g Packaging data Mounting brackets included Yes Package width 172 mm Package depth 142 mm Package height 30 mm Package weight 110 g Quick installation guide Yes Screws included Yes Logistics data Harmonized System (HS) code 84733020 Packaging content Mounting brackets included Yes Quick installation guide Yes Screws included Yes Other features Chipset ASMedia - ASM1092R Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
