Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard
The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
The StarTech.com Advantage

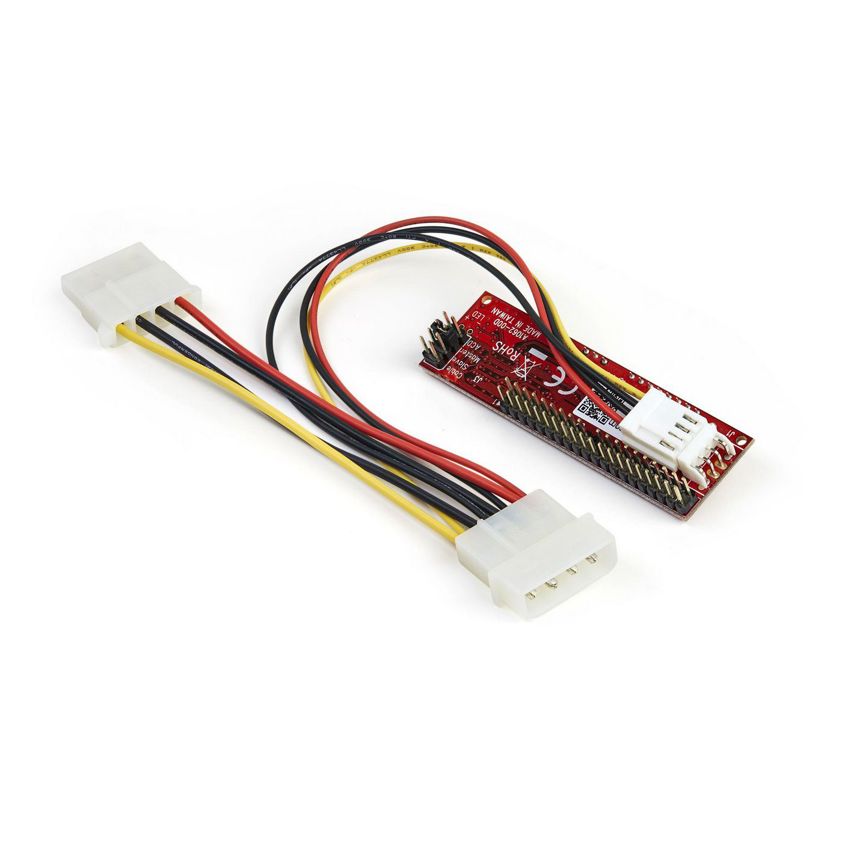

StarTech.com IDE to SATA Hard Drive or Optical Drive Adapter - 40-Pin PATA to 2.5" SATA HDD/SSD/ODD Converter
SKU: IDE2SAT2£12.66 ex VAT
£15.19 inc VAT
In stockPorts & interfaces Internal Yes Output interface SATA Connector(s) 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin) Host interface IDE Technical details Chipset Marvell - 88SA8052 Logical block addressing (LBA) support 48 bit Data transfer rate (max) 0.133 Gbit/s Material Plastic, Steel Compliance certificates RoHS Performance Chipset Marvell - 88SA8052 Logical block addressing (LBA) support 48 bit Data transfer rate (max) 0.133 Gbit/s Product colour Red Harmonized System (HS) code 84733020 Certificates Certification FCC, CE, TAA, REACH Colour Product colour Red Design Internal Yes Product colour Red Certification FCC, CE, TAA, REACH Features Chipset Marvell - 88SA8052 Logical block addressing (LBA) support 48 bit Data transfer rate (max) 0.133 Gbit/s Harmonized System (HS) code 84733020 Operational conditions Operating temperature (T-T) 5 - 50 °C Storage temperature (T-T) -25 - 80 °C Operating relative humidity (H-H) 15 - 90% Weight & dimensions Width 20 mm Depth 75.5 mm Height 23 mm Weight 29 g Package width 175 mm Package depth 145 mm Package height 33 mm Package weight 89 g Packaging data Manual Yes Package width 175 mm Package depth 145 mm Package height 33 mm Package weight 89 g Logistics data Products per master (outer) case 60 pc(s) Master (outer) case width 380 mm Master (outer) case length 496 mm Master (outer) case height 321 mm Harmonized System (HS) code 84733020 Other features Material Plastic, Steel Chipset Marvell - 88SA8052 Packaging content Manual Yes Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
