Rugged Ethernet Switch | 5 RJ45 (4 PoE) | 2 SFP Slots | 30W PoE+ | 12V-48V DC
Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.
Power Over Ethernet & Low Voltage
Ideal for powering PoE devices in situations where a traditional power source is not available; it accepts power as low as 12VDC for applications such as transportation (auto/bus/rail) and solar. PoE output is boosted to PoE/PoE+ standards (IEEE 802.3af/at, 55V) in applications where non-standard 12V (or higher) power sources are available.
With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
• Cameras
• Sensors
• Wi-Fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Flexible Power Input & Low Voltage
Power input flexibility between 12/24/48/56V DC and low voltage DC inputs reduces the complexities of installation by avoiding additional in-line devices to boost power before it reaches the switch.

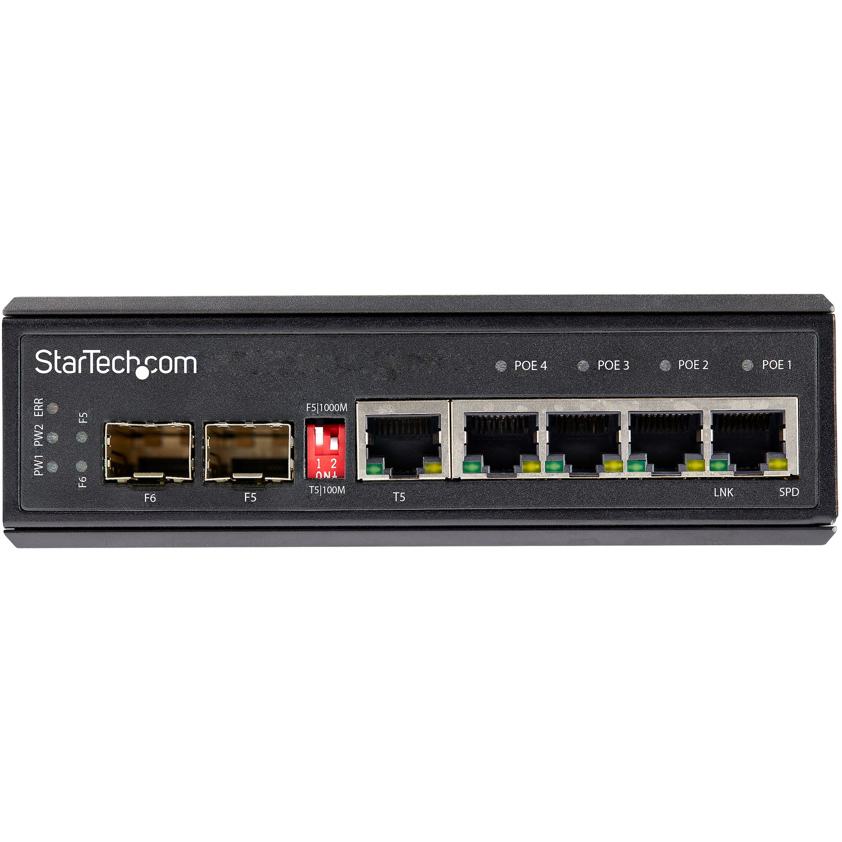

This unique switch allows for 5x RJ-45 ports (4x PoE) to be active + 1 SFP, or 4 x RJ-45 (all PoE) + 2 SFP, for 6 device connections total.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32
Includes an exterior aluminum heat sink for superior passive cooling; 600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

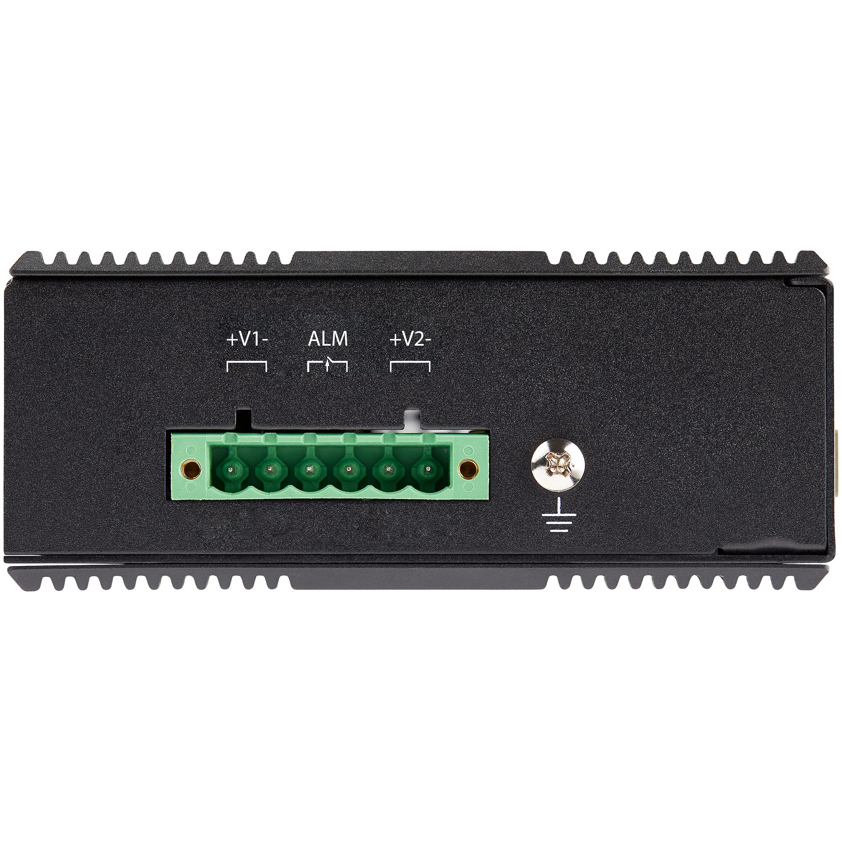

Dual Power Inputs
Dual power inputs provide redundancy. Accepts dual terminal block power, allowing the product to be hardwired from multiple power sources for high availabilty applications.
The IES1G52UP12V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com Industrial 6 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable
SKU: IES1G52UP12V£284.82 ex VAT
£341.78 inc VAT
Out of stockPorts & interfaces Terminal block port Yes Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T SFP module slots quantity 2 Basic switching RJ-45 Ethernet ports quantity 5 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Performance Auto-negotiation Yes Buffer size 128 KB Mean time between failures (MTBF) 693764 h Harmonized System (HS) code 85176990 Technical details Product colour Black Mean time between failures (MTBF) 693764 h Housing material Aluminium, Steel Rack mounting No Management features Switch type Unmanaged Network Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x Full duplex Yes Flow control support Yes Auto MDI/MDI-X Yes 10G support No Auto-negotiation Yes Data transmission Jumbo frames 9000 Switching capacity 12 Gbit/s Jumbo frames support Yes Protocols Supported network protocols CSMA/CD Certificates Safety EN60950-1 Certification CE, RoHS, FCC Design Wall mountable Yes International Protection (IP) code IP30 DIN rail mounting Yes Safety EN60950-1 Product colour Black LED indicators Activity, Link, PoE, Power Housing material Aluminium, Steel Certification CE, RoHS, FCC Rack mounting No Indication LED indicators Activity, Link, PoE, Power Power Surge protection voltage 2 kV Surge protection Yes Power over Ethernet (PoE) Power over Ethernet (PoE) power per port 30 W Power over Ethernet plus (PoE+) ports quantity 4 Total Power over Ethernet (PoE) budget 120 W Power over Ethernet (PoE) Yes Operational conditions Storage temperature (T-T) -40 - 85 °C Operating temperature (T-T) -40 - 75 °C Operating relative humidity (H-H) 5 - 95% Weight & dimensions Width 105 mm Depth 142 mm Height 43 mm Weight 701.4 g Packaging data Terminal block included Yes Quick start guide Yes Package width 211 mm Package depth 162 mm Package height 64 mm Package weight 946.4 g Logistics data Master (outer) case width 355 mm Master (outer) case length 345 mm Master (outer) case height 225 mm Products per master (outer) case 10 pc(s) Harmonized System (HS) code 85176990 Other features Terminal block port Yes Packaging content Terminal block included Yes Quick start guide Yes Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
