Rugged PoE Injector | 30 Watts | IP-30 Aluminum Housing | 48V-56V DC | DIN Rails
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
30 Watt Power Budget
Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
Cameras
Sensors
Wi-fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-fall: EN 60068-2-32
600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

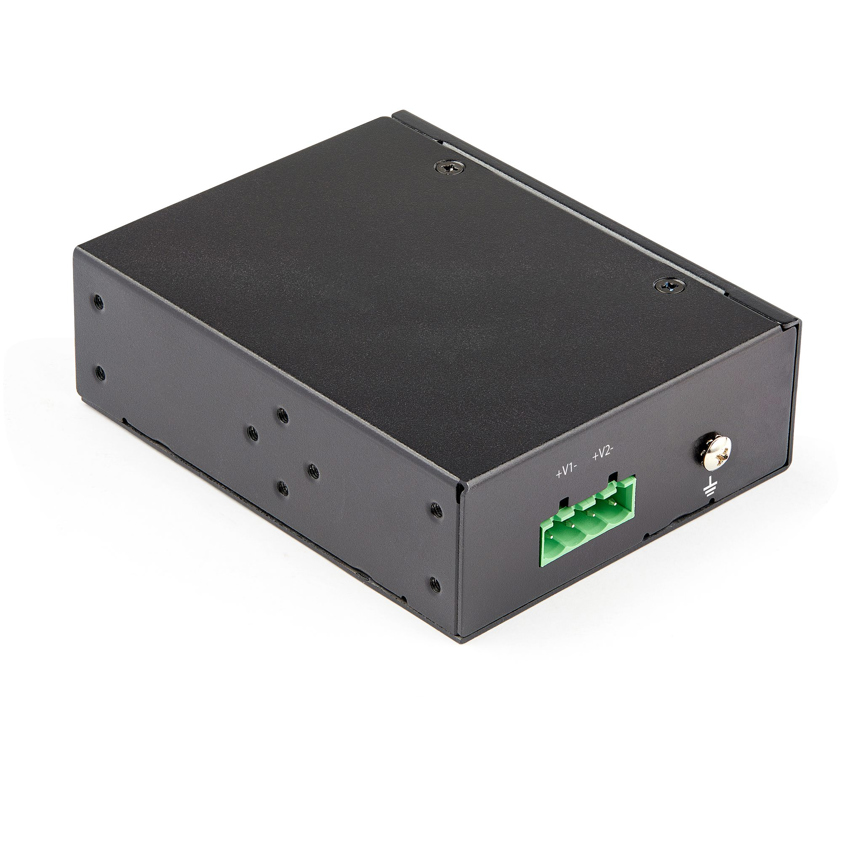

Dual Power Inputs
Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- 30 WATT GIGABIT ETHERNET PoE INJECTOR: Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like cameras, sensors, and wi-fi access points
- TECH SPECS: 1 Gbps
- 48V-56VDC input
StarTech.com Industrial Gigabit Ethernet PoE Injector - 30W 802.3at PoE+ Midspan 48V-56VDC DIN Rail Power Over Ethernet Injector Adapter - -40C to +75C Cameras/Sensors/WiFi Access
SKU: POEINJ30W£34.04 ex VAT
£40.85 inc VAT
Out of stockNetwork Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u Duplex system Full Auto MDI/MDI-X Yes Power over Ethernet (PoE) Yes Ethernet LAN data rates 10,100,1000 Mbit/s Ethernet interface type Fast Ethernet, Gigabit Ethernet Supported network protocols CSMA/CD Features Surge protection Yes Maximum operating distance 100 m Product colour Black Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u Power protection features Overload, Reverse polarity Safety MET (UL) 60950-1, EN60950-1 LED indicators Yes Certification CE, FCC, UL Ports & interfaces RJ-45 input ports 1 RJ-45 output ports 1 Power Power consumption (max) 37 W Power over Ethernet (PoE) power per port 30 W Input voltage 48 - 56 V Power plug type Type N Technical details Package width 162 mm Package length 21.1 cm Safety MET (UL) 60950-1, EN60950-1 Power over Ethernet (PoE) Yes Input voltage 48 - 56 V Ethernet LAN data rates 10,100,1000 Mbit/s Ethernet interface type Fast Ethernet, Gigabit Ethernet Harmonized System (HS) code 85044095 Compliance certificates RoHS Operational conditions Storage temperature (T-T) -40 - 85 °C Operating temperature (T-T) -40 - 75 °C Operating relative humidity (H-H) 5 - 95% Weight & dimensions Package weight 381 g Package depth 64 mm Package width 162 mm Package length 21.1 cm Weight 143 g Packaging data Package weight 381 g Package depth 64 mm Package width 162 mm Package length 21.1 cm Packaging content Quick installation guide Yes Certificates Certification CE, FCC, UL Indication LED indicators Yes Logistics data Master (outer) case width 355 mm Master (outer) case length 345 mm Master (outer) case height 225 mm Products per master (outer) case 10 pc(s) Harmonized System (HS) code 85044095 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
Items must be returned in an unused and saleable condition within 16 days of the receipt of goods. Please read our delivery and returns policy for further information.
