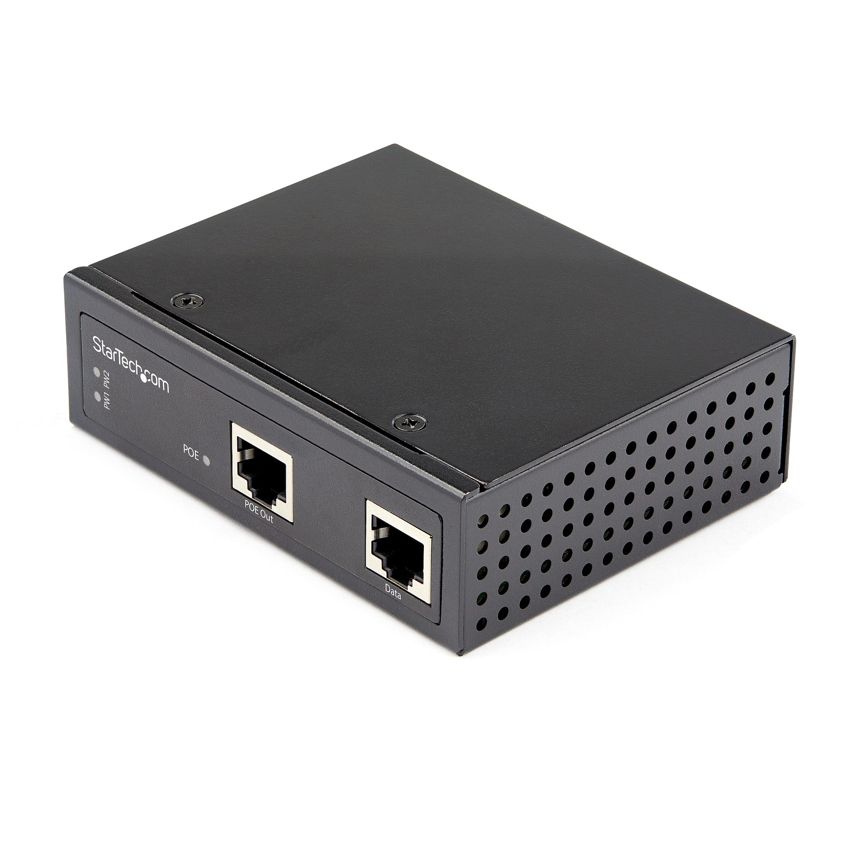

Rugged PoE Injector | 90 Watts Max | IP-30 Aluminum Housing | 52V-56V DC

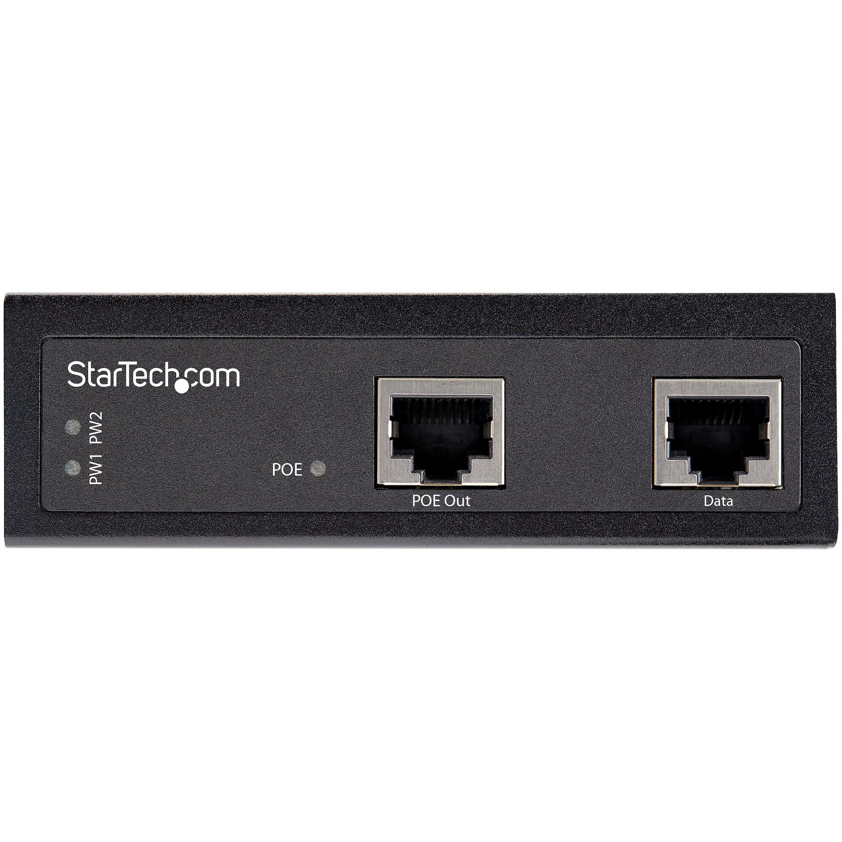

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
Flexible Configurations for a Variety of Applications

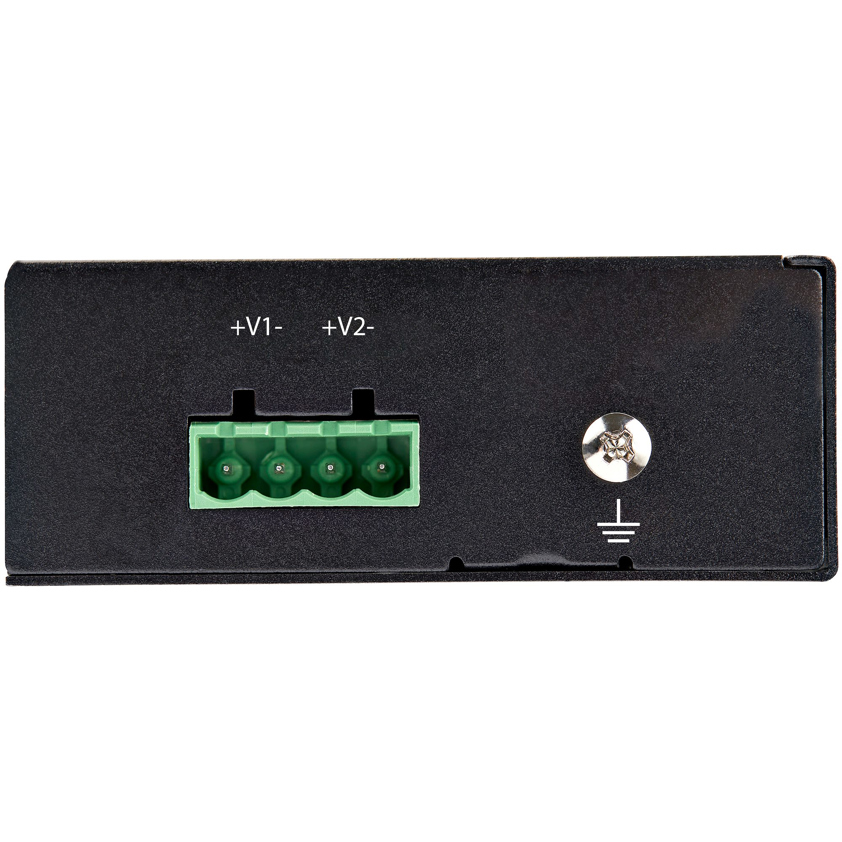

Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.
90 Watt Power Budget
As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
The StarTech.com Advantage
StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged
SKU: POEINJ1G90W£164.81 ex VAT
£197.77 inc VAT
Out of stockPerformance Jumbo frames support Yes Duplex system Full International Protection (IP) code IP30 Ethernet LAN data rates 10,100,1000 Mbit/s Type Network repeater Maximum transfer distance 100 m Power over Ethernet (PoE) Yes Data transfer rate 1000 Mbit/s Chipset Microsemi PD69204 Mean time between failures (MTBF) 540891 h Auto MDIX IEEE Yes Auto-negotiation Yes Technical details Jumbo frames support Yes Duplex system Full International Protection (IP) code IP30 Ethernet LAN data rates 10,100,1000 Mbit/s LED indicators Yes Type Network repeater Maximum transfer distance 100 m Power over Ethernet (PoE) Yes Data transfer rate 1000 Mbit/s Chipset Microsemi PD69204 Auto MDIX IEEE Yes Auto-negotiation Yes Harmonized System (HS) code 85176990 Compliance certificates CE, RoHS Network Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u Ports & interfaces Power over Ethernet (PoE) ports quantity 2 Terminal block port Yes Design Housing material Aluminium LED indicators Yes Certification CE, FCC, UL Product colour Black Power Power plug type Type N Power over Ethernet (PoE) voltage range 48 - 56 V Power over Ethernet (PoE) Yes Total Power over Ethernet (PoE) budget 90 W Operational conditions Operating temperature (T-T) -40 - 75 °C Storage temperature (T-T) -40 - 85 °C Operating relative humidity (H-H) 5 - 95% Weight & dimensions Width 32 mm Depth 82 mm Height 104 mm Weight 174 g Colour Product colour Black Endurance Mean time between failures (MTBF) 540891 h Certificates Certification CE, FCC, UL Management features Supported network protocols (IPv4) CSMA/CD Packaging content Quick start guide Yes Packaging data Package width 211 mm Package depth 162 mm Package height 64 mm Package weight 416 g Logistics data Master (outer) case width 355 mm Master (outer) case length 345 mm Master (outer) case height 225 mm Products per master (outer) case 10 pc(s) Harmonized System (HS) code 85176990 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
