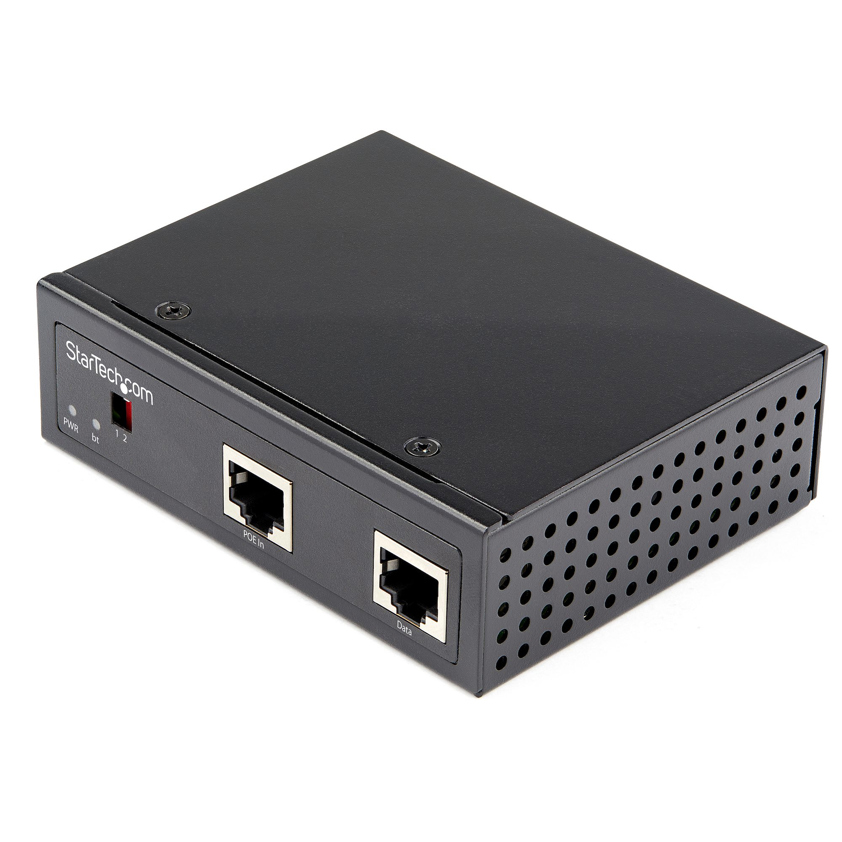

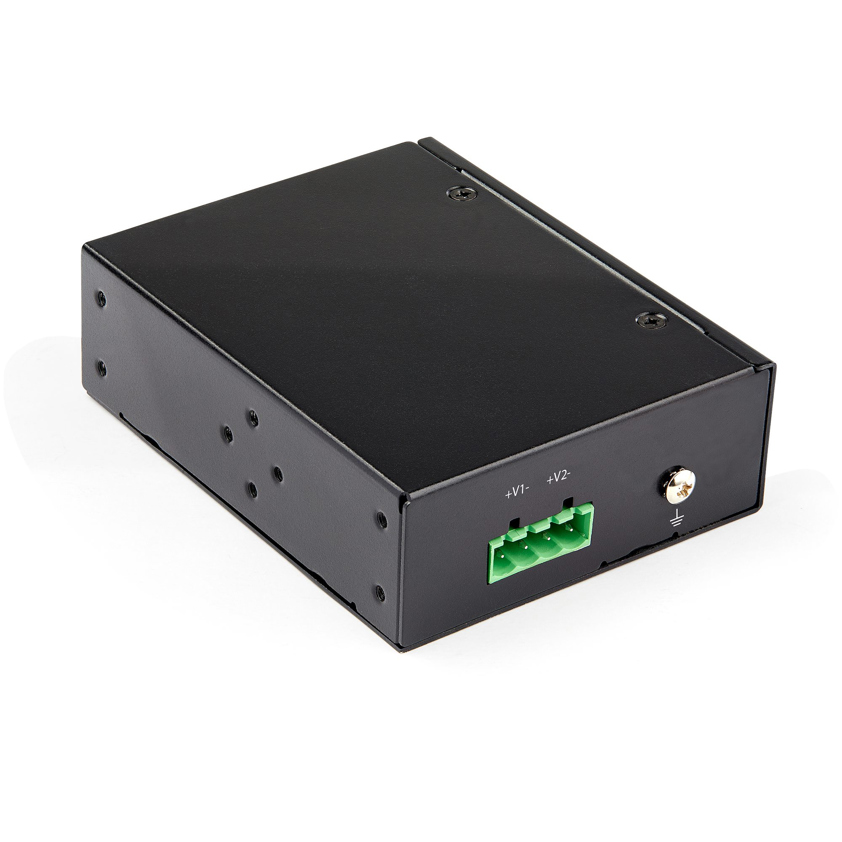

Rugged PoE Splitter | 12-48V DC | IP-30 Aluminum Housing | 1.5A Power Output

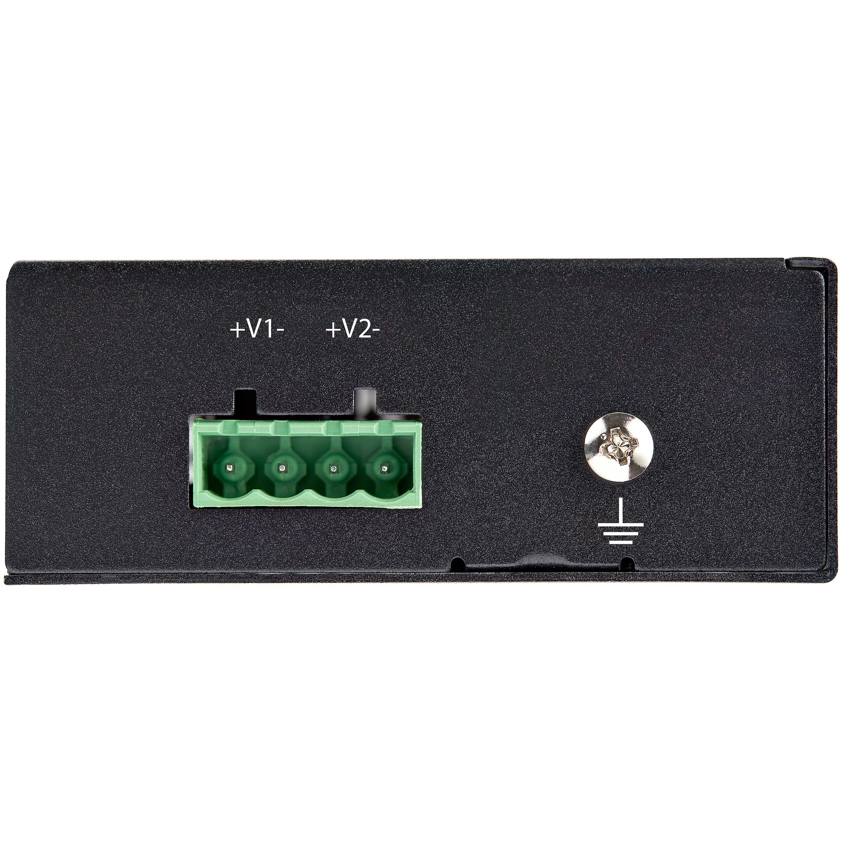

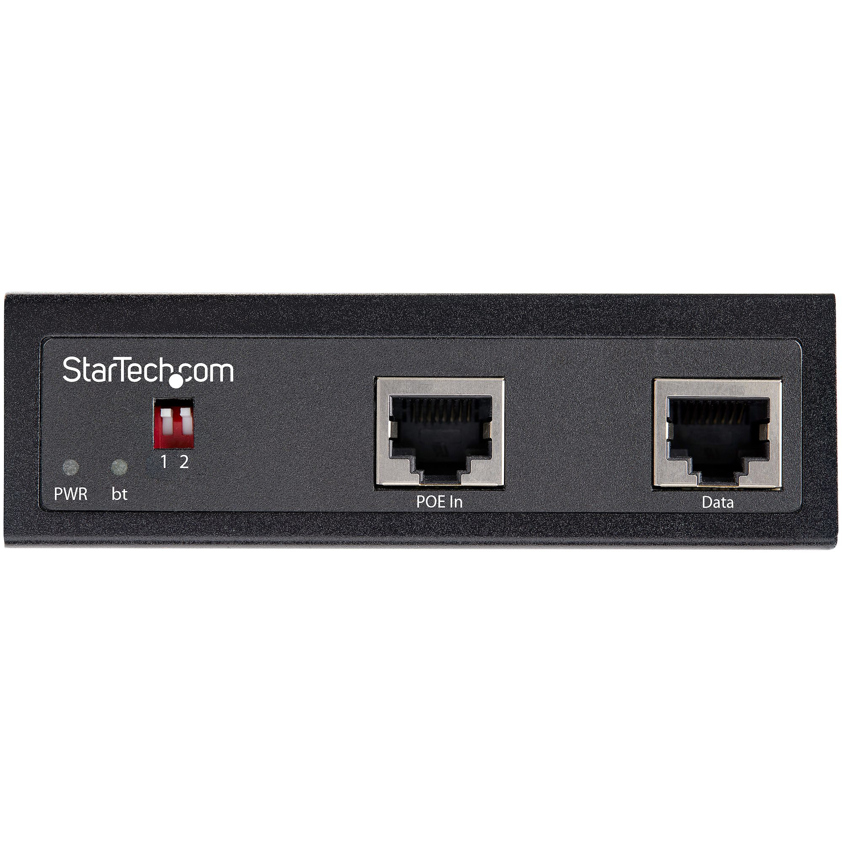

Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available.
Power Non-PoE Devices
Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include:
Security (card swipe or proximity boxes)
Environmental monitoring (temperature/moisture sensors)
Telco (analog interface systems/conversion)
Straightforward Deployment
Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A).
The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32
600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.
The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- HIGH POWER GIGABIT PoE SPLITTER: Power non-PoE devices using network infrastructure where power isn't available
- Splits PoE connection (max 90W) into RJ45 data & DC power (terminal block)
- 90W POE IEEE802.3bt: Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), IEEE 802.3bt (PoE++ / Type 3); power out configured w/ DIP switch for 12/16/24/48V DC (1.5A) via terminal block
StarTech.com Industrial Gigabit PoE Splitter - 90W High Speed Power over Ethernet PoE+++ Splitter - 12-48V DC Splitter 802.3bt - LAN/RJ45 Ultra PoE to DC Adapter - -40C to +75C
SKU: POESLT1G48V£108.65 ex VAT
£130.38 inc VAT
In stockNetwork Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u Duplex system Full Auto MDI/MDI-X Yes Power over Ethernet (PoE) Yes Ethernet LAN data rates 10,100,1000 Mbit/s Ethernet interface type Gigabit Ethernet Cabling technology 10/100/1000Base-T(X) Supported network protocols CSMA/CD Features Surge protection Yes Maximum operating distance 100 m Product colour Black Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u LED indicators Yes Certification CE, FCC, UL Ports & interfaces RJ-45 input ports 1 RJ-45 output ports 1 Power Output current 1.5 A Total Power over Ethernet (PoE) budget 90 W Technical details Package width 162 mm Package length 21.1 cm Power over Ethernet (PoE) Yes Ethernet LAN data rates 10,100,1000 Mbit/s Ethernet interface type Gigabit Ethernet Harmonized System (HS) code 85044095 Compliance certificates RoHS Operational conditions Storage temperature (T-T) -40 - 85 °C Operating temperature (T-T) -40 - 75 °C Operating relative humidity (H-H) 5 - 95% Weight & dimensions Package weight 392 g Package depth 64 mm Package width 162 mm Package length 21.1 cm Weight 150 g Width 81.5 mm Depth 104 mm Height 32 mm Packaging data Package weight 392 g Package depth 64 mm Package width 162 mm Package length 21.1 cm Packaging content Quick installation guide Yes Certificates Certification CE, FCC, UL Indication LED indicators Yes Logistics data Harmonized System (HS) code 85044095 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
