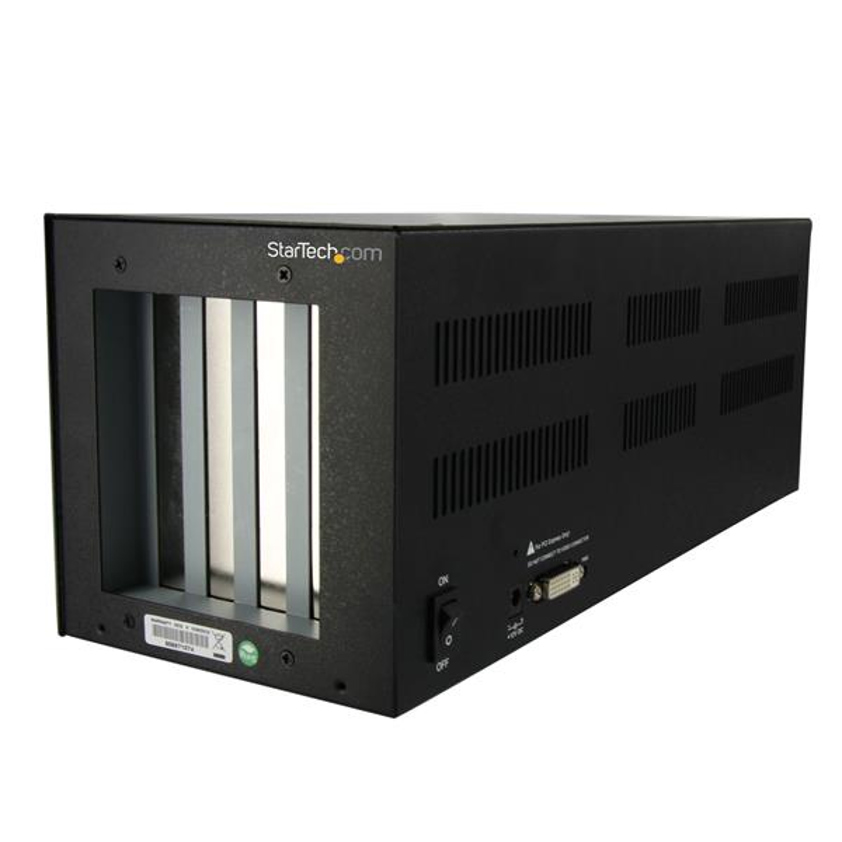

The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick and simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile and desktop setup is a cost-effective and time-saving solution for maximizing the I/O capabilities of your system.

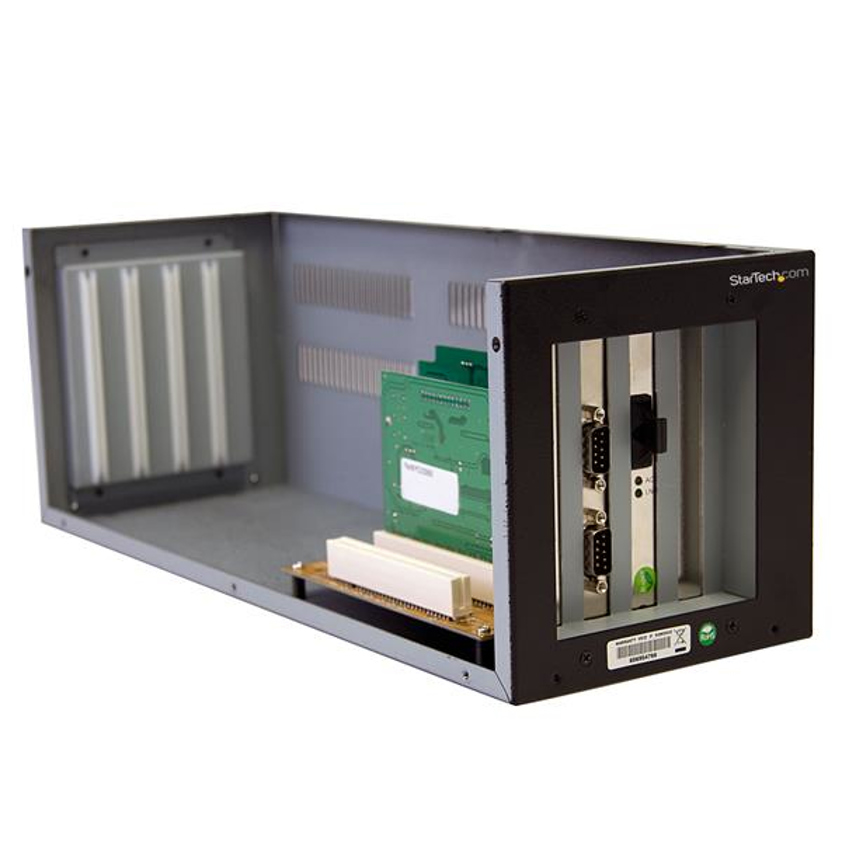

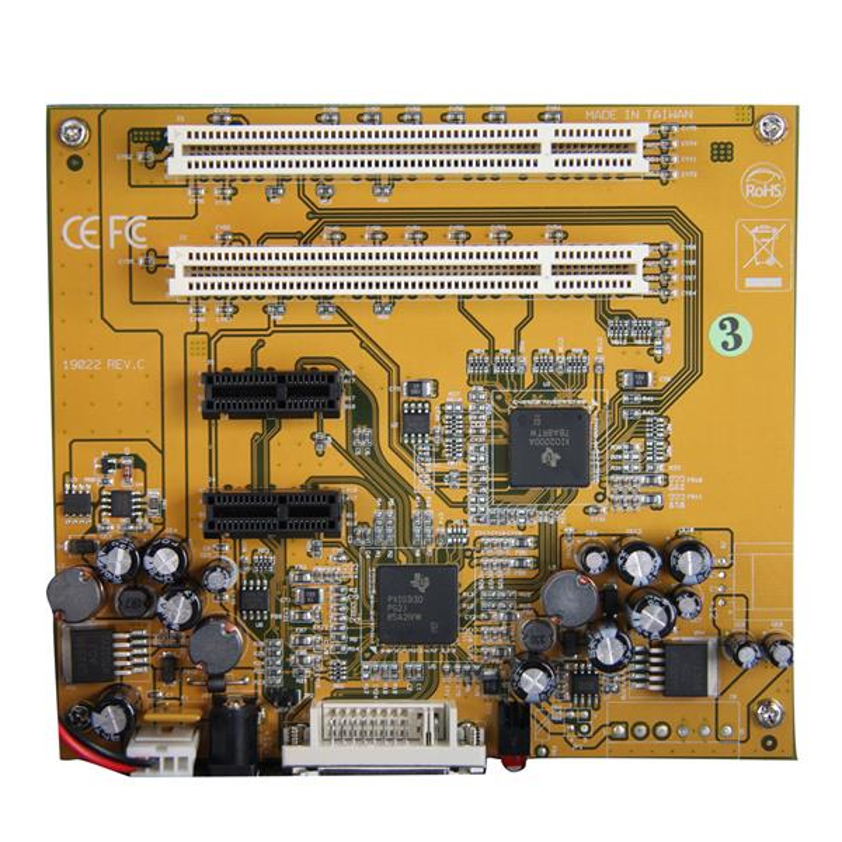

The external expansion chassis adds two full-length (38cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Control the power state of connected PCI/PCIe cards with the self-powered chassis and easily accessible on/off button

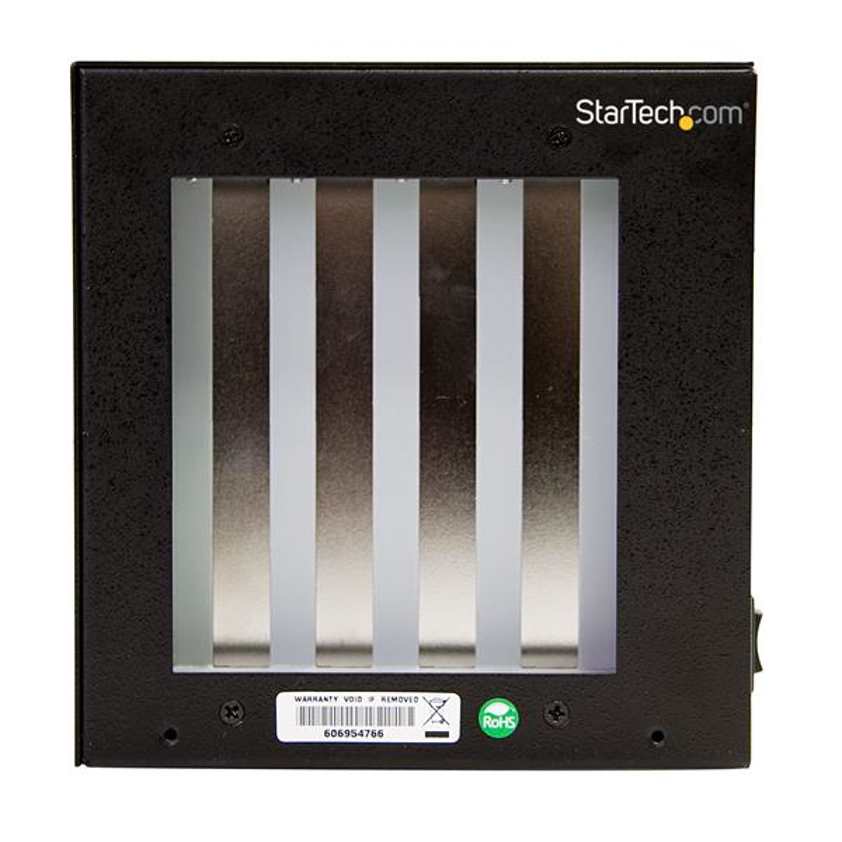

Install additional cards without opening your computer with the provided external expansion card slots
Easy installation and support for small form-factor computers with an included low-profile/half-height bracket
StarTech.com PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length
SKU: PEX2PCIE4L£344.51 ex VAT
£413.41 inc VAT

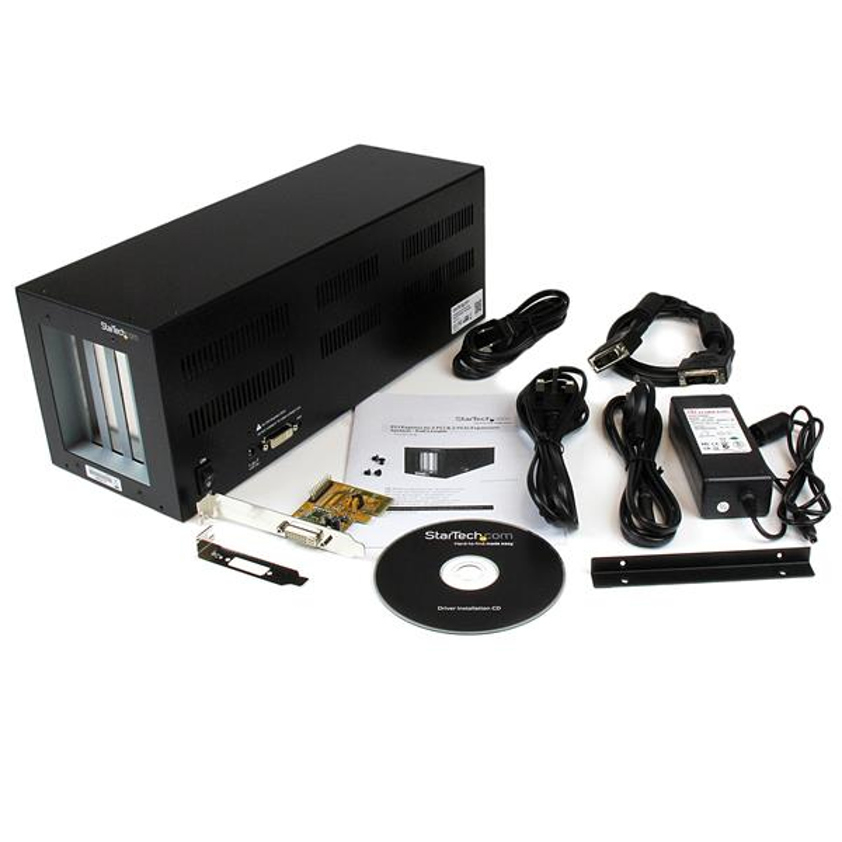

In stockTechnical details Cable length 0.9 m Network Data transfer rate 250 Mbit/s Performance Harmonized System (HS) code 84719000 Certificates Certification ROHS, CE, FCC Design Certification ROHS, CE, FCC Features Harmonized System (HS) code 84719000 Power Output voltage 12 V Output current 3 A Operational conditions Operating temperature (T-T) 0 - 55 °C Storage temperature (T-T) -40 - 75 °C Operating relative humidity (H-H) 5 - 95% Weight & dimensions Width 137 mm Depth 382 mm Height 143 mm Weight 2 kg Package width 208 mm Package depth 436 mm Package height 254 mm Package weight 2.1 kg Packaging data Manual Yes Package width 208 mm Package depth 436 mm Package height 254 mm Package weight 2.1 kg Cables included AC, DVI Logistics data Harmonized System (HS) code 84719000 Other features Data transfer rate 250 Mbit/s Ports quantity 4 Cable length 0.9 m Power requirements 115 - 230 AC Compatible operating systems Win 2000/XP/2003/ Vista Linux Mac OS X Packaging content Manual Yes Cables included AC, DVI Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
