Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot

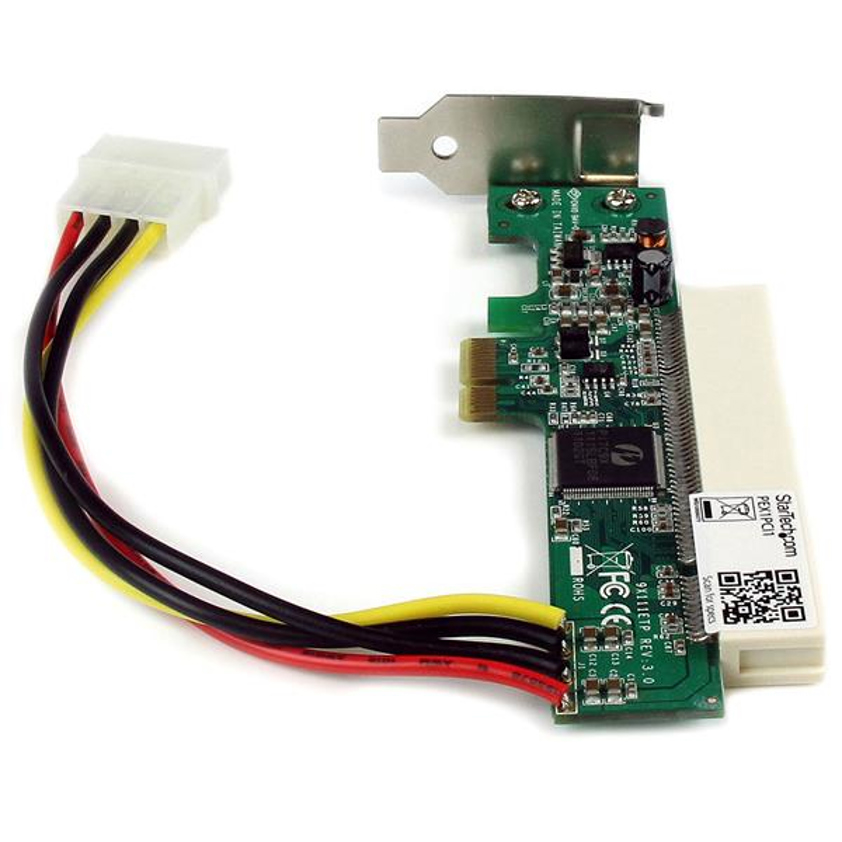

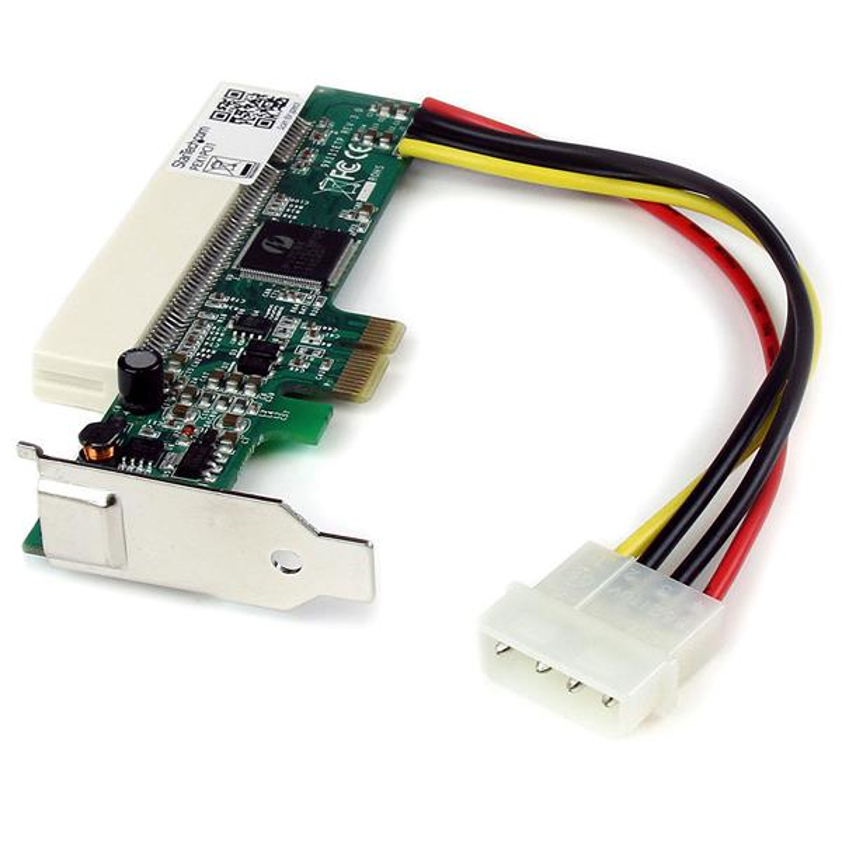

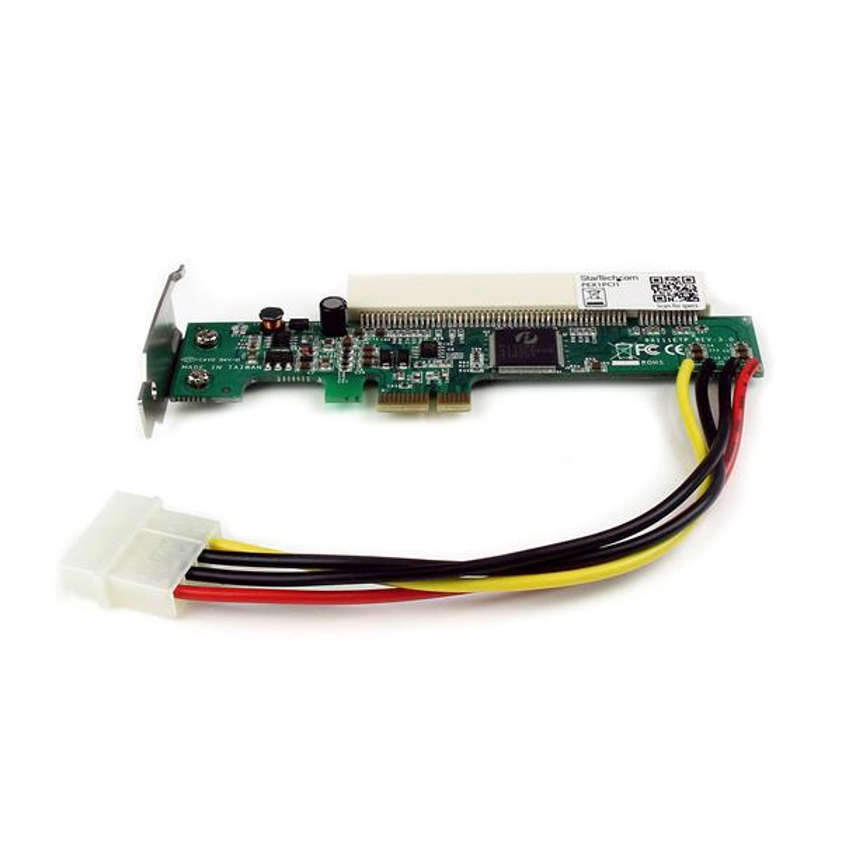

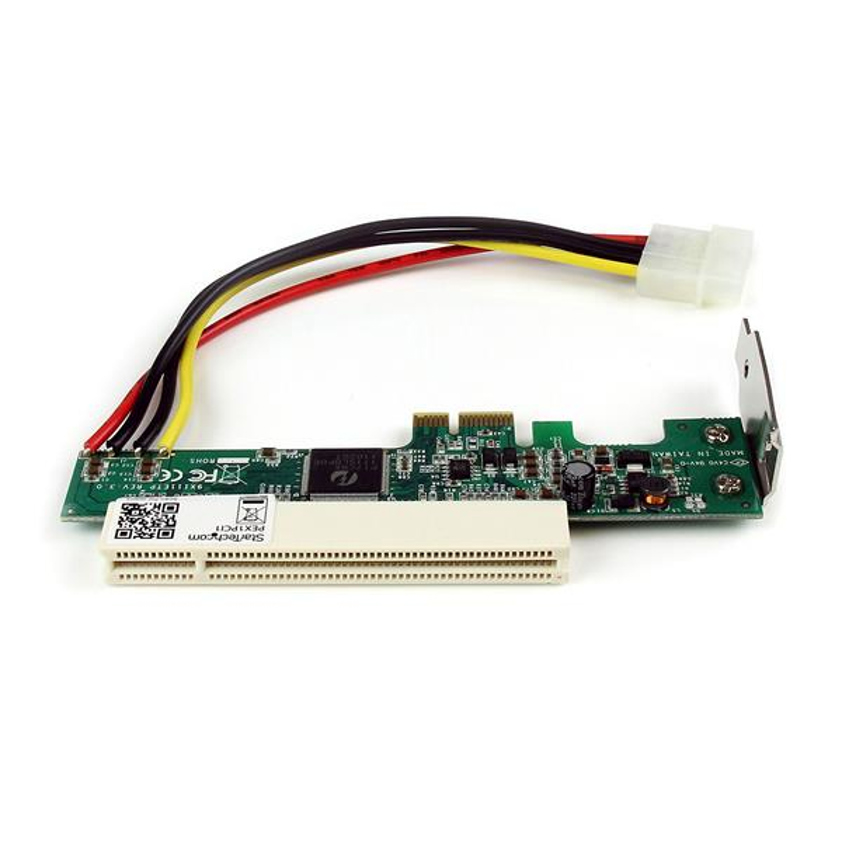

This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.
A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).
The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.
To ensure suitable installation, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.
The StarTech.com Advantage
StarTech.com PCI Express to PCI Adapter Card
SKU: PEX1PCI1£31.79 ex VAT
£38.14 inc VAT
In stockPorts & interfaces I/O ports 1x PCI 32-bit Output interface PCI 32-bit Host interface PCIe Technical details Chipset PERICOM PI7C9X110BNBE Performance Chipset PERICOM PI7C9X110BNBE Product colour Red Harmonized System (HS) code 84733020 Certificates Certification CE, FC, ROHS Colour Product colour Red Design Product colour Red Certification CE, FC, ROHS Features Chipset PERICOM PI7C9X110BNBE Harmonized System (HS) code 84733020 Operational conditions Operating temperature (T-T) 0 - 85 °C Weight & dimensions Width 70 mm Depth 135 mm Height 20 mm Weight 52 g Package width 175 mm Package depth 144 mm Package height 32 mm Package weight 121 g Packaging data Package width 175 mm Package depth 144 mm Package height 32 mm Package weight 121 g Logistics data Harmonized System (HS) code 84733020 Other features Ports quantity 1 Platform PC Connectivity technology Wired Form factor LP/ST Power requirements 3.3V Mac compatibility No Compatible operating systems Windows 2000/XP/Vista I/O ports 1x PCI 32-bit Chipset PERICOM PI7C9X110BNBE Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
