PCI-Express 2.0 | RS-232 Serial | IEEE 1284 Parallel | Lifetime Warranty

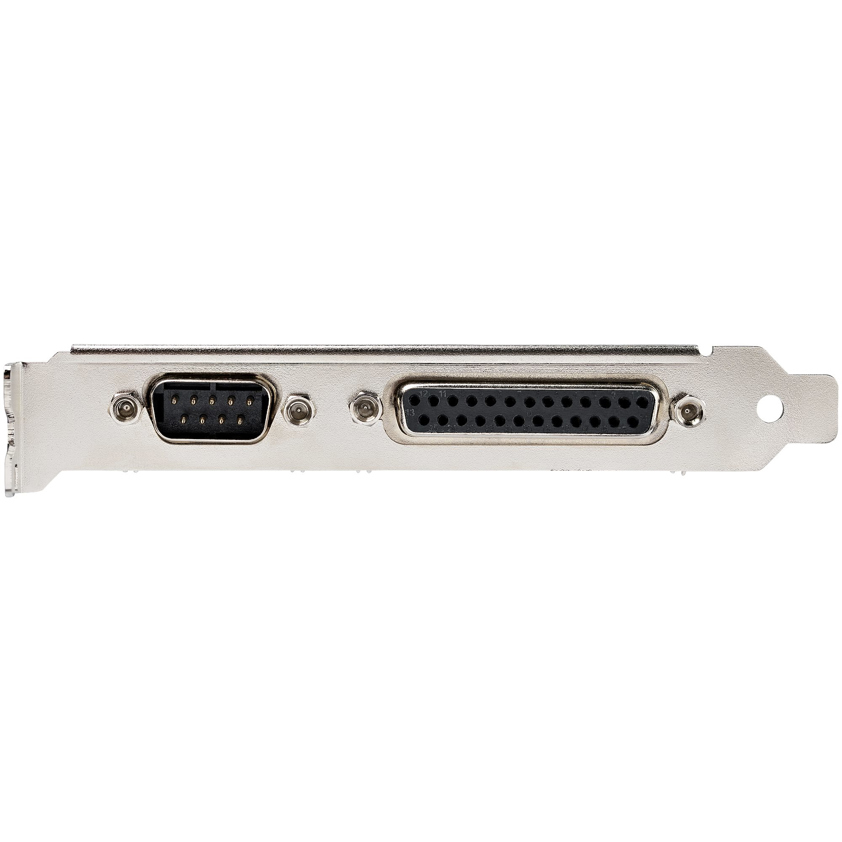

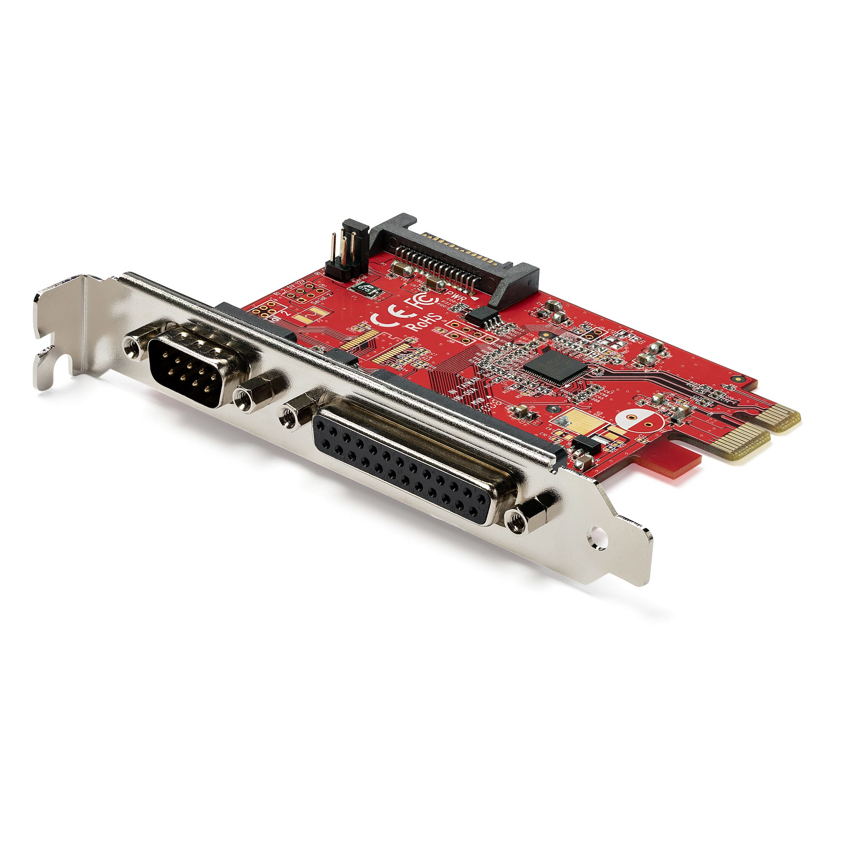

This PCIe Parallel and Serial Combo Card installs into a single PCI-Express x1 slot in your computer, and adds a DB25 IEEE 1284 parallel port and DB9 RS 232 serial port to your system. The PEX1S1P950 is the latest version of our popular PEX1S1P952 combo card.
Adds an LPT Parallel Port

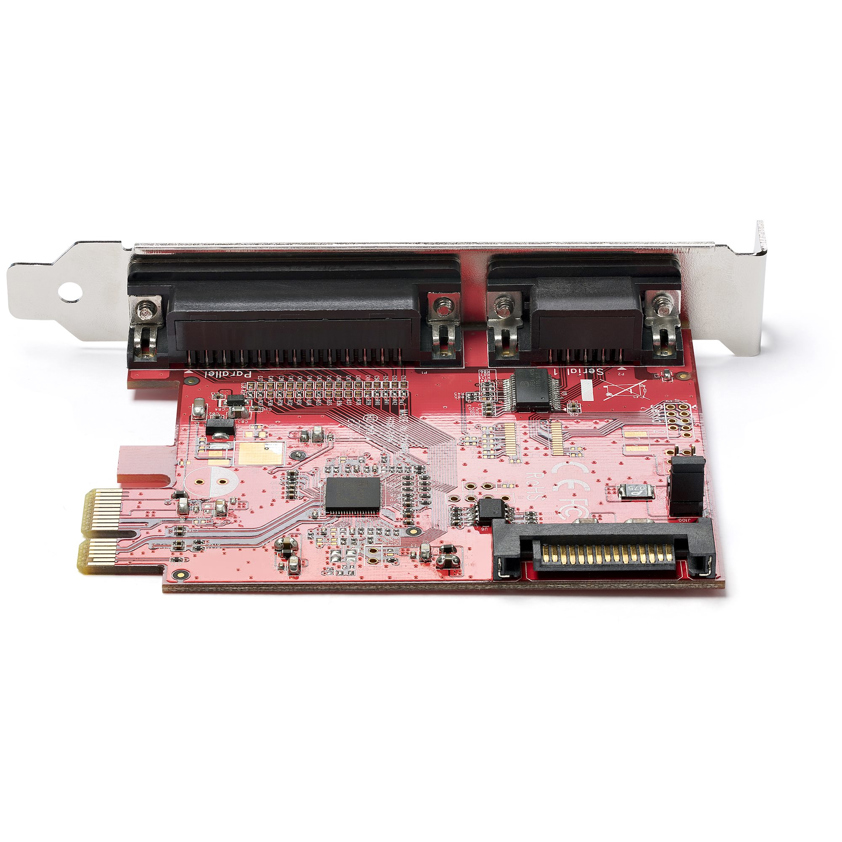

The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.
Adds a COM Serial Port

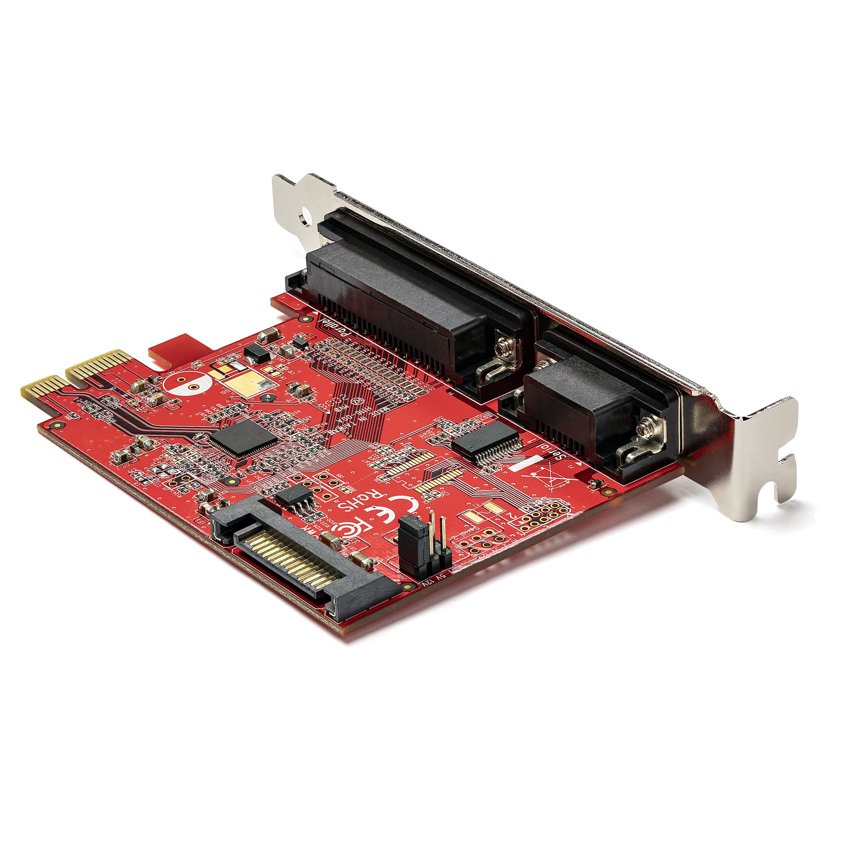

The Asix AX99100 chip also enables you to connect a DB9 device using the same controller card, compatible with industry standard 16950 UART. The serial port is ideal for connecting point of sale terminals, serial printers, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners and oscilloscopes. The serial (COM) port supports bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit. The card also features an optional SATA power input that enables you to add power to pin 9 on the serial port, and adjusted the power output between 5V and 12V using a jumper on the PCB.
Wide Installation Compatibility
This add-on card installs in a full/standard-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (7 or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher).
PEX1S1P950 is backed by a StarTech.com lifetime warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.
The StarTech.com Advantage
- PCIe CARD WITH SERIAL & PARALLEL PORT: Using a x1 PCIe 2.0 slot, add a DB25 parallel & a DB9 RS232 port to your computer; Card installs in full/standard profile PCIe slot; Latest version of our popular PEX1S1P952
- TECH SPECS: Parallel Speeds up to 2.5Mbps
- Supports SPP/Byte/ECP modes
StarTech.com PCIe Card with Serial and Parallel Port - PCI Express Combo Adapter Card with 1x DB25 Parallel Port & 1x RS232 Serial Port - Expansion/Controller Card - PCIe Printer Card
SKU: PEX1S1P950£33.05 ex VAT
£39.66 inc VAT
In stockPorts & interfaces Internal Yes Output interface Parallel, Serial Serial interface type RS-232 Serial ports quantity 1 Parallel ports quantity 1 Host interface PCIe Expansion card standard PCIe 2.0 Technical details Chipset Asix - AX99100 FIFO (First In, First Out) 256 B Compliance certificates CE, RoHS Network Data transfer rate 2.5 Mbit/s Performance Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8, 9 Baud rate 921.6 Kbit/s Chipset Asix - AX99100 FIFO (First In, First Out) 256 B Product colour Red Harmonized System (HS) code 84733020 Colour Product colour Red Design Mean time between failures (MTBF) 3188058 h Internal Yes Product colour Red Features Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8, 9 Baud rate 921.6 Kbit/s Chipset Asix - AX99100 FIFO (First In, First Out) 256 B Parity bit Even, Mark, No, Odd, Space Flow Control type No, RTS/CTS, XON/XOFF Harmonized System (HS) code 84733020 Operational conditions Operating temperature (T-T) -40 - 85 °C Storage temperature (T-T) -40 - 85 °C Operating relative humidity (H-H) 15 - 90% System requirements Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Linux operating systems supported Yes Server operating systems supported Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 Weight & dimensions Width 95 mm Depth 80 mm Height 22 mm Weight 63 g Package width 170 mm Package depth 142 mm Package height 30 mm Package weight 127 g Packaging data Package width 170 mm Package depth 142 mm Package height 30 mm Package weight 127 g Logistics data Products per master (outer) case 60 pc(s) Master (outer) case width 380 mm Master (outer) case length 500 mm Master (outer) case height 310 mm Harmonized System (HS) code 84733020 Other features Data transfer rate 2.5 Mbit/s Chipset Asix - AX99100 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
