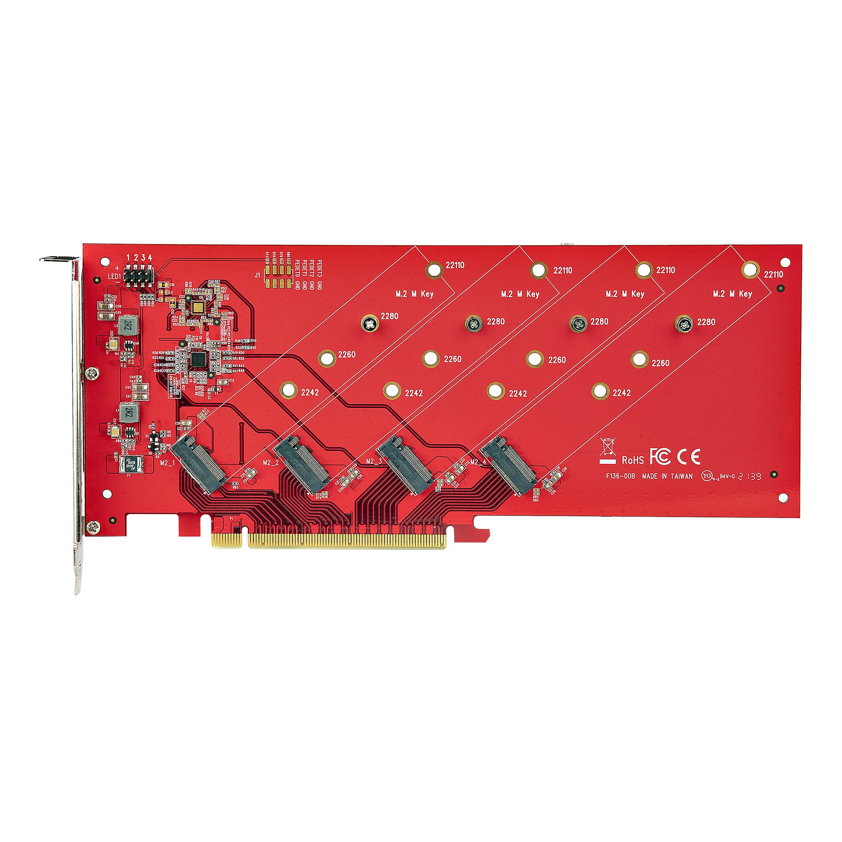

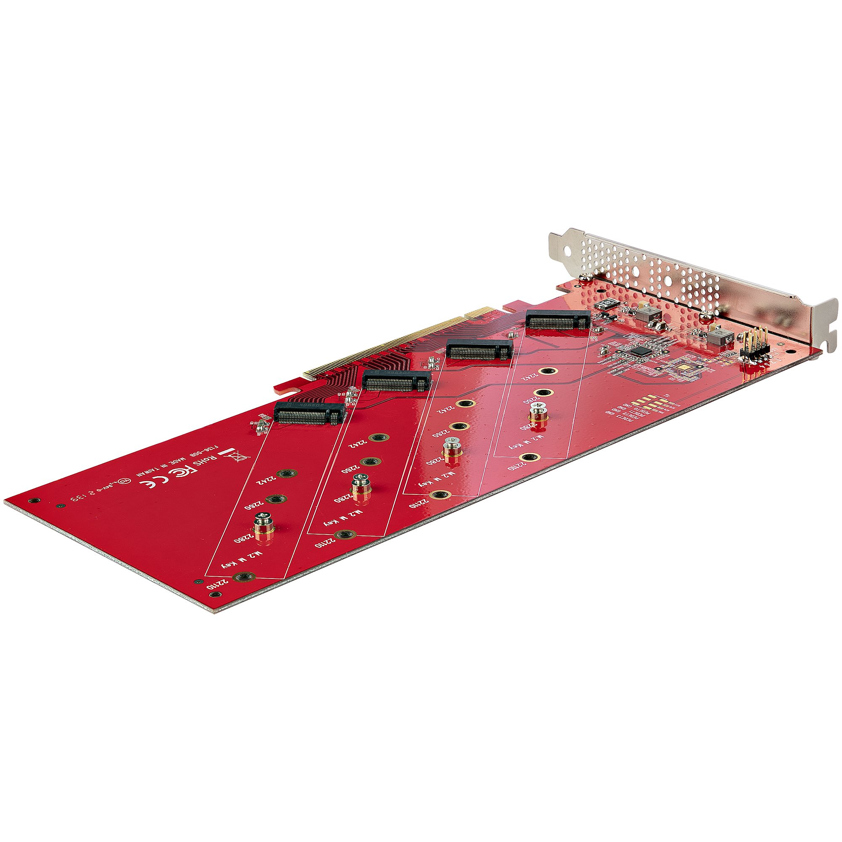

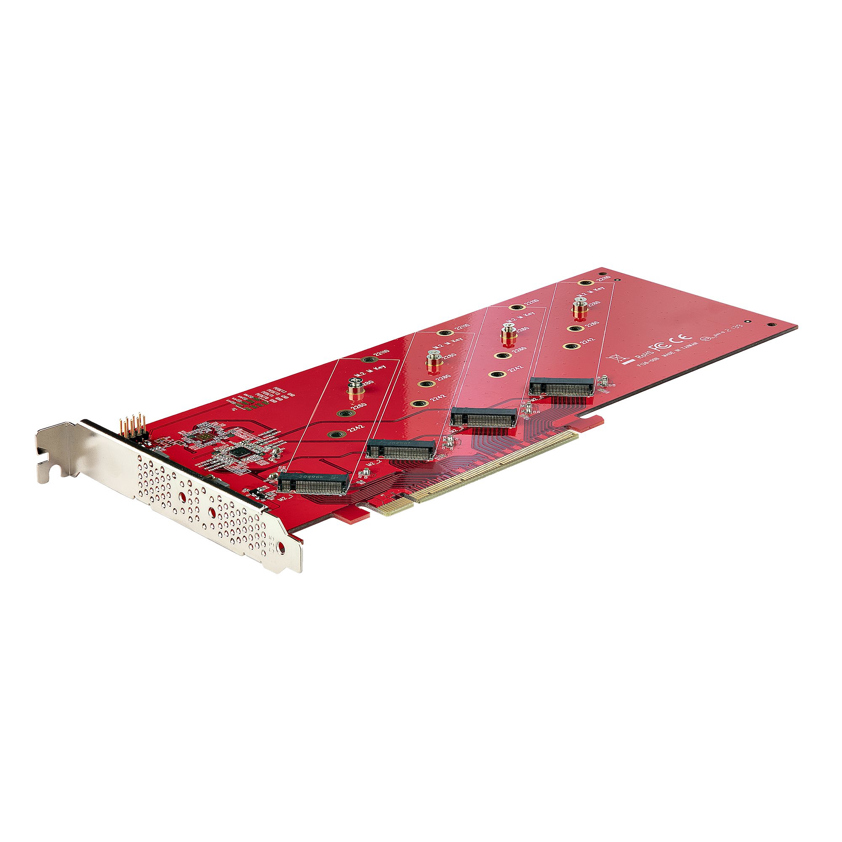

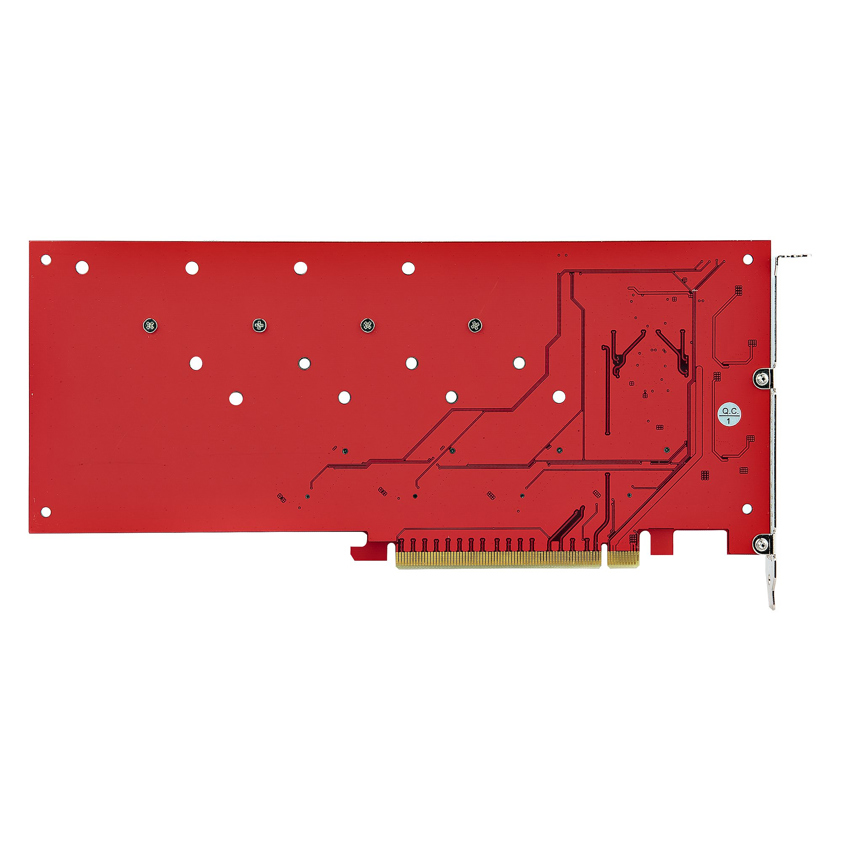

Quad M.2 NVMe / AHCI | PCIe 4.0 x16 Slot | Bifurcation

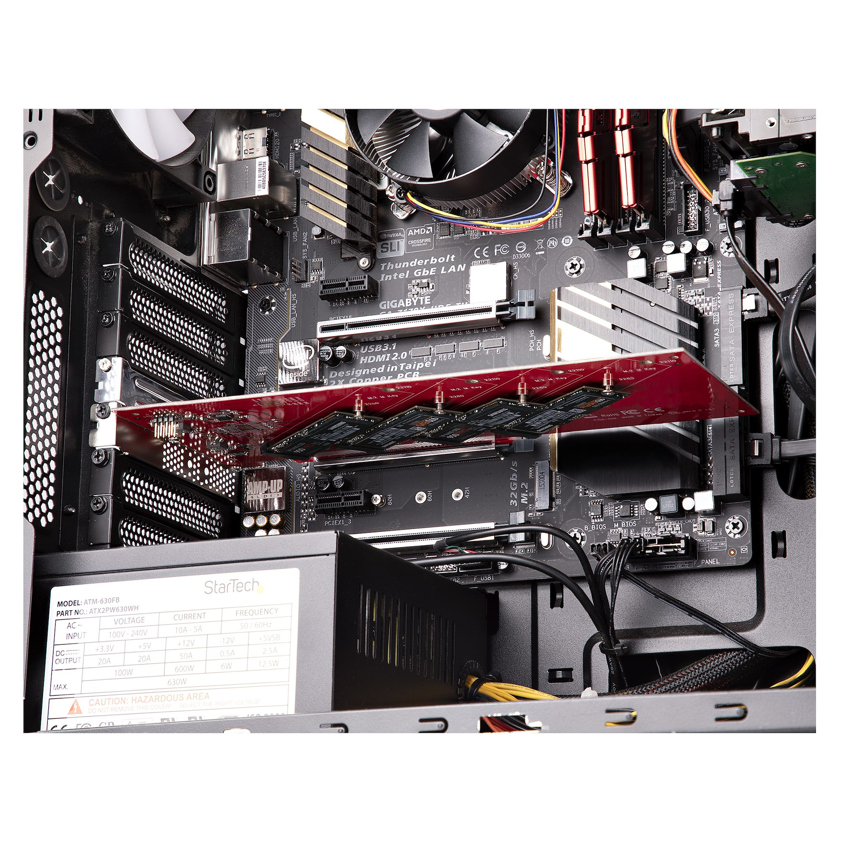

This Quad M.2 PCIe SSD Adapter adds up to four high performance PCIe M.2 SSDs (NVMe and AHCI) using the PCIe x16 slot of a desktop, workstation, or server.
Boost System Performance
Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.

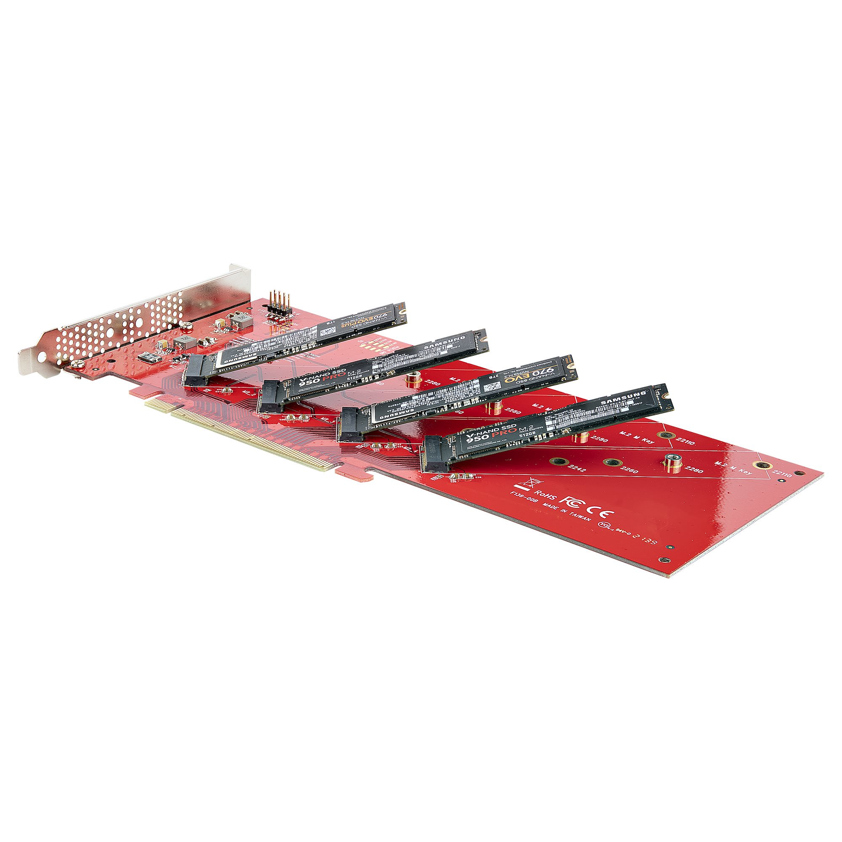

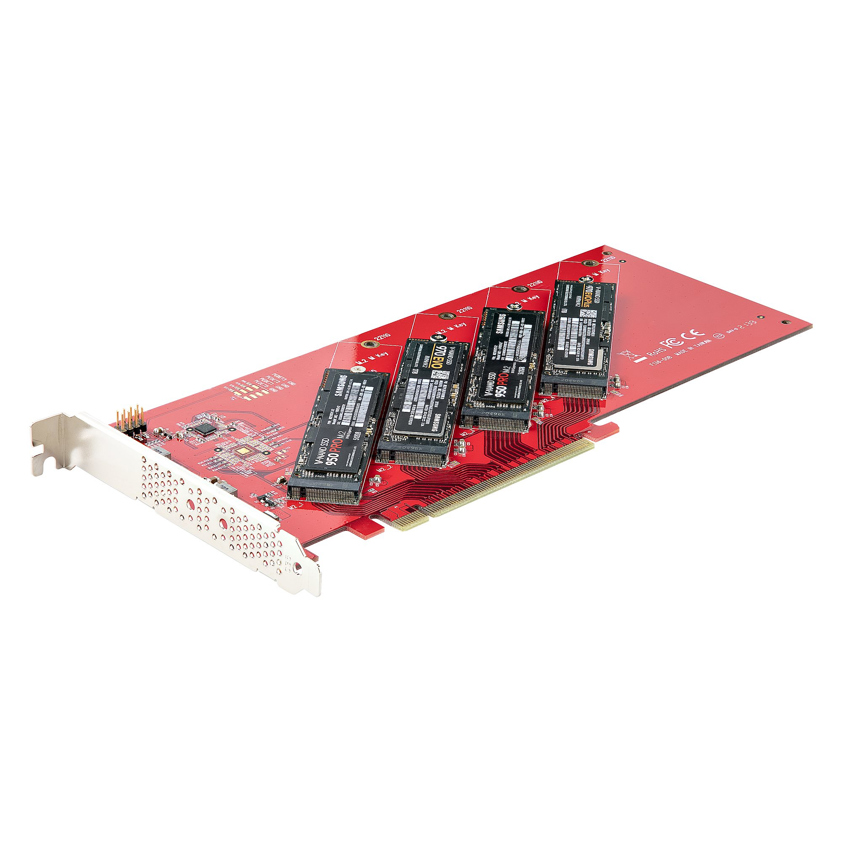

Access Four M.2 PCIe SSDs Simultaneously
No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x16 PCIe slot that supports PCIe bifurcation.
Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.
Wide Compatibility
The PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M.2 Adapter Card does not require any software or drivers, meaning it works with most operating systems - if the computer/motherboard supports bifurcation.
Vented Brackets
The pre-installed full-profile vented bracket increases air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.
The QUAD-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance
The StarTech.com Advantage
StarTech.com Quad M.2 PCIe Adapter Card, PCIe x16 to Quad NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required, Windows/Linux Compatible
SKU: QUAD-M2-PCIE-CARD-B£112.64 ex VAT
£135.17 inc VAT
Low stockPorts & interfaces Internal Yes Output interface M.2 Host interface PCIe Number of M.2 (M) slots 4 Expansion card standard PCIe 4.0 Technical details Plug and Play Yes Data transfer rate (max) 7.8 Gbit/s Performance Plug and Play Yes Data transfer rate (max) 7.8 Gbit/s Product colour Red Colour Product colour Red Design Mean time between failures (MTBF) 4353192 h Internal Yes Product colour Red LED indicators Yes Features Plug and Play Yes Data transfer rate (max) 7.8 Gbit/s Operational conditions Operating temperature (T-T) -40 - 80 °C Storage temperature (T-T) -40 - 85 °C Operating relative humidity (H-H) 15 - 90% Weight & dimensions Width 290 mm Depth 170 mm Height 30 mm Weight 150 g Package width 290 mm Package depth 120 mm Package height 30 mm Package weight 150 g Packaging data Package width 290 mm Package depth 120 mm Package height 30 mm Package weight 150 g Quick installation guide Yes Screws included Yes Logistics data Products per master (outer) case 30 pc(s) Master (outer) case width 380 mm Master (outer) case length 500 mm Master (outer) case height 310 mm Packaging content Quick installation guide Yes Screws included Yes Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
