SATA III (6Gbps) | PCI Express 2.0 | PCIe x2 Slot | 10x SATA Connectors | 2-Year Warranty
This 10-port SATA III (6Gbps) controller enables you to add 10 SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.

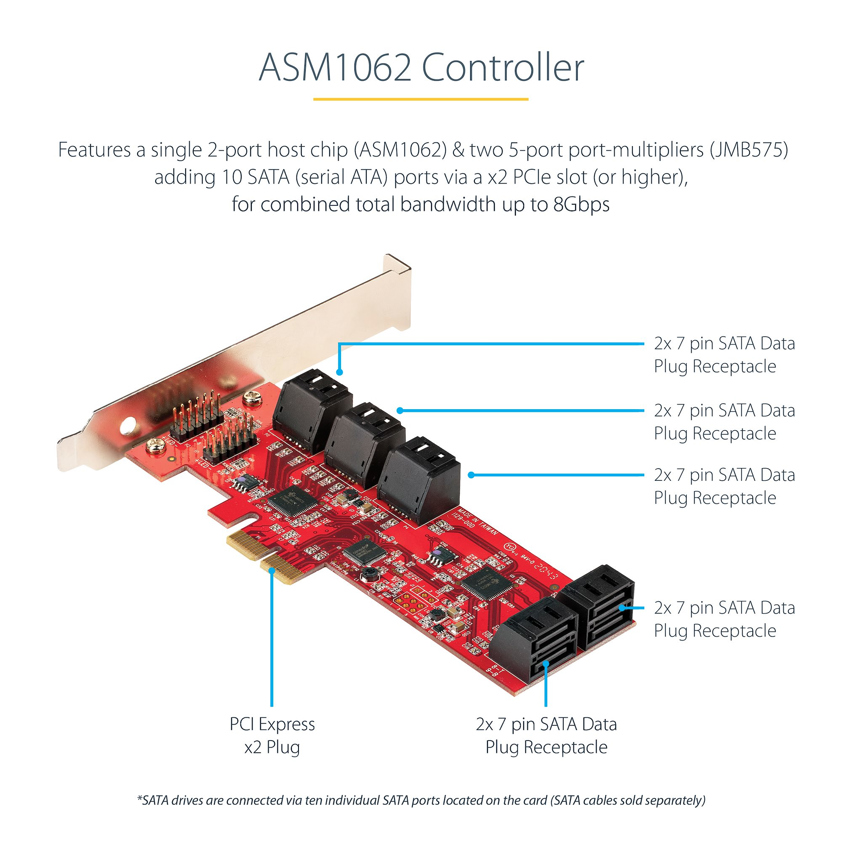

ASM1062 to Deliver 10-Port SATA 6Gbps Performance

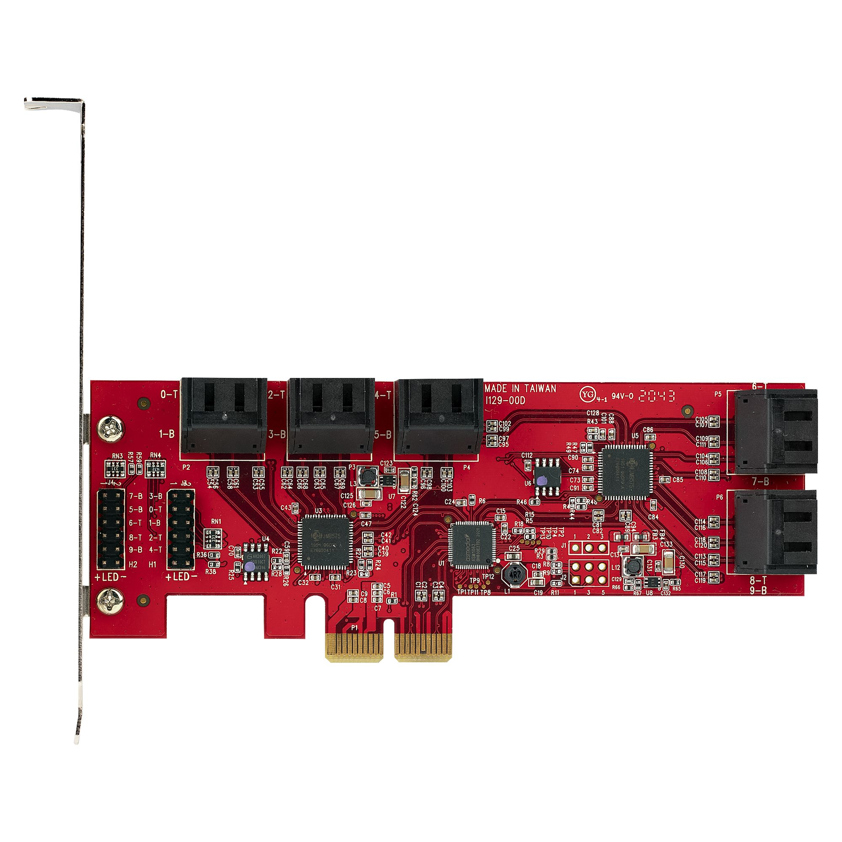

Featuring the ASM1062 controller, this SATA card enables the connection of 10 high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via ten individual SATA ports located on the card (SATA cables sold separately).
Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7,8,10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.
Hassle-Free Installation

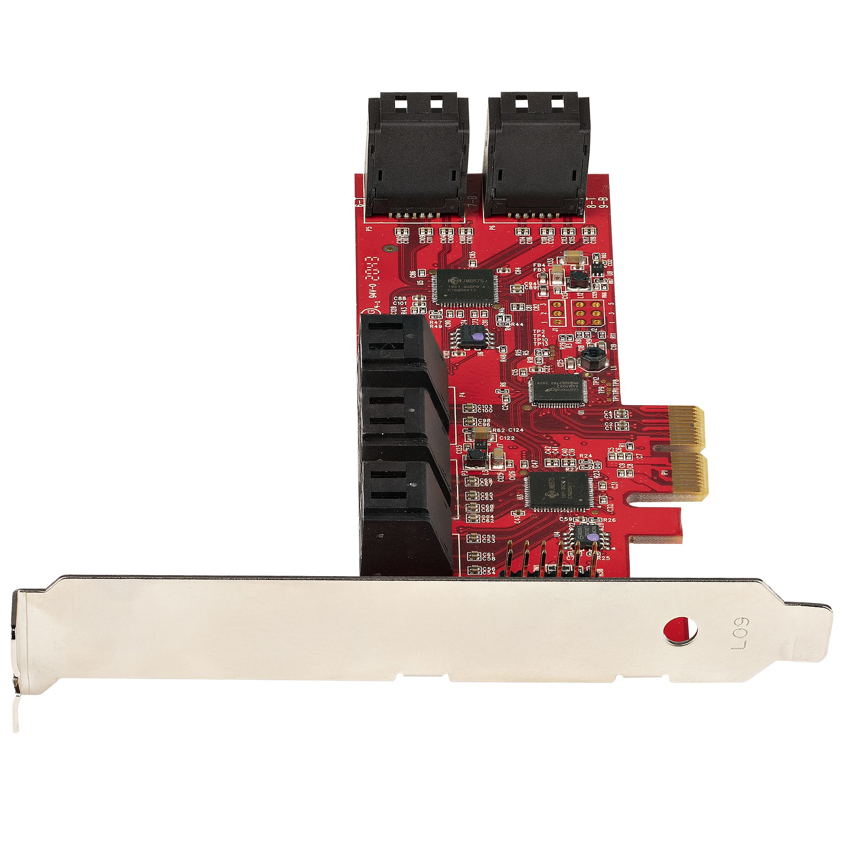

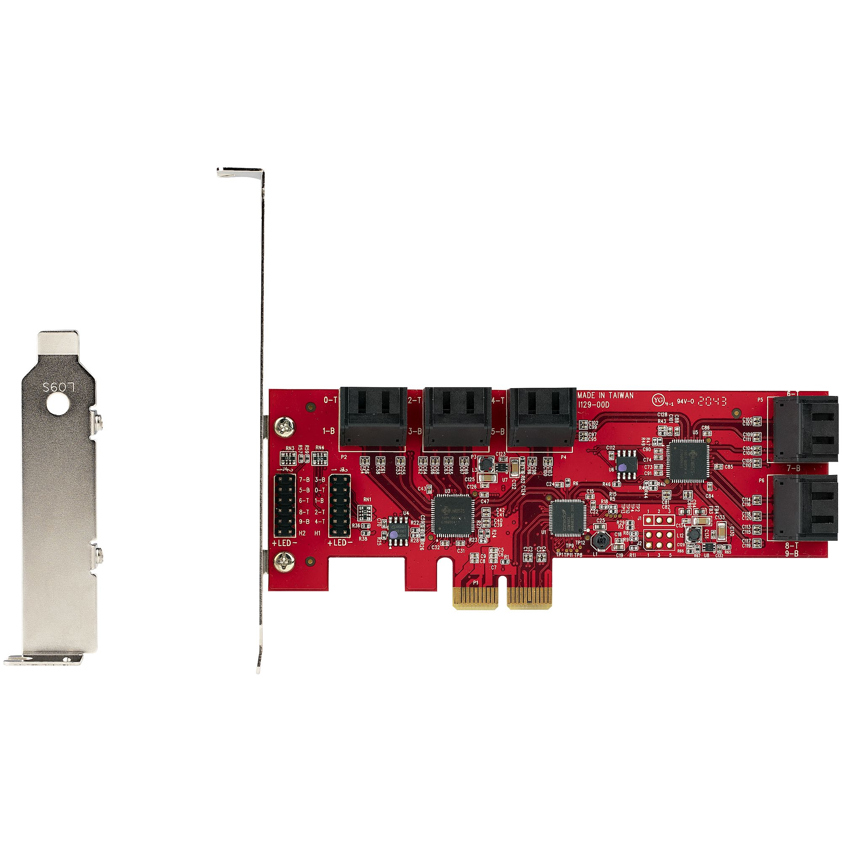

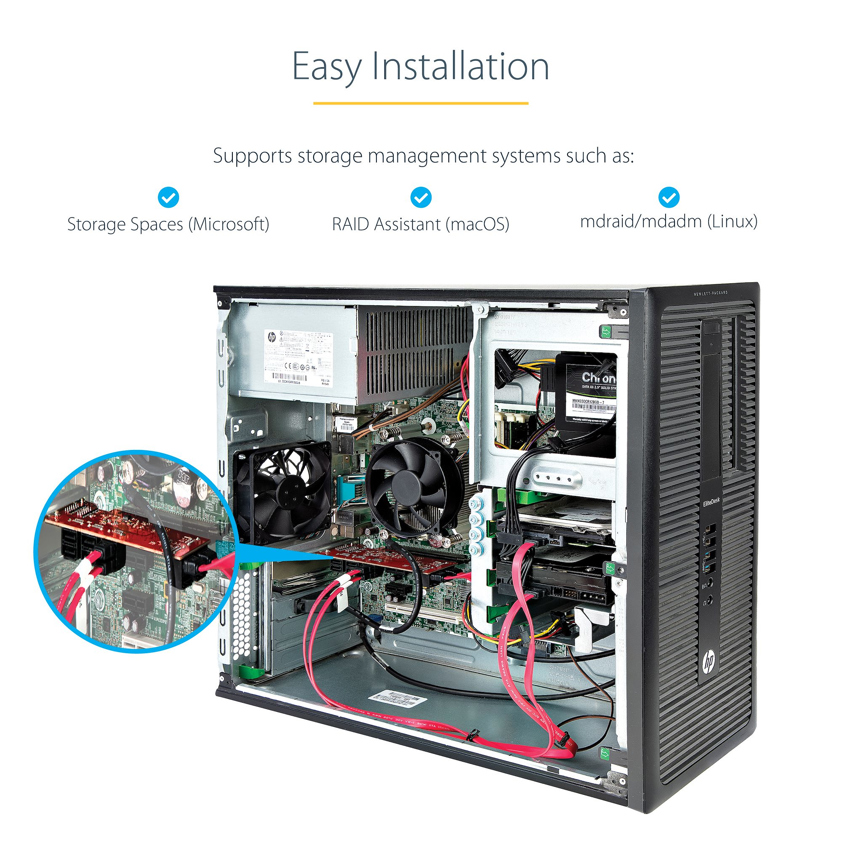

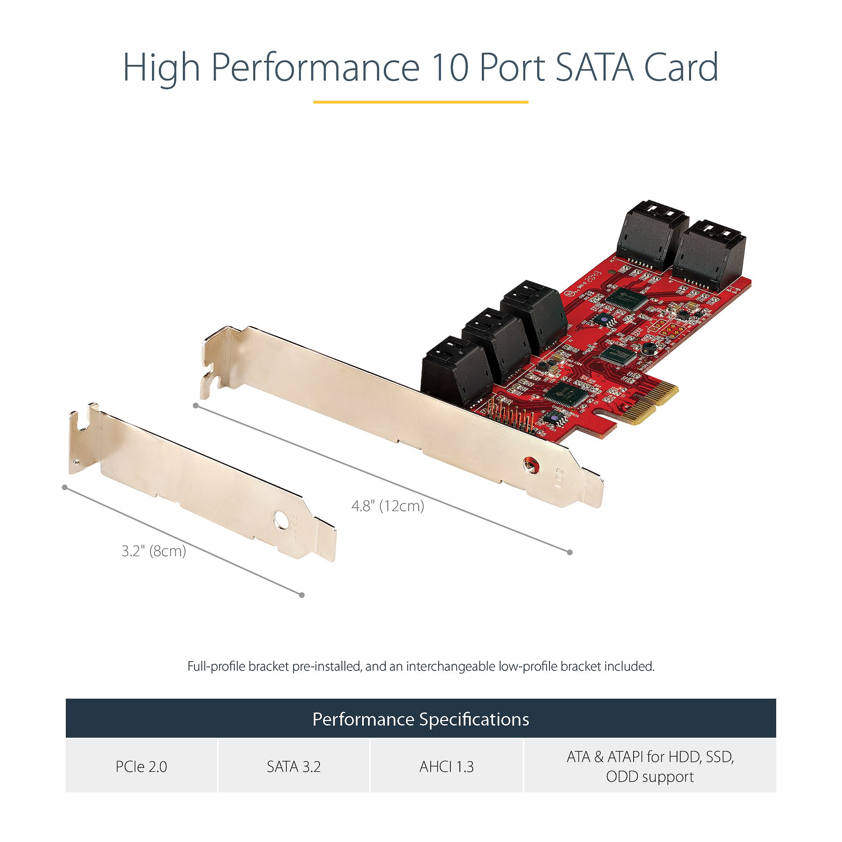

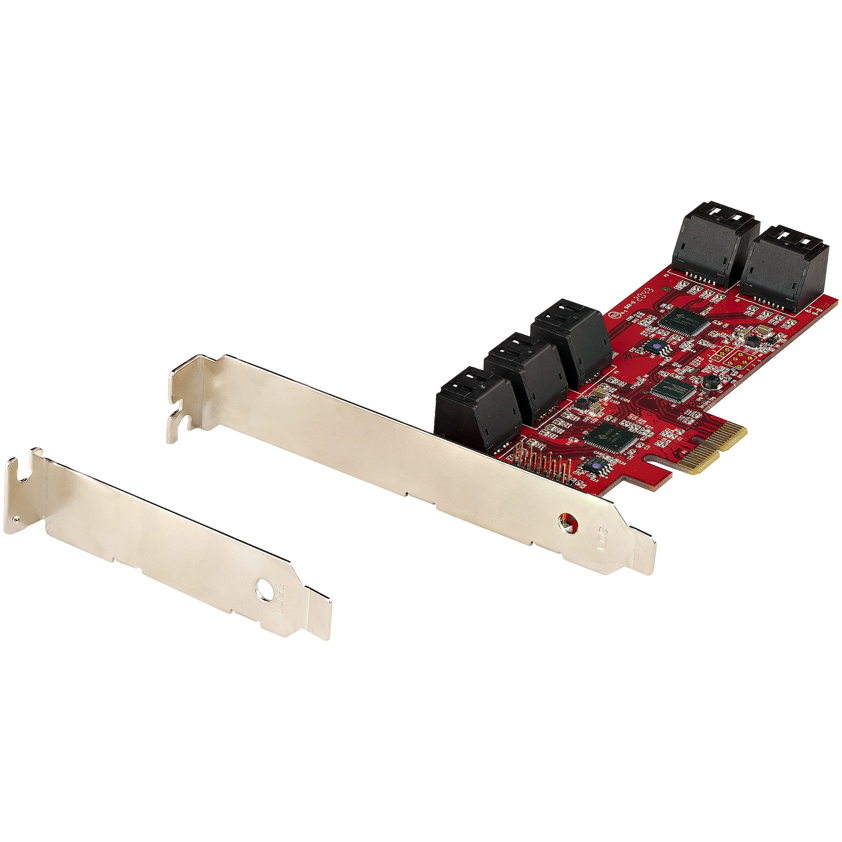

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
10P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.
The StarTech.com Advantage
StarTech.com SATA PCIe Card - 10 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1062 Non-Raid - PCI Express to SATA Converter/Adapter
SKU: 10P6G-PCIE-SATA-CARD£80.98 ex VAT
£97.18 inc VAT
Low stockPorts & interfaces Internal Yes Port multiplier Yes Output interface SATA Internal SATA ports quantity 10 Host interface PCIe Expansion card standard PCIe 2.0 Technical details Chipset ASMedia - ASM1062 Data transfer rate (max) 6 Gbit/s Compliance certificates CE, RoHS Performance Port multiplier Yes Chipset ASMedia - ASM1062 Data transfer rate (max) 6 Gbit/s Product colour Red TRIM support Yes S.M.A.R.T. support Yes Harmonized System (HS) code 84733020 Colour Product colour Red Design Internal Yes Product colour Red Features Chipset ASMedia - ASM1062 Data transfer rate (max) 6 Gbit/s TRIM support Yes S.M.A.R.T. support Yes Harmonized System (HS) code 84733020 Operational conditions Operating temperature (T-T) 0 - 85 °C Storage temperature (T-T) -25 - 85 °C Operating relative humidity (H-H) 20 - 80% System requirements Windows operating systems supported Windows 7 Ultimate x64, Windows 10, Windows 7 x64, Windows 10 Education, Windows 8, Windows 10 Education x64, Windows 7, Windows 8 Enterprise, Windows 10 Enterprise, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows 10 Enterprise x64, Windows 7 Enterprise x64, Windows 8 Pro, Windows 10 Home, Windows 7 Home Basic, Windows 8 Pro x64, Windows 10 Home x64, Windows 7 Home Basic x64, Windows 8 x64, Windows 10 IOT Core, Windows 7 Home Premium, Windows 8.1, Windows 10 IoT Enterprise, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 10 Pro, Windows 7 Professional, Windows 8.1 Enterprise x64, Windows 10 Pro x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10 x64, Windows 7 Starter, Windows 8.1 Pro x64, Windows 11, Windows 7 Starter x64, Windows 8.1 x64, Windows 11 x64, Windows 7 Ultimate Mac operating systems supported Mac OS X 10.13 High Sierra, Mac OS X 11.0 Big Sur, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.10 Yosemite, Mac OS X 10.15.3 Catalina, Mac OS X 10.11 El Capitan, Mac OS X 13.0 Ventura Linux operating systems supported Yes Server operating systems supported Windows Server 2019, Windows Server 2012 R2, Windows Server 2016 Weight & dimensions Width 54 mm Depth 139 mm Height 16 mm Weight 75 g Package width 142 mm Package depth 175 mm Package height 30 mm Package weight 120 g Packaging data Mounting brackets included Yes Package width 142 mm Package depth 175 mm Package height 30 mm Package weight 120 g Quick installation guide Yes Logistics data Products per master (outer) case 60 pc(s) Master (outer) case width 500 mm Master (outer) case length 370 mm Master (outer) case height 310 mm Harmonized System (HS) code 84733020 Packaging content Mounting brackets included Yes Quick installation guide Yes Other features Chipset ASMedia - ASM1062 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
