  • StarTech.com Secure 4-Port Dual-Monitor KVM Switch, DisplayPort, 4K 30Hz, NIAP 4.0 Desktop KVM, Metal Housing, Made in the USA

StarTech.com Secure 4-Port Dual-Monitor KVM Switch, DisplayPort, 4K 30Hz, NIAP 4.0 Desktop KVM, Metal Housing, Made in the USA

SKU: CK4-P204
£1,058.14 ex VAT
£1,269.77 inc VAT
Product out of stockOut of stock
  • Control multiple computers with a single set of peripherals while isolating data paths between systems and ensuring no data is ever stored

    Operate multiple secure systems from a single workstation with the NIAP certified dual-monitor KVM switch, delivering uncompromising security, enterprise-grade performance, and seamless control over up to four computers with two 4K 30Hz displays.

    NIAP Certified Multi-System Control

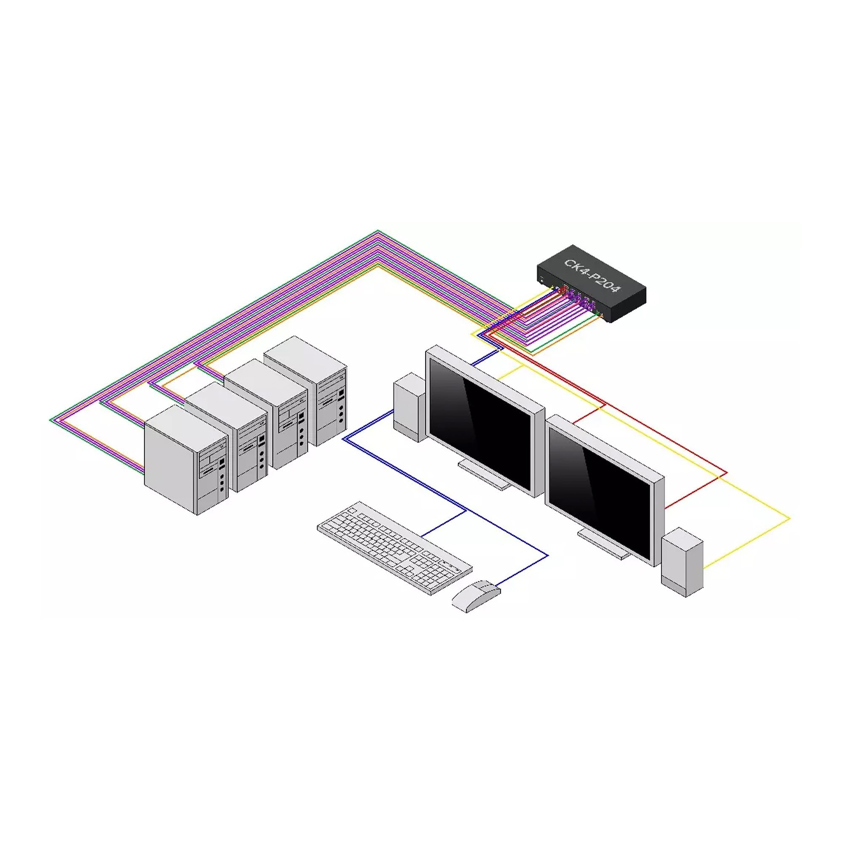

    Manage up to four DisplayPort-enabled desktops, workstations, or servers from one mouse, keyboard, and two 4K 30Hz monitors. Status LEDs on the console ports and port selection indicators provide instant visual feedback, while NIAP certification ensures complete system isolation to prevent any data transfer or leakage between connected systems. Integrated anti-tamper switches provide protection from the moment the unit leaves the factory, so any intrusion attempt, whether in storage, transit, or operation, will permanently disable the KVM and trigger clear visual and audible alerts. This makes it ideal for safeguarding operations across security domains or ensuring compliance with strict regulatory requirements.

    This secure KVM complies with the following protection profiles and modules:

    • Protection Profile for Peripheral Sharing Device (PSD), Version 4.0
    • PP-Module for Analog Audio Output Devices, Version 1.0
    • PP-Module for User Authentication Devices, Version 1.0
    • PP-Module for Keyboard/Mouse Devices, Version 1.0
    • PP-Module for Video/Display Devices, Version 1.0

    Anti-Tamper Switches

    The advanced Tamper Protection System uses anti-tamper switches to detect physical intrusion attempts, immediately disabling all functionality and triggering visual and audible alerts, while a tamper-evident seal provides clear indication of unauthorized physical access.

    Enterprise-Grade Security and Reliability

    Engineered for IT professionals, our secure KVM switches are built in the USA, NIAP certified, rigorously tested in our Innovation Lab, and trusted by government, military, and enterprise security teams worldwide. Built for environments handling sensitive or classified data, they combine high-assurance security with the dependable performance required for mission-critical operations.
  • Ports & interfaces
    Console USB ports quantity2
    Console ports3.5mm headphone, DisplayPort, USB A
    Number of microphone inputs4
    DisplayPorts quantity8
    Number of computers controlled4
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeDisplayPort
    Audio connectionsYes
    Headphone outputs1
    DC-in jackYes
    USB 2.0 Type-B ports quantity4
    Console DisplayPorts ports quantity2
    Performance
    Daisy chainNo
    HD type4K Ultra HD
    Maximum resolution3840 x 2160 pixels
    Audio channels2.0
    Number of displays supported2
    Maximum refresh rate30 Hz
    Maximum cable length6 m
    Technical details
    Product colourBlack
    Rack mountingNo
    Push buttonYes
    On Screen Display (OSD)No
    LED indicatorsYes
    Hot keysNo
    IP controlNo
    Compliance certificatesFederal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
    Design
    Maximum cable length6 m
    Product colourBlack
    Rack mountingNo
    Push buttonYes
    LED indicatorsYes
    Hot keysNo
    Housing materialMetal
    Display
    Built-in displayNo
    On Screen Display (OSD)No
    Power
    Power sourceDC
    Video
    HD type4K Ultra HD
    Maximum resolution3840 x 2160 pixels
    Sustainability
    Compliance certificatesFederal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
    Operational conditions
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Weight & dimensions
    Width170 mm
    Depth320 mm
    Height68 mm
    Weight1.9 kg
    Package width89 mm
    Package depth16.2 mm
    Package height216 mm
    Packaging data
    Package width89 mm
    Package depth16.2 mm
    Package height216 mm
    Other features
    IP controlNo
    Push buttonYes
    Hot keysNo
    Logistics data
    Master (outer) case width257 mm
    Master (outer) case length551 mm
    Master (outer) case height436 mm
    Products per master (outer) case6 pc(s)
