        • StarTech.com Secure 4-Port KVM Switch, DisplayPort, 4K 30Hz, NIAP 4.0 Desktop KVM, Metal Housing, Made in the USA

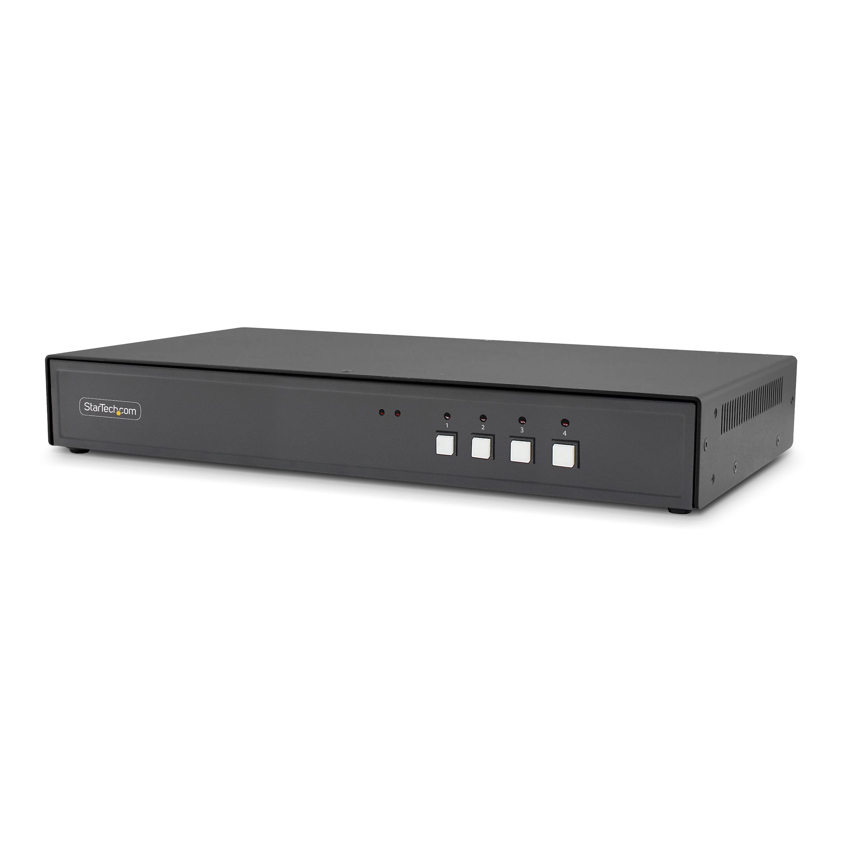

        StarTech.com Secure 4-Port KVM Switch, DisplayPort, 4K 30Hz, NIAP 4.0 Desktop KVM, Metal Housing, Made in the USA

        SKU: CK4-P104
        £910.28 ex VAT
        £1,092.34 inc VAT
        Product out of stockOut of stock
        • Control multiple computers with a single set of peripherals while isolating data paths between systems and ensuring no data is ever stored

          Operate multiple secure systems from a single workstation with the NIAP-Certified KVM switch, delivering uncompromising security, enterprise-grade performance, and seamless control over up to four computers with a 4K 30Hz display.

          NIAP Certified Multi-System Control

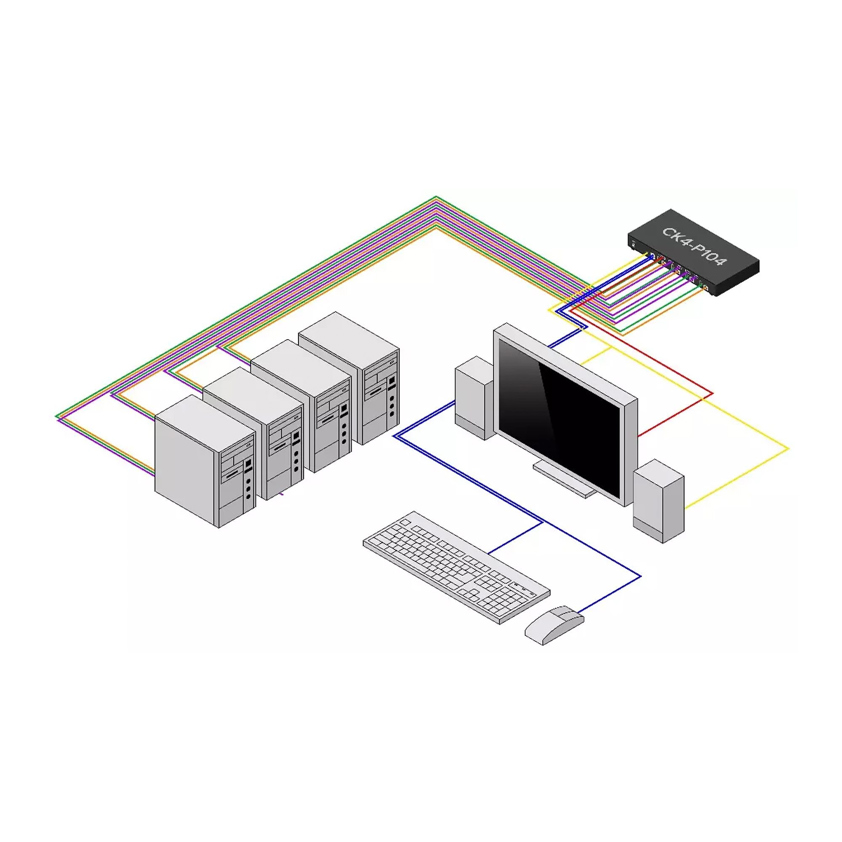

          Manage up to four DisplayPort-enabled desktops, workstations, or servers from one mouse, keyboard, and a 4K 30Hz monitor. Status LEDs on the console ports and port selection indicators provide instant visual feedback, while NIAP certification ensures complete system isolation to prevent any data transfer or leakage between connected systems. Integrated anti-tamper switches provide protection from the moment the unit leaves the factory, so any intrusion attempt, whether in storage, transit, or operation, will permanently disable the KVM and trigger clear visual and audible alerts. This makes it ideal for safeguarding operations across security domains or ensuring compliance with strict regulatory requirements.

          This secure KVM complies with the following protection profiles and modules:

          Protection Profile for Peripheral Sharing Device (PSD), Version 4.0

          PP-Module for Analog Audio Output Devices, Version 1.0

          PP-Module for User Authentication Devices, Version 1.0

          PP-Module for Keyboard/Mouse Devices, Version 1.0

          PP-Module for Video/Display Devices, Version 1.0

          Anti-Tamper Switches

          The advanced Tamper Protection System uses anti-tamper switches to detect physical intrusion attempts, immediately disabling all functionality and triggering visual and audible alerts, while a tamper-evident seal provides clear indication of unauthorized physical access.

          Enterprise-Grade Security and Reliability

          Engineered for IT professionals, our secure KVM switches are built in the USA, NIAP certified, rigorously tested in our Innovation Lab, and trusted by government, military, and enterprise security teams worldwide. Built for environments handling sensitive or classified data, they combine high-assurance security with the dependable performance required for mission-critical operations.

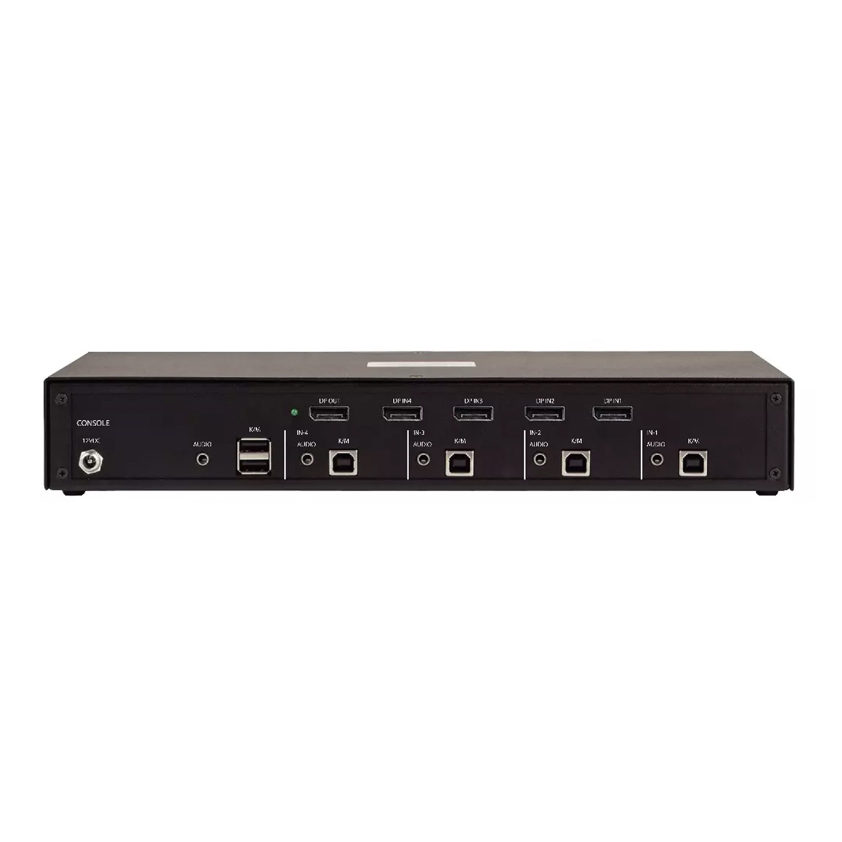

        • Ports & interfaces
          Console USB ports quantity2
          Console ports3.5mm headphone, DisplayPort, USB A
          Number of microphone inputs4
          DisplayPorts quantity4
          Number of computers controlled4
          Keyboard port typeUSB
          Mouse port typeUSB
          Video port typeDisplayPort
          Audio connectionsYes
          Headphone outputs1
          USB 2.0 Type-B ports quantity4
          Console DisplayPorts ports quantity1
          Performance
          Daisy chainNo
          HD type4K Ultra HD
          Maximum resolution3840 x 2160 pixels
          Audio channels2.0
          Number of displays supported1
          Maximum refresh rate30 Hz
          Maximum cable length6 m
          Technical details
          Product colourBlack
          Rack mountingNo
          Push buttonYes
          On Screen Display (OSD)No
          LED indicatorsYes
          Hot keysNo
          IP controlNo
          Compliance certificatesTrade Agreements Act (TAA), Federal Communications Commission (FCC), RoHS
          Design
          Maximum cable length6 m
          Product colourBlack
          Rack mountingNo
          Push buttonYes
          LED indicatorsYes
          Hot keysNo
          Housing materialMetal
          Display
          Built-in displayNo
          On Screen Display (OSD)No
          Power
          Power sourceDC
          Video
          HD type4K Ultra HD
          Maximum resolution3840 x 2160 pixels
          Sustainability
          Compliance certificatesTrade Agreements Act (TAA), Federal Communications Commission (FCC), RoHS
          Operational conditions
          Operating temperature (T-T)0 - 40 °C
          Storage temperature (T-T)-20 - 60 °C
          Operating relative humidity (H-H)0 - 80%
          Weight & dimensions
          Width170 mm
          Depth224 mm
          Height45 mm
          Weight1.8 kg
          Other features
          IP controlNo
          Push buttonYes
          Hot keysNo
          Logistics data
          Products per master (outer) case8 pc(s)
