Laptop Docking Station | Mac & Windows® | 3x USB Ports | 10G USB-C | 5K | 85W PD
This compact Thunderbolt™ 3 dock is built for productivity, transforming your Thunderbolt 3 laptop into a dual-4K workstation with up to 40Gbps of throughput. The high- performance dock features a PCIe M.2 SSD slot for enhanced data storage, three USB ports, an SD card reader, a Gigabit Ethernet port, a downstream Thunderbolt 3 port for daisy-chaining, plus 85W Power Delivery.
Create a Dual-4K 60Hz Workstation
Great for Ultra HD tasks, the dual-4K docking station supports 4K resolution on two monitors:
• 1x DisplayPort + 1x Thunderbolt 3 USB-C display (4096 x 2160p @60Hz)
• USB-C to DP cable or USB-C video adapter may be required
• 1x 5K monitor at 60H
Easy Installation & Deployment

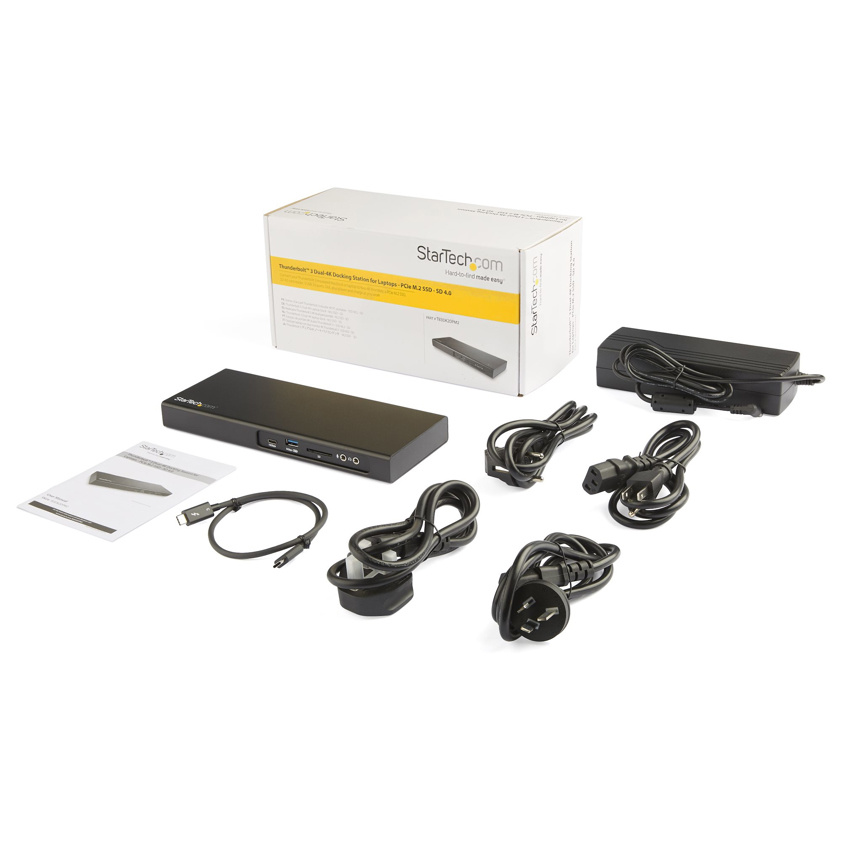

Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.
Add Data Storage

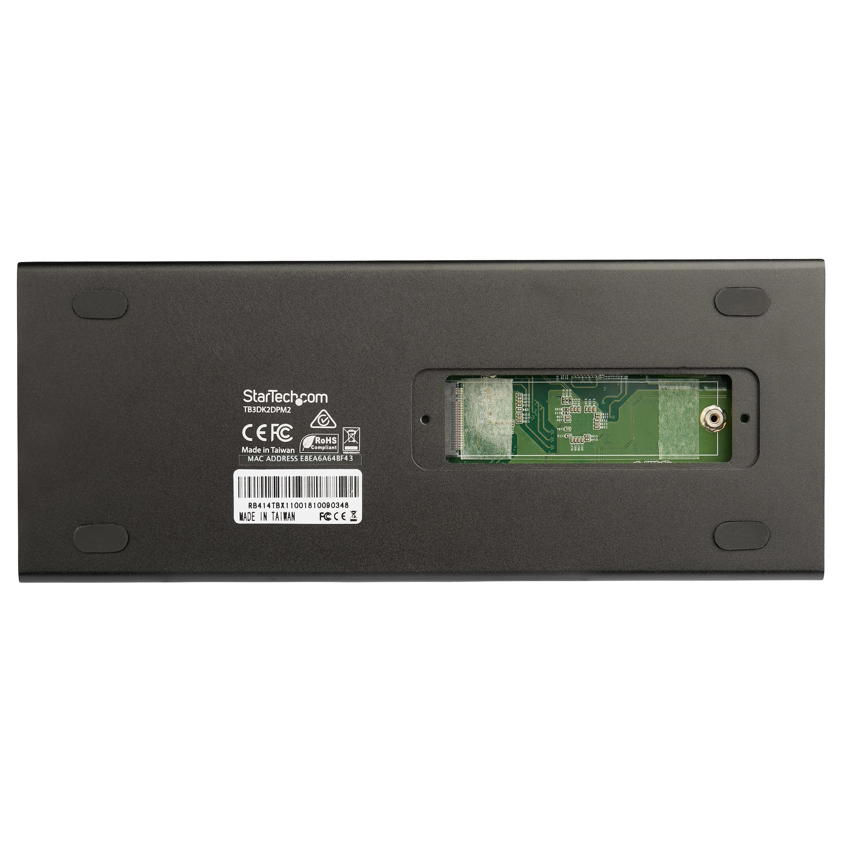

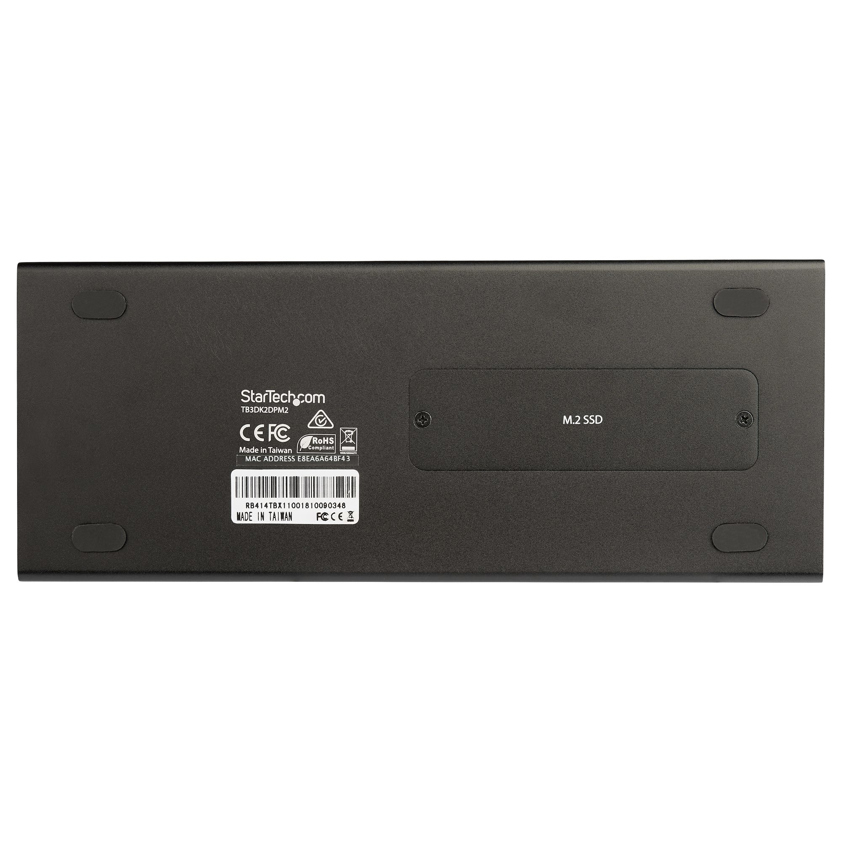

The Thunderbolt 3 dock’s built-in PCIe M.2 SSD enclosure supports transfer speeds up to 1500MB/s with the addition of a PCIe M.2 SSD for ultra-fast data access, enhanced storage, and application buffering and caching.
Fast SD Card Access
Transfer photos or videos from your SD cards to your Thunderbolt 3 laptop. The dock’s SD slot supports SD 4.0 and UHS-II with transfer speeds up to 270MB/s.

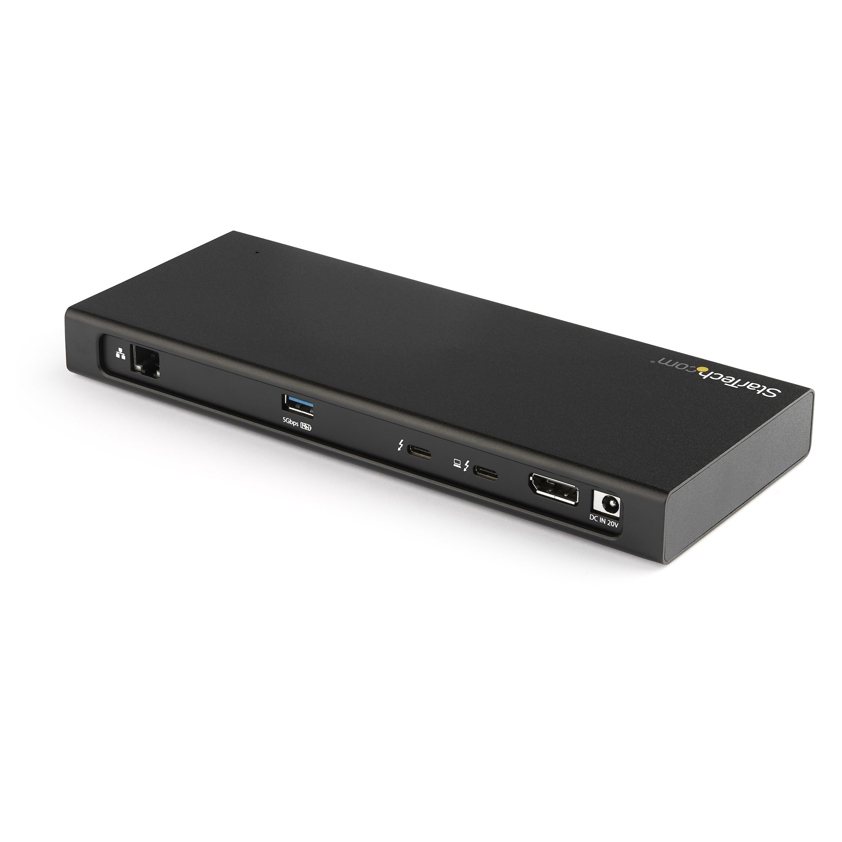

Connect Your Devices

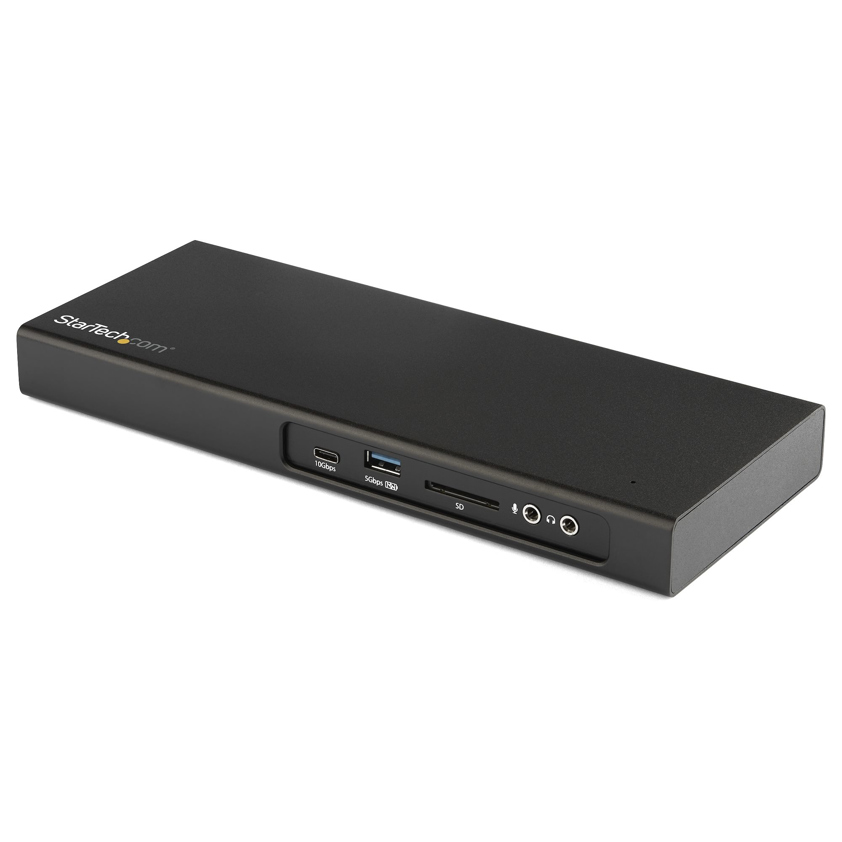

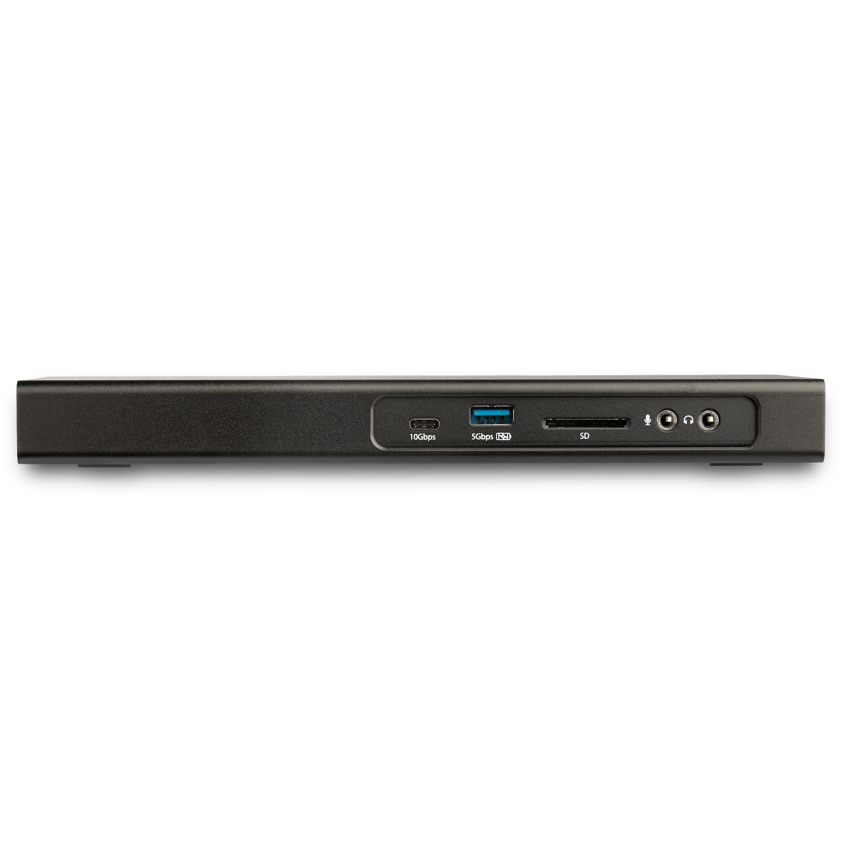

Connect peripherals with three USB ports - one USB-C port (10G) with up to 3A charging and two USB-A ports (5G) with Fast-Charge and Sync.

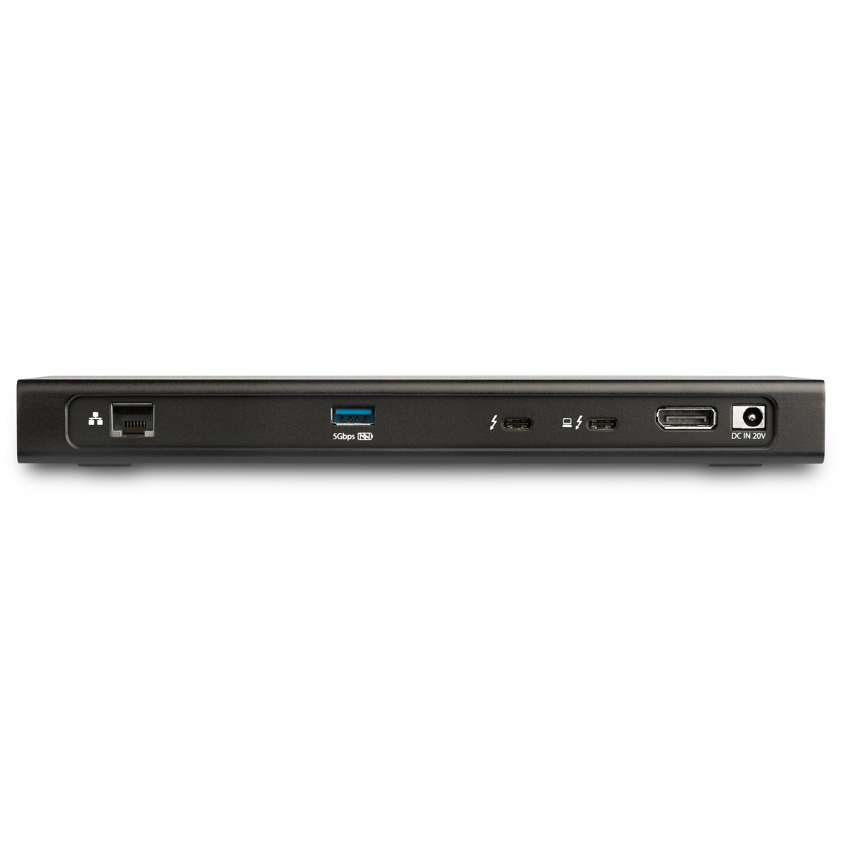

The GbE port (with PXE Boot and WoL support) provides reliable wired network access.
85W Power Delivery
Using a single cable, the Thunderbolt 3 dock provides up to 85W of Power Delivery charging.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The TAA compliant TB3DK2DPM2 is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - PCIe M.2 NVMe SSD Enclosure - 85W Power Delivery - SD 4.0, 10Gbps USB-C, 2 USB-A Hub - TAA
SKU: TB3DK2DPM2£158.19 ex VAT
£189.83 inc VAT
Out of stockPorts & interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 Thunderbolt 3 ports quantity 2 Number of microphone inputs 1 Headphone connectivity 3.5 mm Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C USB 2.0 ports quantity 0 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 0 DisplayPorts quantity 1 Microphone in Yes Headphone outputs 1 DC-in jack Yes Connectivity technology Wired USB Power Delivery (USB PD) Yes USB Power Delivery up to 85 W Network Full duplex Yes Auto MDI/MDI-X Yes Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Performance UASP support Yes Maximum digital resolution 5120 x 2880 pixels Full duplex Yes Auto MDI/MDI-X Yes Product colour Black Card reader integrated Yes Data transfer rate 40 Gbit/s Compatible memory cards MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC Certification FCC, CE, REACH Housing material Aluminium Supported SSD sizes M.2 Technical details Product colour Black Data transfer rate 40 Gbit/s Cable length 0.5 m Harmonized System (HS) code 84733020 Compliance certificates RoHS Products per master (outer) case 4 pc(s) Master (outer) case width 270 mm Master (outer) case length 310 mm Master (outer) case height 326 mm Storage Card reader integrated Yes Compatible memory cards MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC Supported SSD sizes M.2 Power Input current 0.25 A Power plug type Type N Compatible power plug types AU, EU, JP, UK, US AC input voltage 100 - 240 V Power consumption (typical) 170 W Output voltage 20 V Output current 7.5 A Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Mac operating systems supported Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura Operational conditions Operating temperature (T-T) 5 - 35 °C Storage temperature (T-T) -20 - 50 °C Operating relative humidity (H-H) 20 - 80% Weight & dimensions Weight 780 g Width 239 mm Depth 95 mm Height 25 mm Package weight 1.4 kg Package width 138 mm Package depth 288 mm Package height 125 mm Design Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Mac operating systems supported Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura Product colour Black Certification FCC, CE, REACH Packaging data Package weight 1.4 kg Package width 138 mm Package depth 288 mm Package height 125 mm Packaging content Manual Yes Cables included Thunderbolt AC adapter included Yes Certificates Certification FCC, CE, REACH Logistics data Products per master (outer) case 4 pc(s) Master (outer) case width 270 mm Master (outer) case length 310 mm Master (outer) case height 326 mm Harmonized System (HS) code 84733020 Other features Number of microphone inputs 1 Chipset Intel - Alpine Ridge DP, ASMedia ASM1142, Realtek RTS5411, Realtek RTS5329, C-Media - CM6533, Intel i210AT Cable length 0.5 m Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
