  • StarTech.com Thunderbolt 3 Mini Dock - Portable Dual Monitor Docking Station w/HDMI 4K 60Hz, 2x USB-A Hub (3.0/2.0), GbE - 11in/28cm Cable - TB3 Multiport Adapter - Mac/Windows

StarTech.com Thunderbolt 3 Mini Dock - Portable Dual Monitor Docking Station w/HDMI 4K 60Hz, 2x USB-A Hub (3.0/2.0), GbE - 11in/28cm Cable - TB3 Multiport Adapter - Mac/Windows

SKU: TB3DKM2HDL
£57.89 ex VAT
£69.47 inc VAT
Product in stockIn stock
  • Laptop Docking Station | Mac & Windows® | Bus-Powered | 2x USB-A

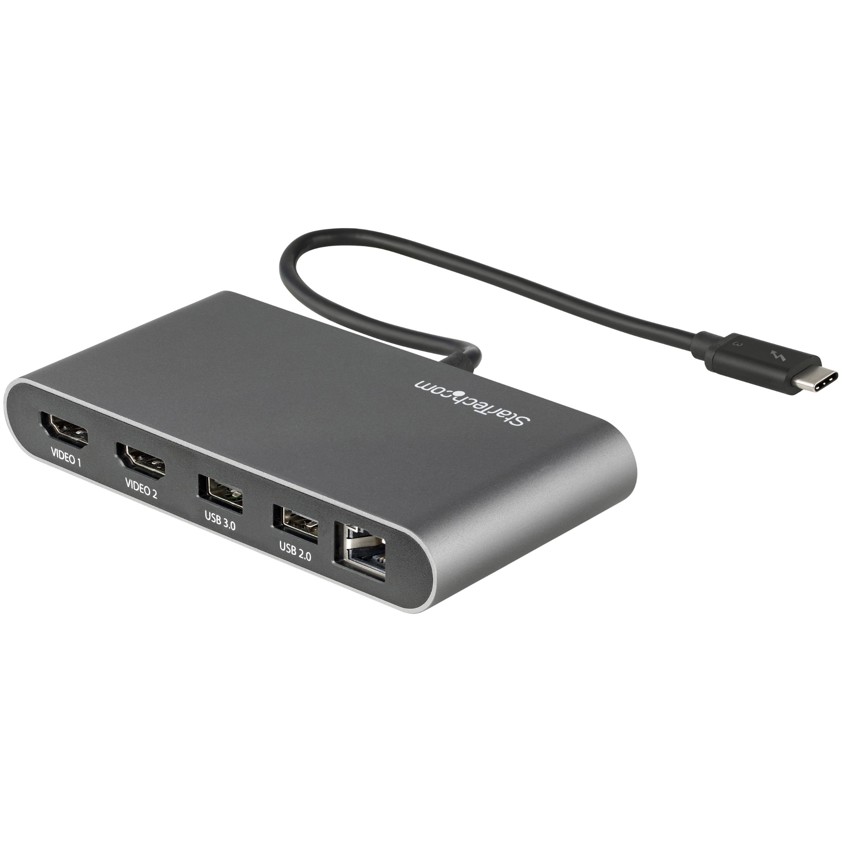

    This certified Thunderbolt™ 3 docking station is a compact mini dock, delivering essential connections for productivity. The bus-powered dock connects dual 4K HDMI displays, Gigabit Ethernet, and two USB-A (USB 3.2 / 2.0) ports and for flexible set up, the attached Thunderbolt 3 cable has an extended length of (11 in./ 28 cm).

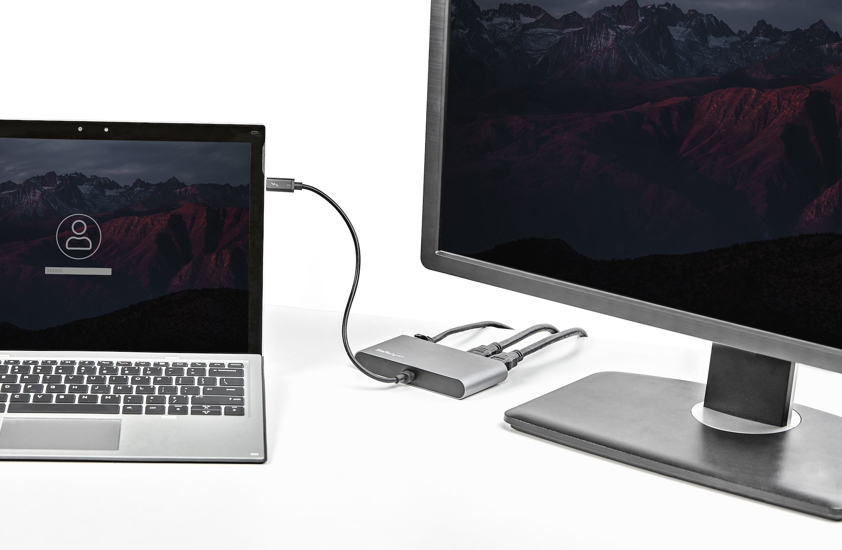

    Create a Dual-4K 60Hz Workstation

    Great for editing 4K video or other Ultra HD tasks, this portable Thunderbolt™ 3 to HDMI dock supports 40 Gbps of throughput and 4K resolution at 60Hz on dual HDMI monitors, through a single Thunderbolt™ 3 port. Run resource-demanding applications on two independent displays without draining system resources.

    Connect your laptop to:

    • 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)

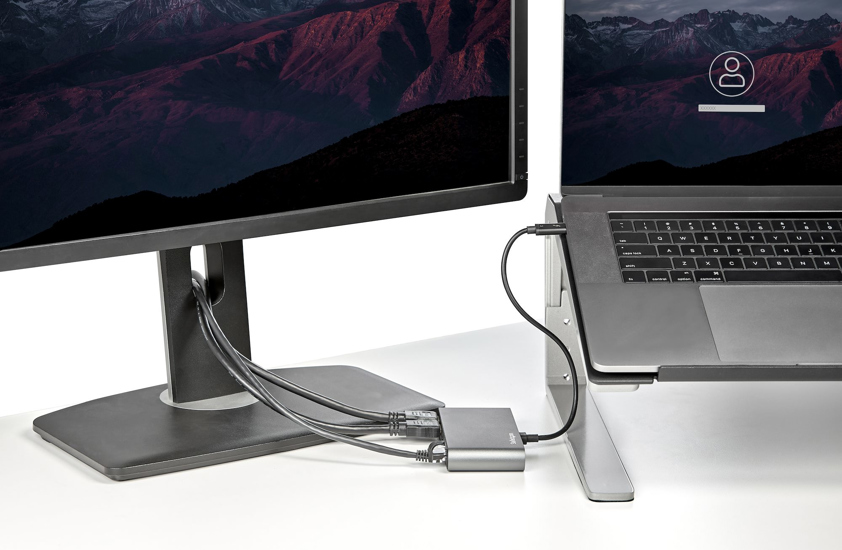

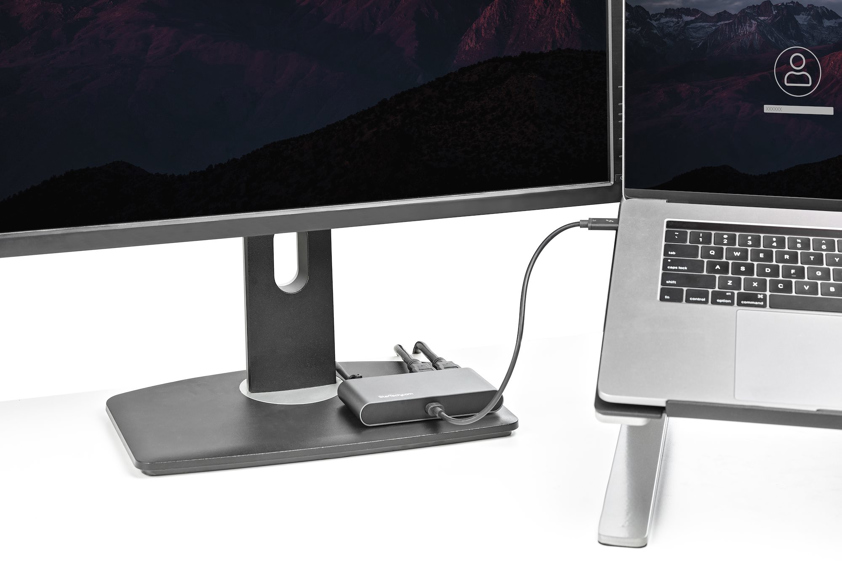

    Compact Size & 11-Inch Attached Host Cable

    At just 2.4" x 4.9" (6.1 cm x 12.4 cm), this dock takes up minimal room on your desk and in your laptop case. The dock's 28 cm (11 inches) attached cable provides extended reach to reduce port/connector strain on MacBooks and laptops on riser stands, or if needed, offers the flexibility to position dock further away from the laptop on your desk.

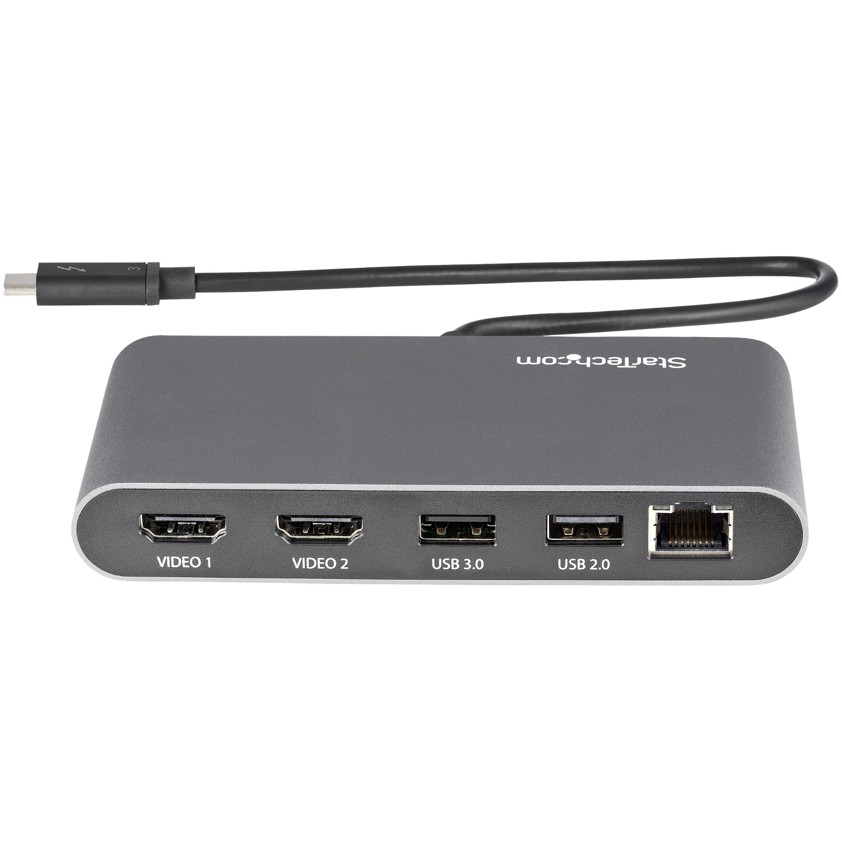

    The Ports You Need Most

    • 1x USB 3.2 Gen 1 Type-A port (5Gbps)
    • 1x USB 2.0 Type-A port
    • 1x Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support)

    Ideal for Power-Demanding Workstation Setups

    As many high powered, later generation laptops optimally require more than 100W of power to stay charged, some users prefer to use their laptop's power adapter vs. using their docking stations to keep laptops charged.

    This bus-powered TB3 mini dock is ideally suited for those users, providing full Thunderbolt™ 3 docking station performance and functionality, while their workstation laptops are separately charged.

    The StarTech.com Advantage
  • Ports & interfaces
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
    Host interfaceThunderbolt 3
    USB 2.0 ports quantity1
    Ethernet LAN (RJ-45) ports1
    HDMI ports quantity2
    Microphone inNo
    Headphone outputs0
    Connectivity technologyWired
    Network
    Networking standardsIEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
    Wake-on-LAN readyYes
    Ethernet LANYes
    Ethernet LAN data rates10,100,1000 Mbit/s
    Ethernet LAN (RJ-45) ports1
    Performance
    Maximum digital resolution3840 x 2160 pixels
    Number of displays supported2
    Product colourGrey
    Card reader integratedNo
    Technical details
    Product colourGrey
    Cable length0.28 m
    Harmonized System (HS) code84733020
    Compliance certificatesRoHS
    Products per master (outer) case24 pc(s)
    Master (outer) case width300 mm
    Master (outer) case length437 mm
    Master (outer) case height270 mm
    Storage
    Card reader integratedNo
    Software
    Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
    Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
    Server operating systems supportedWindows Server 2008 R2, Windows Server 2012, Windows Server 2012 x64
    Operational conditions
    Operating temperature (T-T)5 - 40 °C
    Storage temperature (T-T)-20 - 70 °C
    Operating relative humidity (H-H)0 - 95%
    Weight & dimensions
    Weight147.8 g
    Width69 mm
    Depth124 mm
    Height27 mm
    Package weight270 g
    Package width139 mm
    Package depth195 mm
    Package height37 mm
    Design
    Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
    Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
    Product colourGrey
    Packaging data
    Package weight270 g
    Package width139 mm
    Package depth195 mm
    Package height37 mm
    Packaging content
    ManualYes
    Logistics data
    Products per master (outer) case24 pc(s)
    Master (outer) case width300 mm
    Master (outer) case length437 mm
    Master (outer) case height270 mm
    Harmonized System (HS) code84733020
    Other features
    ChipsetIntel JHL6540 (Alpine Ridge), Texas Instruments TPS65983A, Parade PS176, ASMedia ASM1042A, Intel WGI210
    Cable length0.28 m
