StarTech.com Triple-Monitor USB 3.0 Docking Station - 1x HDMI - 2x DisplayPort

SKU: USB3DOCKH2DP
£89.07 ex VAT
£106.88 inc VAT
Product in stockIn stock
  • Port Replicator | Mac & Windows® | 4K DP | 5 USB ports | TAA Compliant

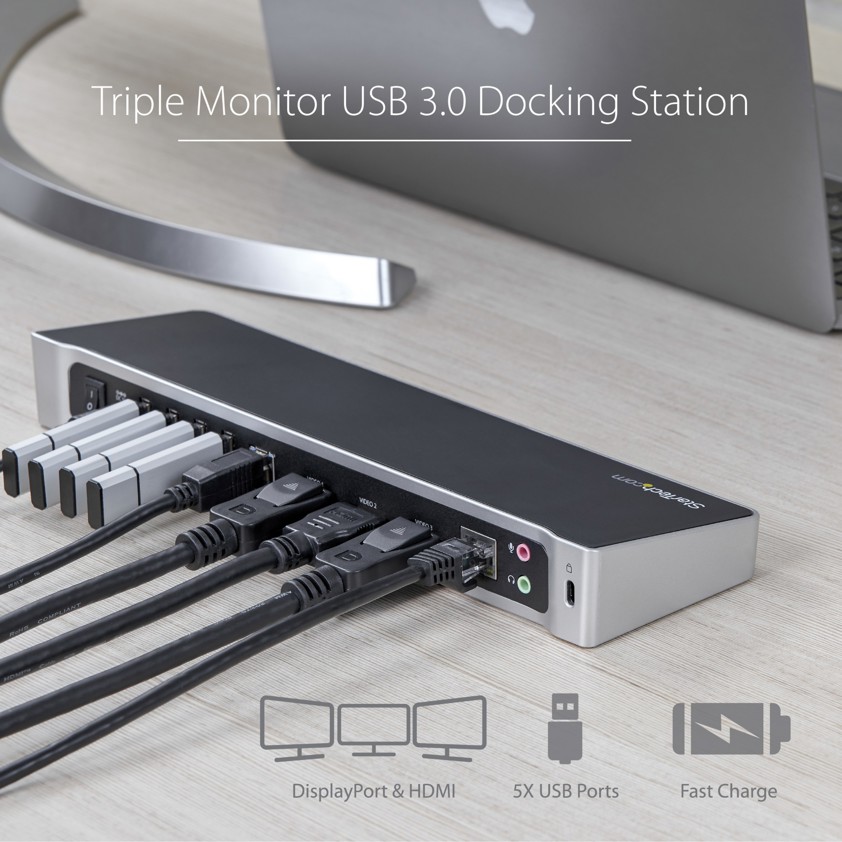

    This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.

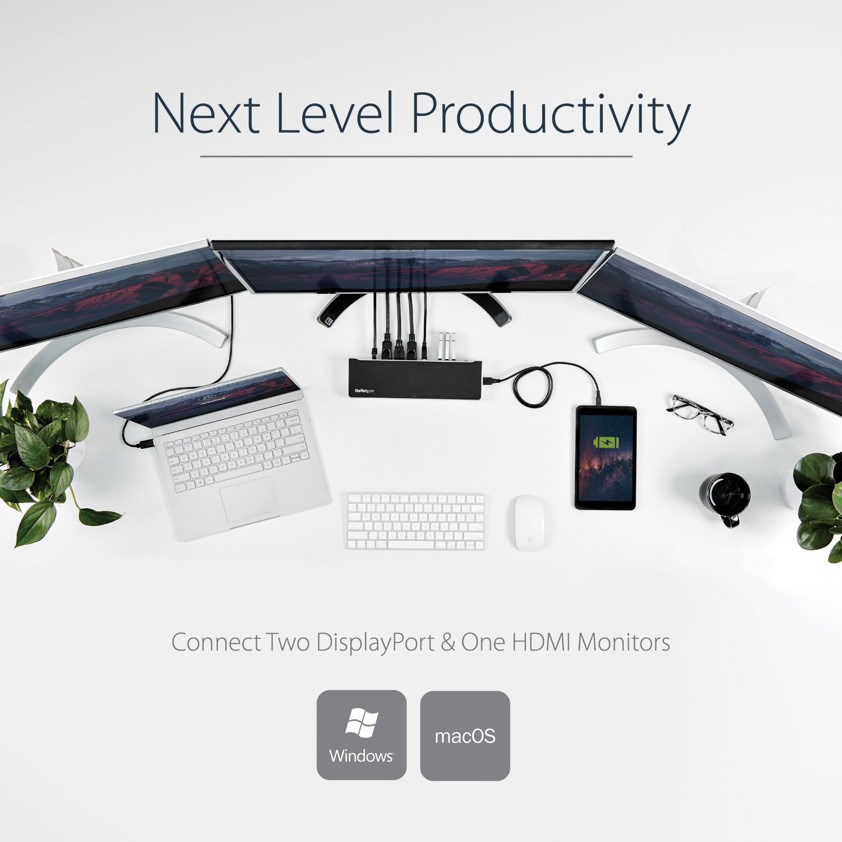

    Triple Display Flexibility

    The USB 3.0 docking station adds triple-monitor support to your workstation, with resolution support up to 4K (3840 x 2160p) on one display and 2048x1152 on the other two. With more screens, combined with high resolution, the dock maximizes your screen real estate so you can simultaneously access multiple applications and compose on one display while referencing material on the other. You can also use your laptop screen for four displays in total, making it easy to manage several programs at once and avoid the nuisance of minimizing or rearranging windows.

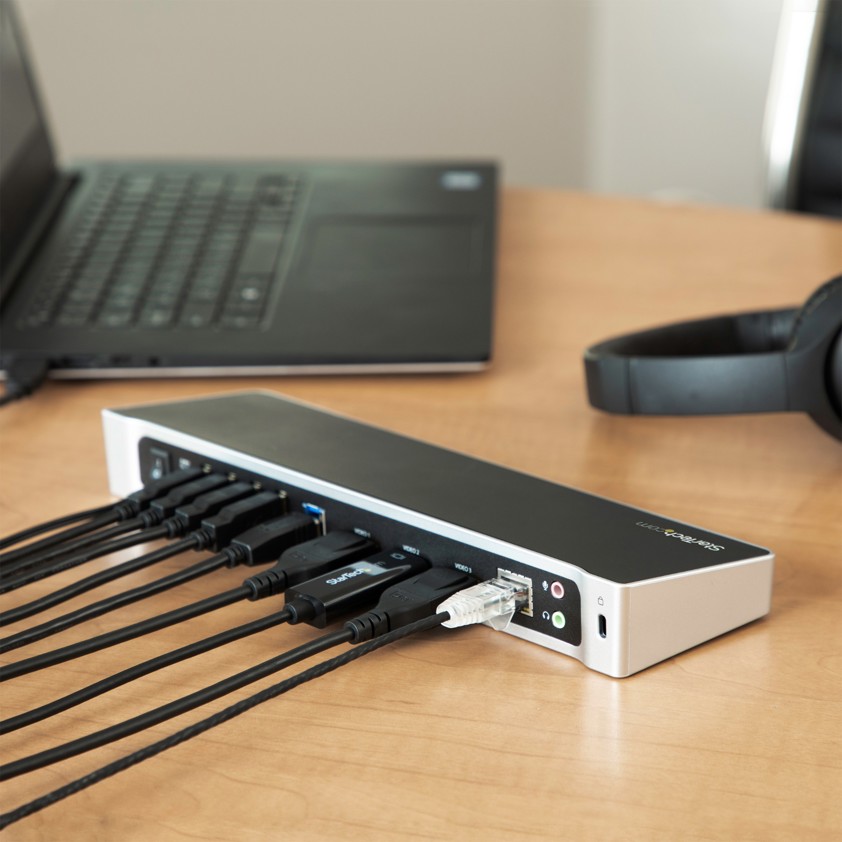

    Powerful Connections and Fast Device Charging

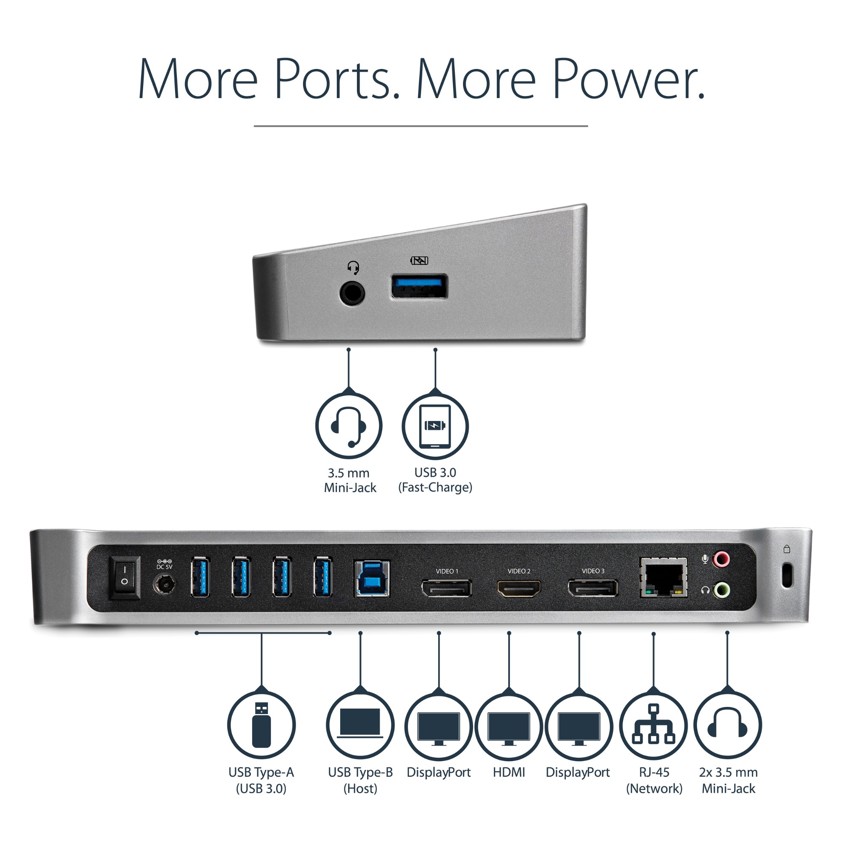

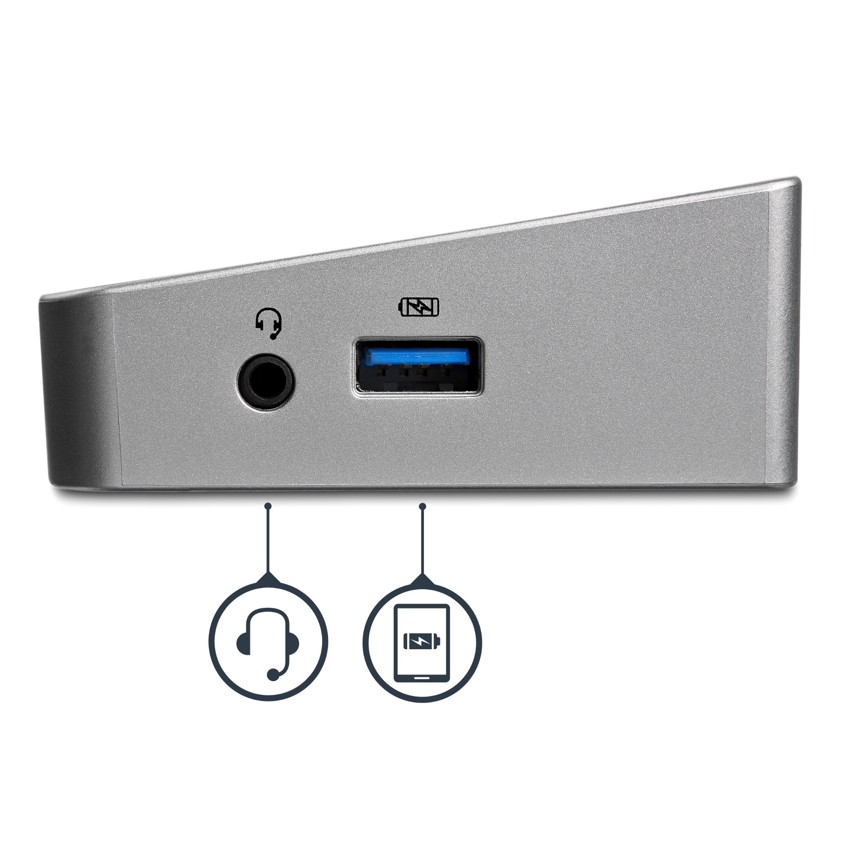

    To support all of your USB peripherals, the docking station provides five USB 3.0 ports. The side-facing USB port is a USB fast-charge port (USB Battery Charging Specification 1.2), so you can charge your mobile devices faster than from standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need to stay productive.

    The TAA compliant USB3DOCKH2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

    The StarTech.com Advantage
  • Ports & interfaces
    Combo headphone/mic portYes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
    Number of microphone inputs1
    Headphone connectivity3.5 mm
    Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-A
    USB connector typeUSB Type-A
    Ethernet LAN (RJ-45) ports1
    HDMI ports quantity1
    DisplayPorts quantity2
    Microphone inYes
    Headphone outputs2
    DC-in jackYes
    Connectivity technologyWired
    Network
    Full duplexYes
    Auto MDI/MDI-XYes
    Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
    Wake-on-LAN readyYes
    Ethernet LANYes
    Ethernet LAN data rates10,100,1000 Mbit/s
    Ethernet LAN (RJ-45) ports1
    Performance
    UASP supportYes
    Maximum digital resolution3840 x 2160 pixels
    Full duplexYes
    Auto MDI/MDI-XYes
    Product colourBlack, Silver
    Card reader integratedNo
    Brand compatibilityAny brand
    Cable lock slotYes
    LED indicatorsActivity, Link
    Data transfer rate5 Gbit/s
    CertificationCE, FCC, DisplayLink, TAA, REACH
    Housing materialPlastic
    USB data transfer rates5000 Mbit/s
    Technical details
    Product colourBlack, Silver
    Brand compatibilityAny brand
    Cable lock slotYes
    Data transfer rate5 Gbit/s
    Harmonized System (HS) code84733020
    Compliance certificatesRoHS
    Products per master (outer) case10 pc(s)
    Master (outer) case width363 mm
    Master (outer) case length373 mm
    Master (outer) case height395 mm
    Storage
    Card reader integratedNo
    Power
    Input current1.5 A
    Power plug typeType N
    Compatible power plug typesAU, EU, UK, US
    AC input voltage100-240 V
    Power consumption (typical)32.5 W
    Output voltage5 V
    Output current6.5 A
    Software
    Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
    Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
    Mac compatibilityYes
    Other operating systems supportedChromeOS
    Indication
    LED indicatorsActivity, Link
    Operational conditions
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-10 - 80 °C
    Operating relative humidity (H-H)0 - 90%

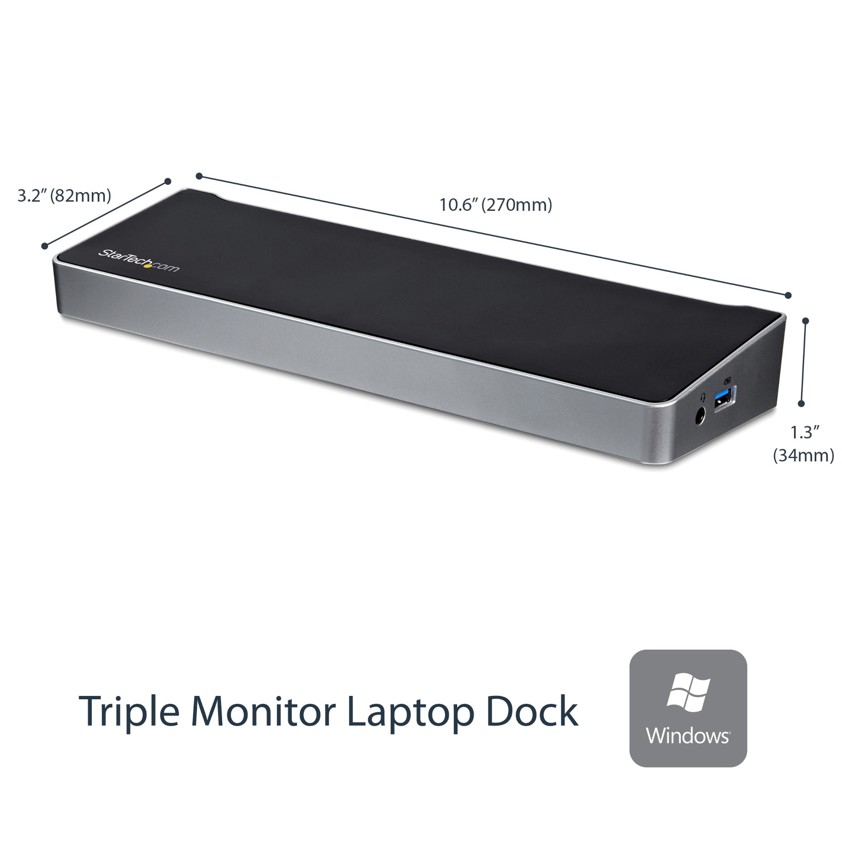

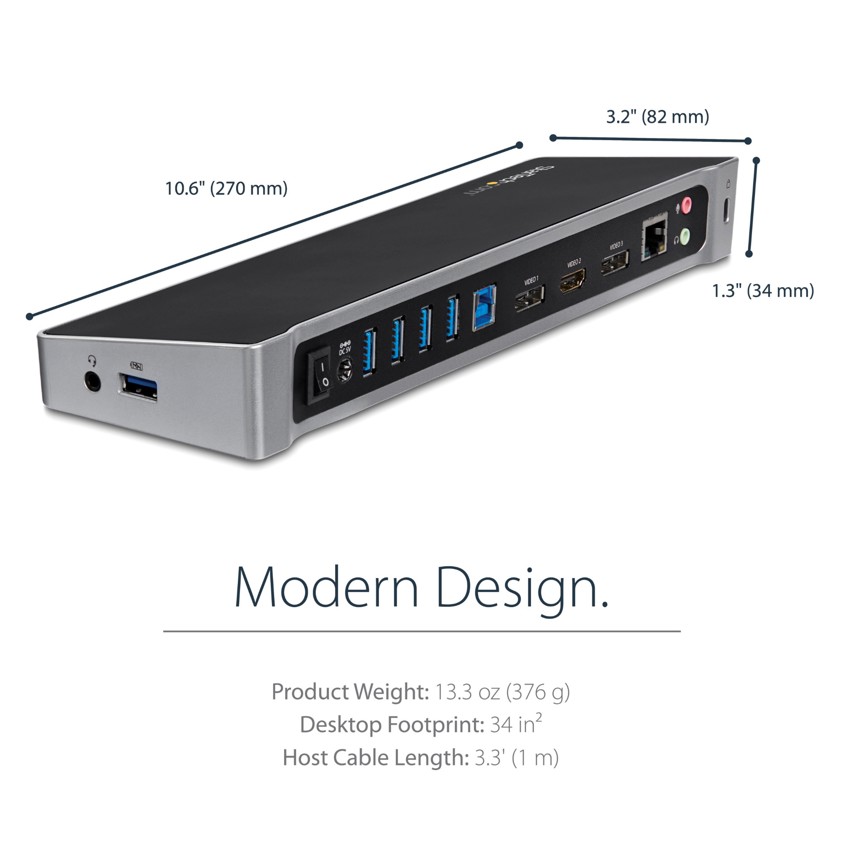

    Weight & dimensions
    Weight376 g
    Width82 mm
    Depth270 mm
    Height34 mm
    Package weight1.03 kg
    Package width296 mm
    Package depth164 mm
    Package height71 mm
    Design
    Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
    Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
    Product colourBlack, Silver
    Cable lock slotYes
    LED indicatorsActivity, Link
    CertificationCE, FCC, DisplayLink, TAA, REACH
    Packaging data
    Package weight1.03 kg
    Package width296 mm
    Package depth164 mm
    Package height71 mm

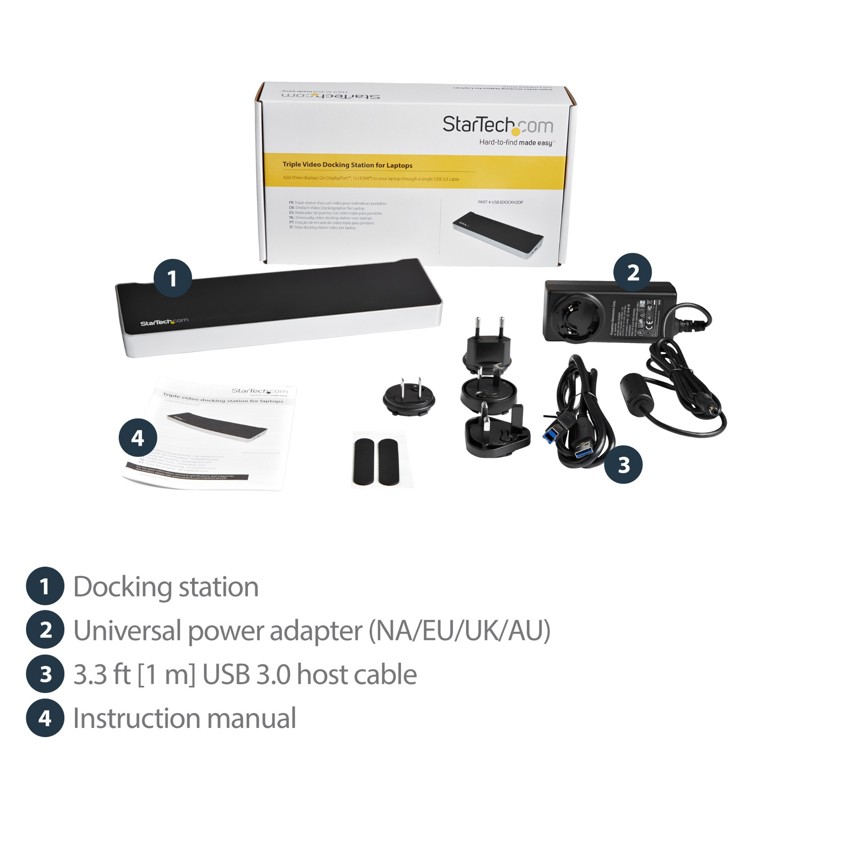

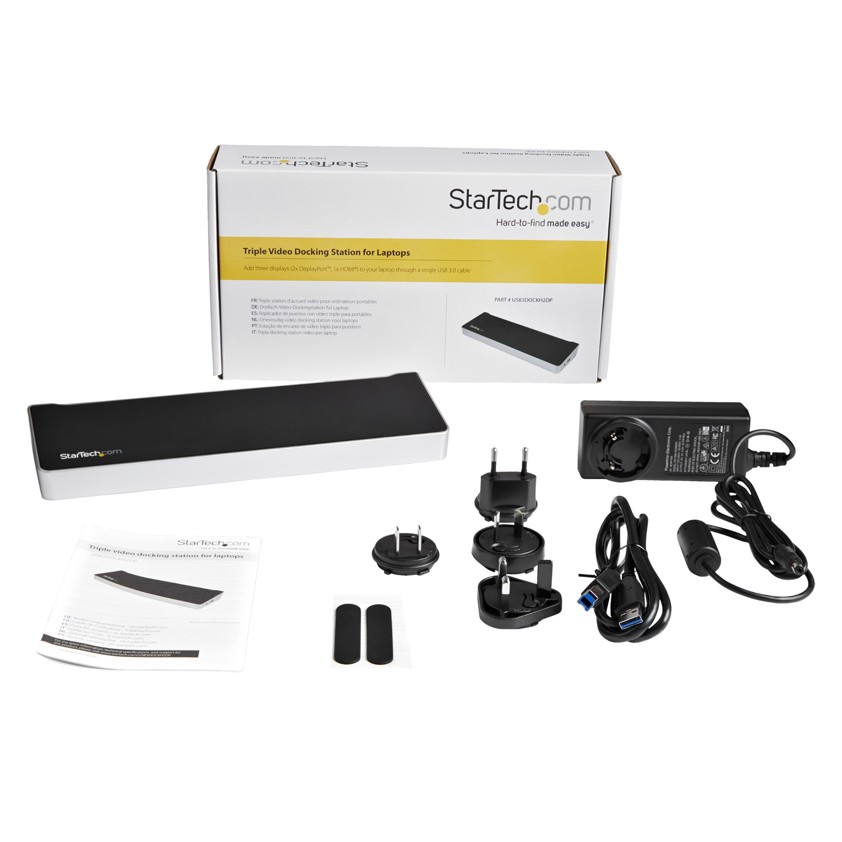

    Packaging content
    ManualYes
    Cables includedUSB
    AC adapter includedYes
    Certificates
    CertificationCE, FCC, DisplayLink, TAA, REACH
    Logistics data
    Products per master (outer) case10 pc(s)
    Master (outer) case width363 mm
    Master (outer) case length373 mm
    Master (outer) case height395 mm
    Harmonized System (HS) code84733020
    Other features
    USB data transfer rates5000 Mbit/s
    Number of microphone inputs1
    ChipsetDisplayLink - DL-5910, VLI - VL812
