Mount a 2.5" U.2 NVMe SSD into your desktop computer or server, using an available PCIe expansion slot
Get ultra-fast data access by adding an NVMe U.2 SSD to your computer. This U.2 to PCIe adapter lets you add a high-speed, U.2 (4-lane PCIe) 2.5" NVMe SSD, such as the Intel® 750 Series drive, to a PC with an available x4 PCI Express expansion slot.
You can mount the PCIe U.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.
Boost your system speed and performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe U.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an NVMe U.2 PCIe-based SSD through ultra-fast x4 PCIe. With the U.2 PCIe-based drive in place, the adapter gives your computer a significant speed boost.
Easy to install
The expansion card is equipped with a full-profile bracket and doesn't require an adapter cable for installation, this helps to reduce clutter and simplifies system builds. The drive connects directly to the SFF-8639 connector on the adapter, and the adapter connects directly to the computer motherboard.
The adapter is compatible with PCIe 4.0 motherboards and is also backward compatible with PCIe 3.0 / 2.0 / 1.0.
The PEX4SFF8639 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com U.2 to PCIe Adapter for 2.5" U.2 NVMe SSD - SFF-8639 - x4 PCI Express 4.0
SKU: PEX4SFF8639£30.48 ex VAT
£36.57 inc VAT

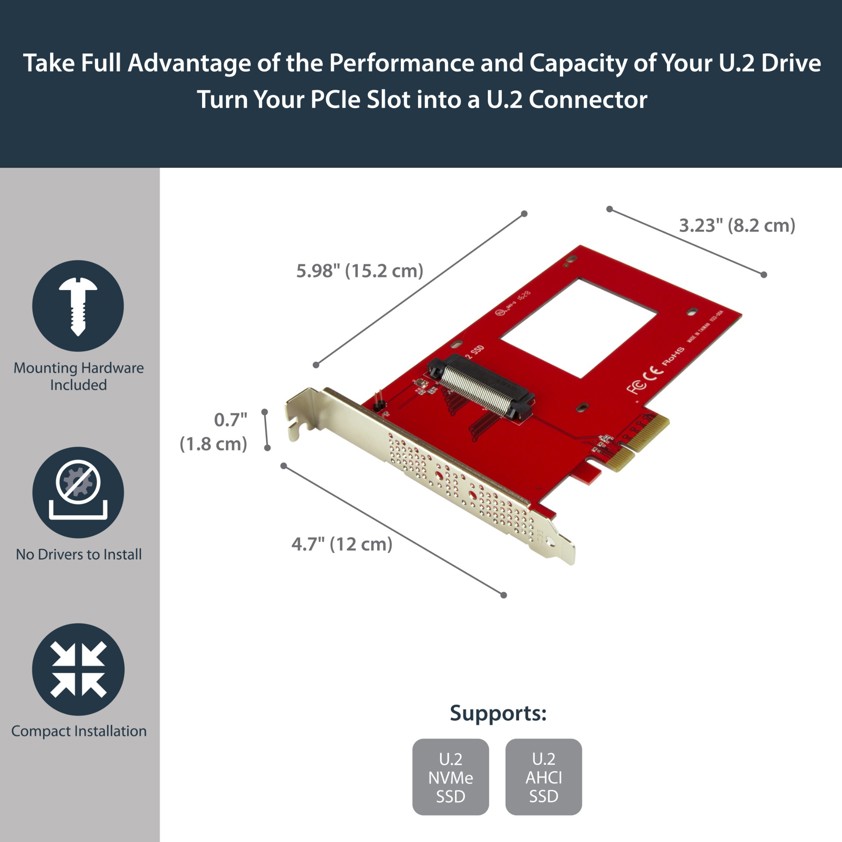

Low stockPorts & interfaces Internal Yes Output interface U.2 Host interface PCIe Expansion card standard PCIe 4.0 Technical details Plug and Play Yes Compliance certificates RoHS Performance Hot-swap No Plug and Play Yes Product colour Red Harmonized System (HS) code 84733020 Certificates Certification CE, FCC Colour Product colour Red Design Hot-swap No Internal Yes Product colour Red Certification CE, FCC LED indicators Activity Features Plug and Play Yes Harmonized System (HS) code 84733020 Operational conditions Operating temperature (T-T) 5 - 50 °C Storage temperature (T-T) -25 - 70 °C Operating relative humidity (H-H) 15 - 90% Weight & dimensions Width 122 mm Depth 165 mm Height 22 mm Weight 65 g Package width 160 mm Package depth 220 mm Package height 45 mm Package weight 161 g Packaging data Package width 160 mm Package depth 220 mm Package height 45 mm Package weight 161 g Quick installation guide Yes Screws included Yes Logistics data Products per master (outer) case 40 pc(s) Master (outer) case width 340 mm Master (outer) case length 450 mm Master (outer) case height 490 mm Harmonized System (HS) code 84733020 Packaging content Quick installation guide Yes Screws included Yes Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
