2.5G switch | Multi-Gigabit | 5 port | Unmanaged | Cat5e/Cat6/Cat6a cabling | Wall mount kit | K-slot

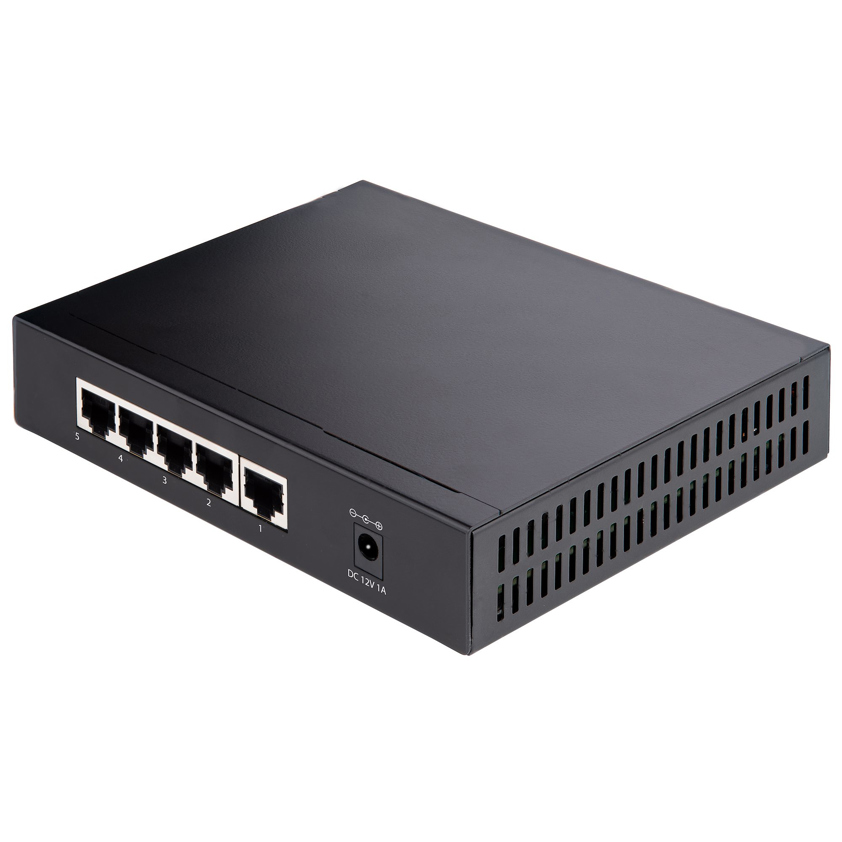

The unmanaged network switch offers five multi-speed Ethernet ports (10/100/1000/2500 Mbps) in a compact and durable all-metal casing while remaining silent and energy-efficient (IEEE 802.3az). The network switch is the ideal solution to dramatically speed up your network to support 2.5GBASE-T, and being an unmanaged switch, you can set it up in no time.
Enhance your network

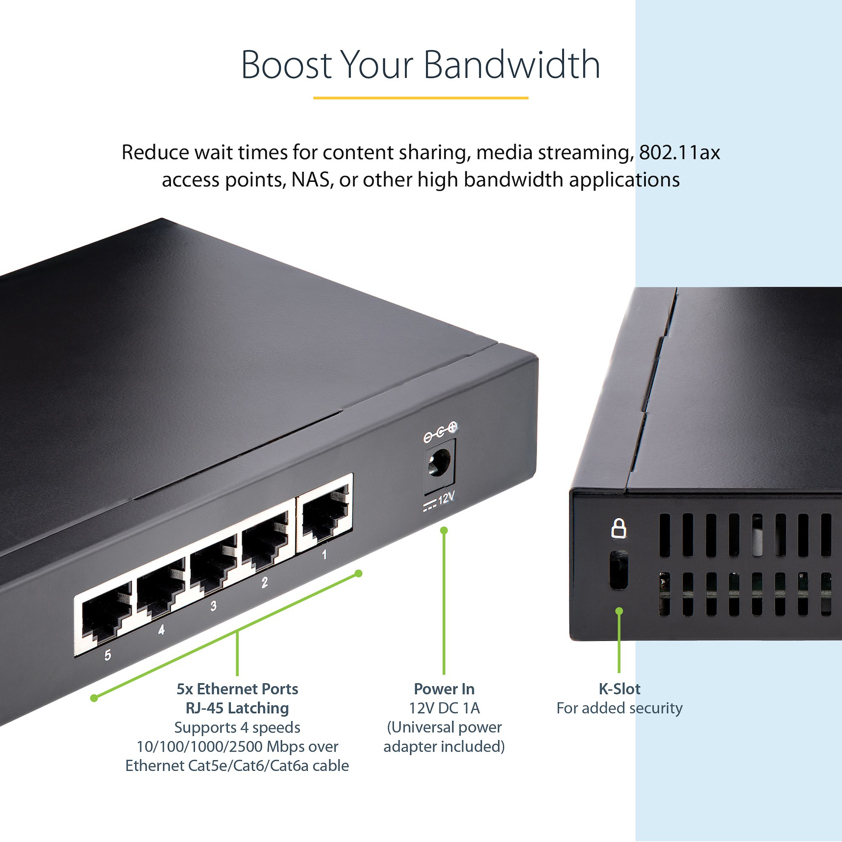

This network switch allows you to use existing Cat5e/Cat6/Cat6a cabling to increase the bandwidth to 2.5 Gbps, ideal for large file transfers, streaming, network sharing/storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility. You can also use it in combination with Wi-Fi 6 (802.11ax) wireless access points to expand your network range, bandwidth, and accessibility.
Secure and versatile

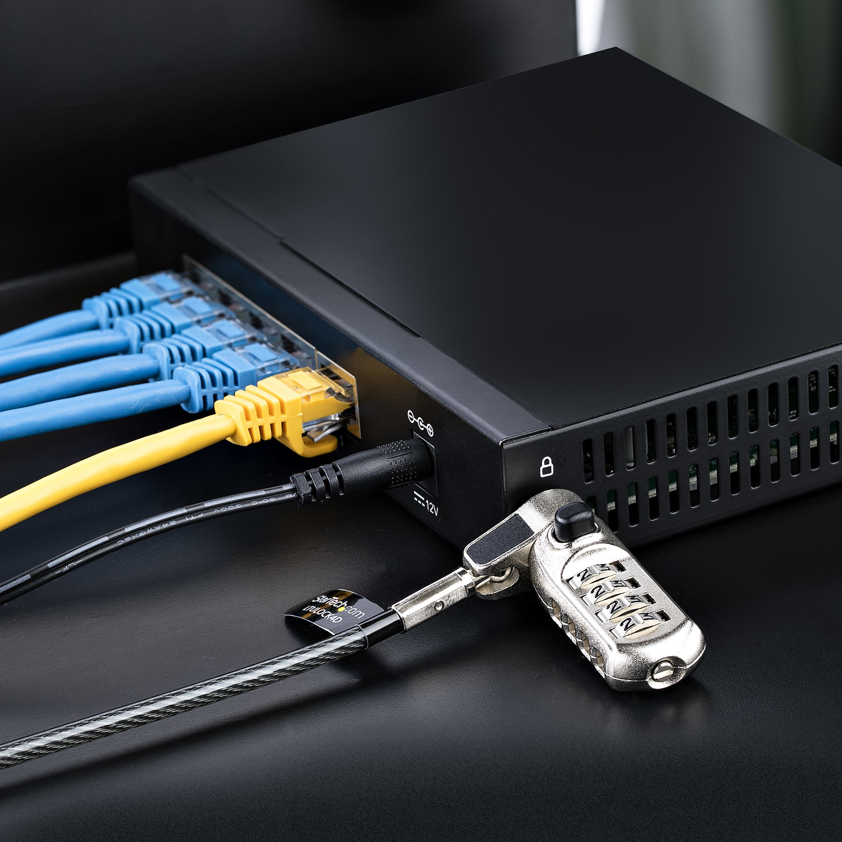

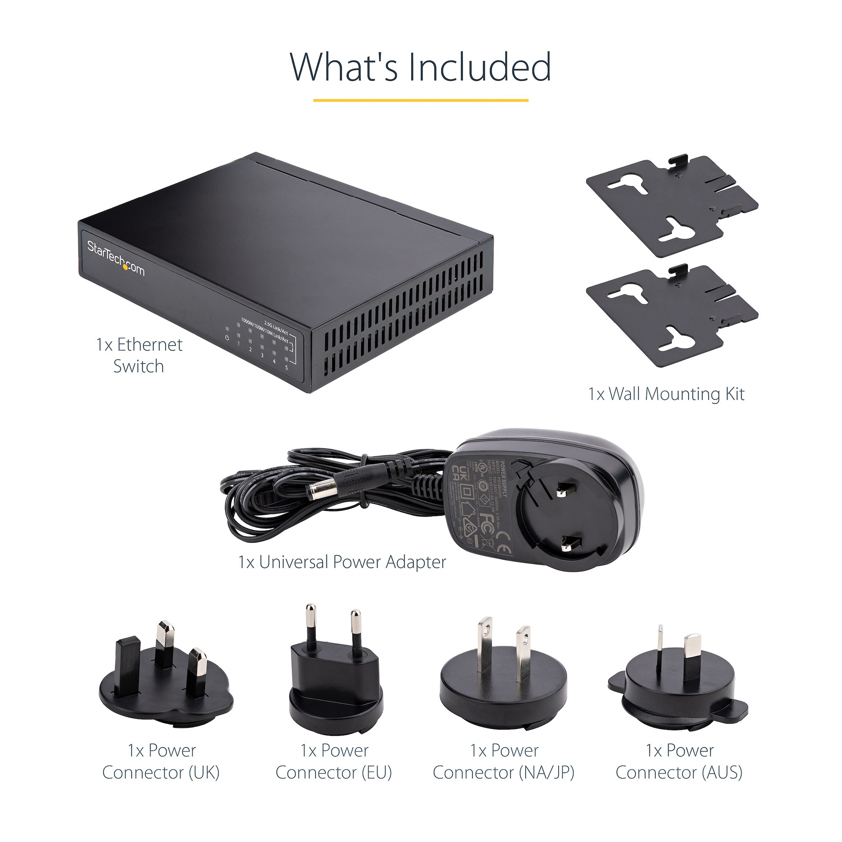

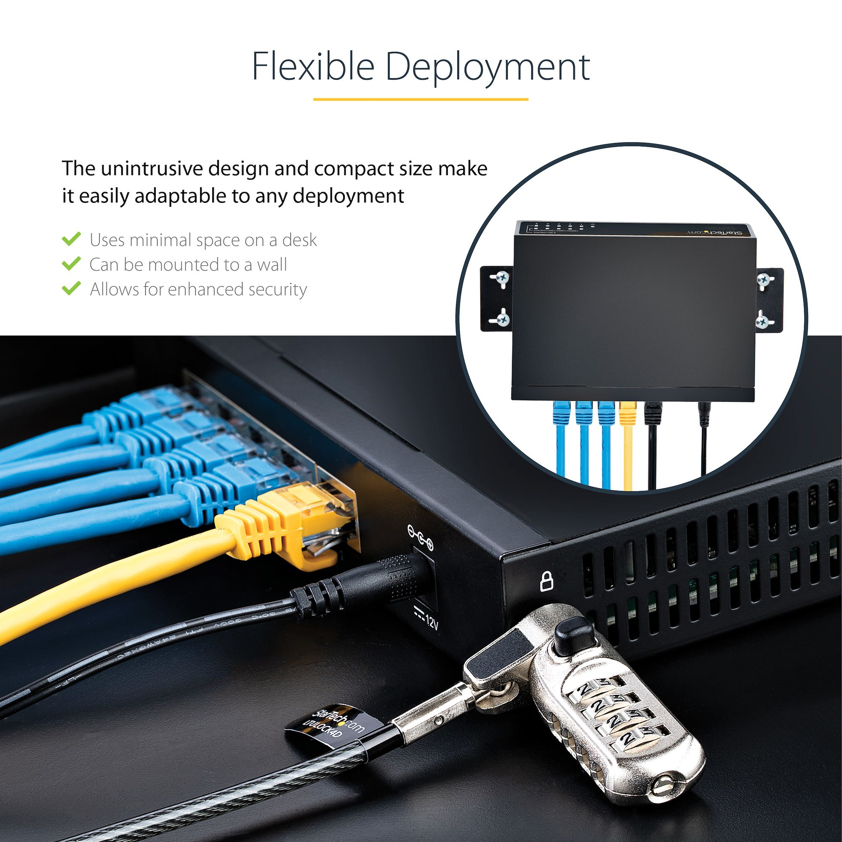

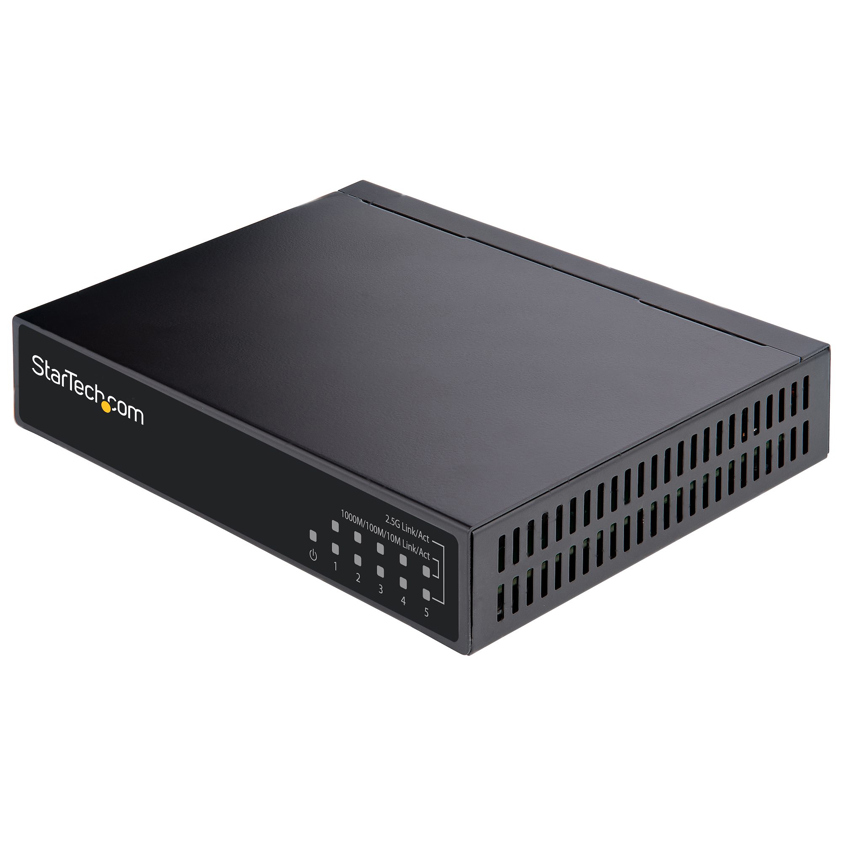

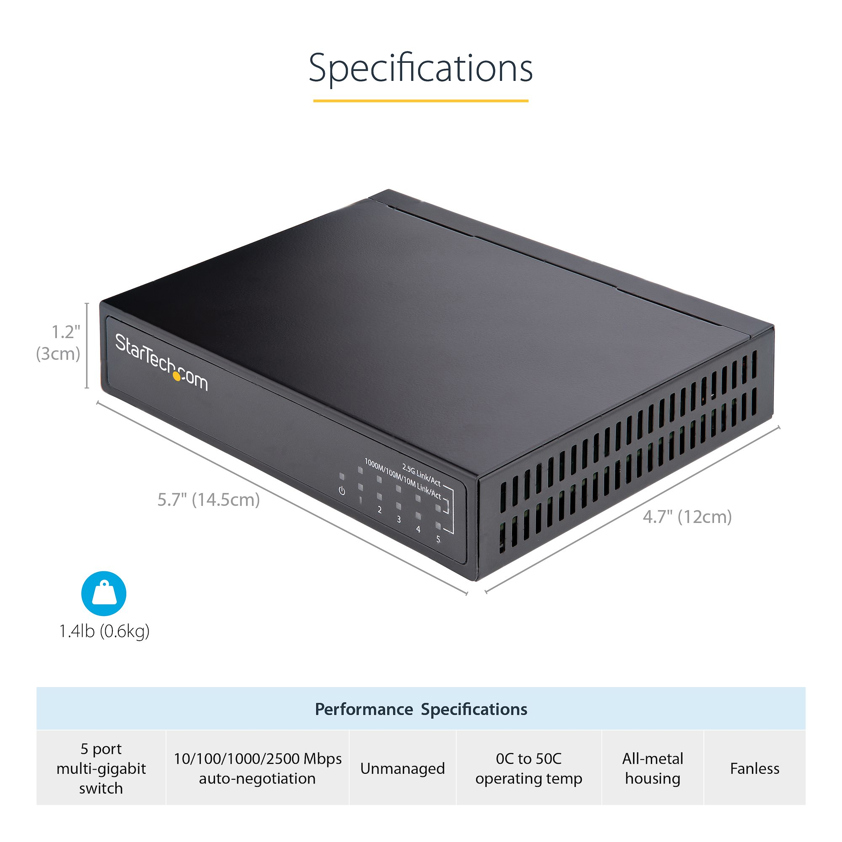

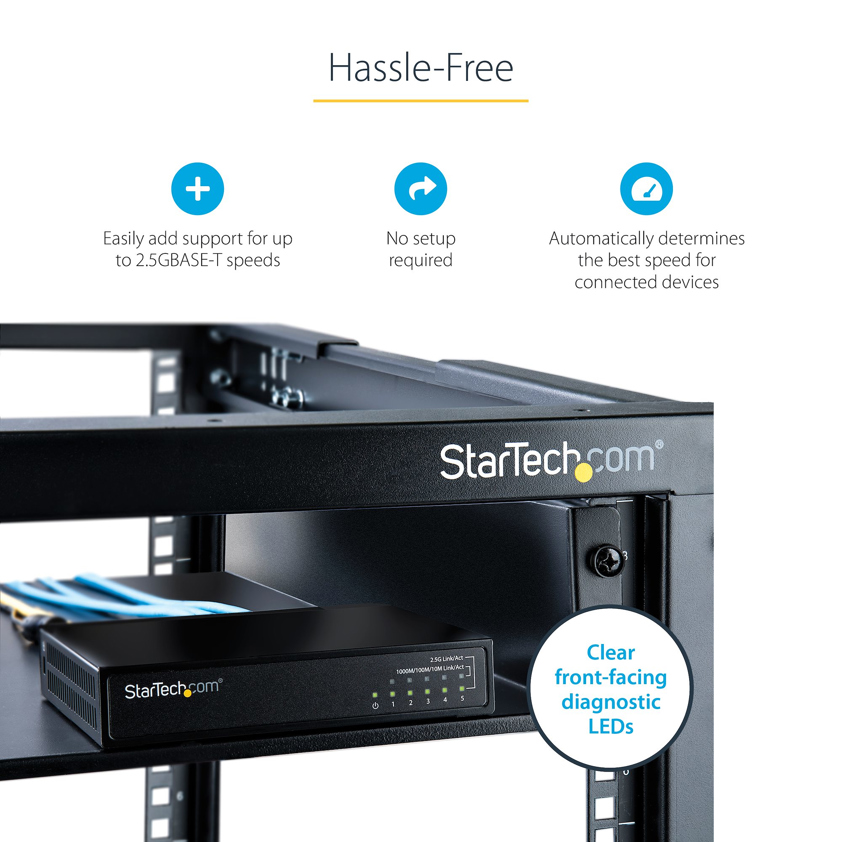

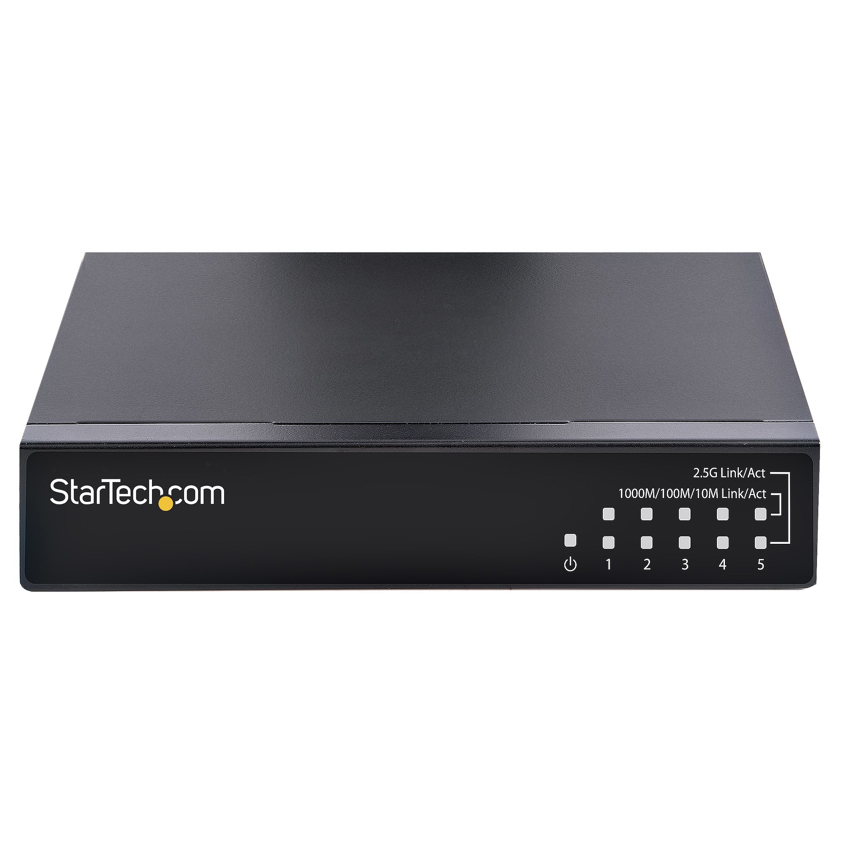

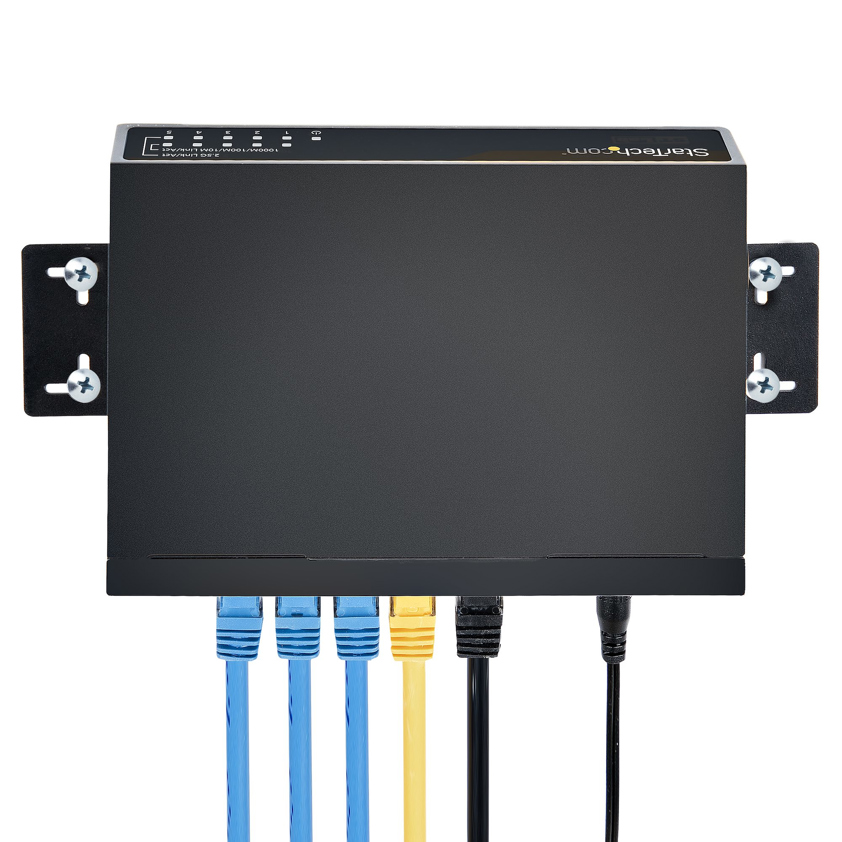

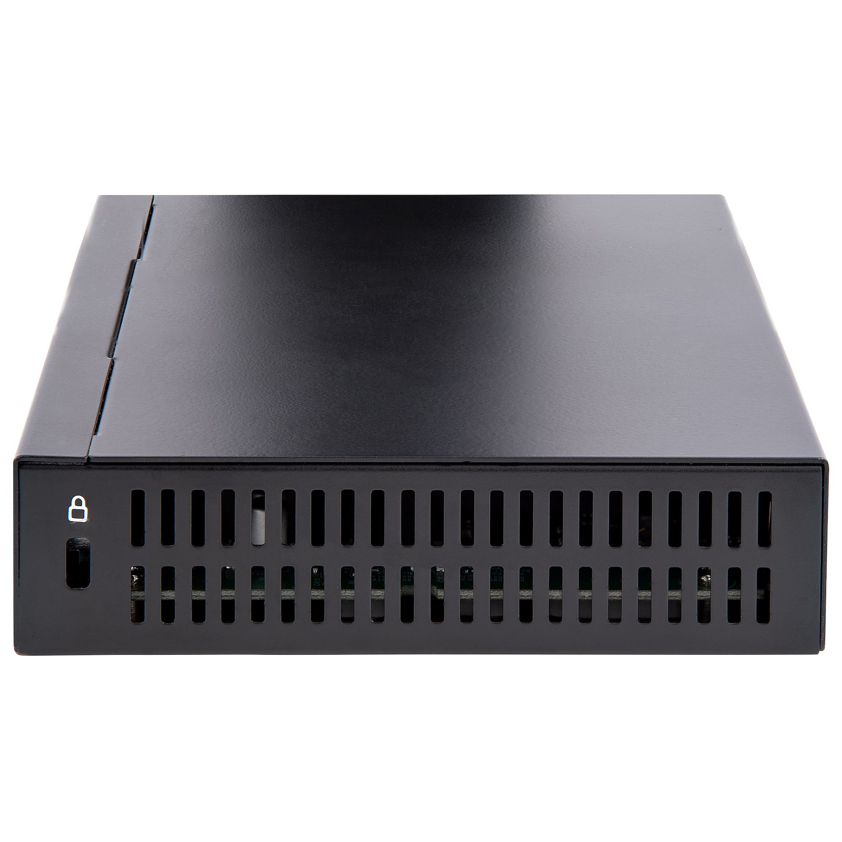

The 2.5G switch offers a security K-slot for more permanent and secure setups (cable not included). The unintrusive design and small dimensions (6.1x4.7x1.1 inch / 155x120x30 mm) make it easily adaptable to any deployment and has clear diagnostic LEDs that show the status of the devices at a glance. Additional features such as 9K jumbo frames, full-duplex, 16K MAC address table, QoS IEEE 802.1p, and wall mounting kit give you the flexibility to use it in a multitude of scenarios.
The DS52000 is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
StarTech.com Unmanaged 2.5G Switch - 5 Port Gigabit Switch - 2.5GBASE-T Unmanaged Ethernet Switch - Ethernet Splitter - Din Rail or Wall Mount - Multi-Gigabit - Auto-MDIX - 9K Jumbo
SKU: DS52000£42.23 ex VAT
£50.67 inc VAT

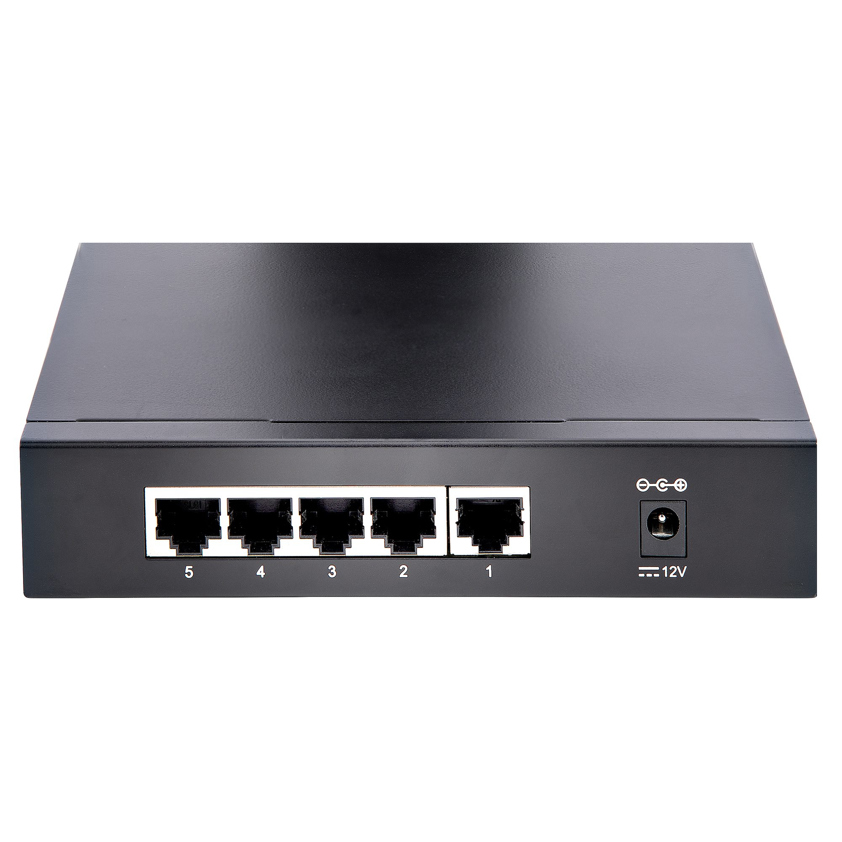

In stockPorts & interfaces Copper ethernet cabling technology 10BASE-T, 1000BASE-TX, 2500BASE-T Basic switching RJ-45 Ethernet ports quantity 5 Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500) Power connector DC-in jack 2.5G Ethernet (copper) ports quantity 5 Power Power connector DC-in jack Output voltage 12 V Power plug type Type M Output current 1 A Power supply included Yes AC input voltage 100 - 240 V Input current 0.5 A Power source AC/DC Technical details Product colour Black Housing material Steel Rack mounting No Compliance certificates CE, RoHS Management features Switch type Unmanaged Quality of Service (QoS) support Yes Network Cable types supported Cat5e, Cat6, Cat6a Copper ethernet cabling technology 10BASE-T, 1000BASE-TX, 2500BASE-T Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x Full duplex Yes Auto MDI/MDI-X Yes 10G support No Data transmission Jumbo frames 9000 Switching capacity 2.5 Gbit/s Store-and-forward Yes Jumbo frames support Yes Design Wall mountable Yes Product colour Black LED indicators Yes Housing material Steel Rack mounting No Performance Maximum cable length 100 m Harmonized System (HS) code 85176990 Indication LED indicators Yes Power over Ethernet (PoE) Power over Ethernet (PoE) No Operational conditions Storage temperature (T-T) -20 - 60 °C Operating temperature (T-T) 0 - 45 °C Operating relative humidity (H-H) 10 - 90% Weight & dimensions Width 120 mm Depth 145 mm Height 30 mm Weight 600 g Packaging data Wall mounting kit Yes AC adapter included Yes Quick start guide Yes Package width 285 mm Package depth 135 mm Package height 70 mm Package weight 700 g Logistics data Master (outer) case width 305 mm Master (outer) case length 370 mm Master (outer) case height 290 mm Products per master (outer) case 10 pc(s) Harmonized System (HS) code 85176990 Packaging content Wall mounting kit Yes AC adapter included Yes Quick start guide Yes Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
