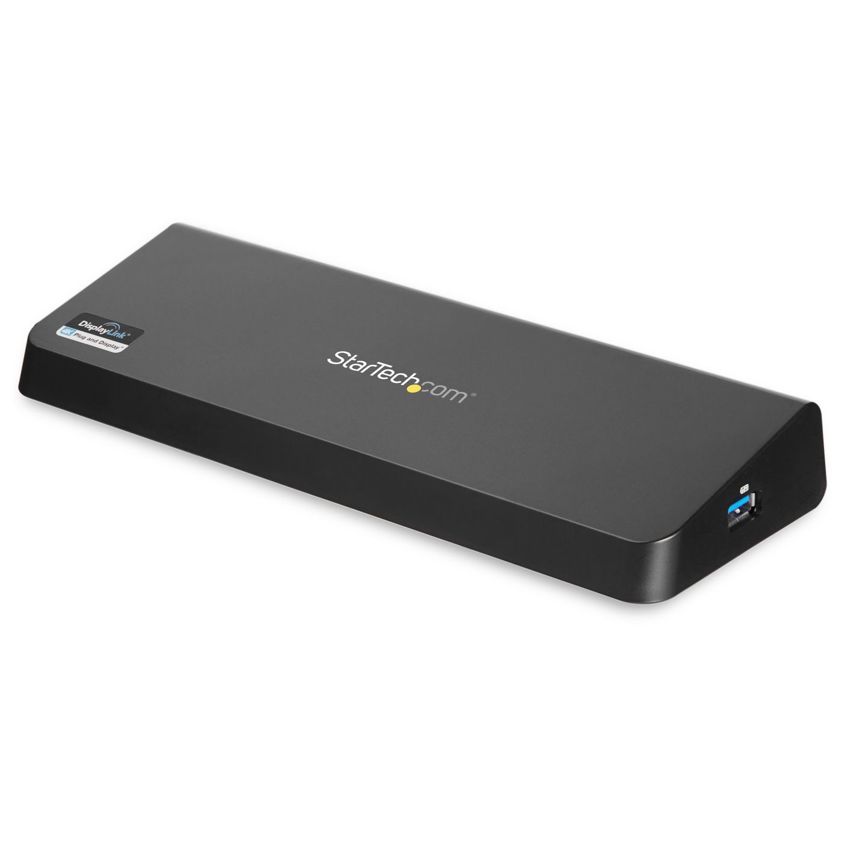

Laptop Docking Station | Mac & Windows® | USB Fast Charge Port | 4 USB Ports | TAA Compliant
This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).
4K Ultra HD Resolutions
This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).
Maximum Supported Resolutions*
Video Output Configuration
Max DisplayPort Resolution
Max HDMI Resolution
DisplayPort
(Single Display)
3840 x 2160p (4K)
N/A
HDMI
(Single Display)
N/A
2560 x 1440p
DisplayPort and HDMI
(Two Displays)
2048 x 1152p
2048 x 1152p
*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Integrated USB 3.0 Hub
The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.
USB Fast Charge
The USB 3.0 dock’s always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.
Easy to Use
This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows® USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
StarTech.com USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort - USB 3.0 to 4x USB-A, Ethernet, HDMI and DP - USB Type A Universal Laptop Docking Station for Mac & Windows
SKU: USB3DOCKHDPC£81.88 ex VAT
£98.26 inc VAT
In stockPorts & interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 Headphone connectivity 3.5 mm Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B USB connector type USB Type-A Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 DisplayPorts quantity 1 Headphone outputs 1 Connectivity technology Wired Network Full duplex Yes Auto MDI/MDI-X Yes Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Wake-on-LAN ready Yes Ethernet LAN Yes Ethernet LAN data rates 10,100,1000 Mbit/s Ethernet LAN (RJ-45) ports 1 Performance UASP support Yes Maximum digital resolution 3840 x 2160 pixels Full duplex Yes Auto MDI/MDI-X Yes Product colour Black Card reader integrated No Brand compatibility Any brand Cable lock slot Yes LED indicators Activity, Link Data transfer rate 5 Gbit/s Charging function Yes Certification CE, FCC, DisplayLink Housing material Plastic, Steel USB data transfer rates 5000 Mbit/s Technical details Product colour Black Brand compatibility Any brand Cable lock slot Yes Data transfer rate 5 Gbit/s Charging function Yes Cable length 0.6 m Harmonized System (HS) code 84733020 Compliance certificates RoHS Products per master (outer) case 10 pc(s) Master (outer) case width 390 mm Master (outer) case length 426 mm Master (outer) case height 302 mm Products per shipping (inner) case 150 pc(s) Storage Card reader integrated No Power Input current 1.5 A Compatible power plug types AU, EU, UK, US AC input voltage 100-240 V Power consumption (typical) 32.5 W Output voltage 5 V Output current 6.5 A Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura Mac compatibility Yes Other operating systems supported ChromeOS Indication LED indicators Activity, Link Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -10 - 80 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensions Weight 277 g Width 76 mm Depth 227 mm Height 24 mm Package weight 1.1 kg Package width 251 mm Package depth 198 mm Package height 71 mm Design Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura Product colour Black Cable lock slot Yes LED indicators Activity, Link Certification CE, FCC, DisplayLink Packaging data Package weight 1.1 kg Package width 251 mm Package depth 198 mm Package height 71 mm Packaging content Drivers included Yes Manual Yes Cables included AC, USB AC adapter included Yes Certificates Certification CE, FCC, DisplayLink Logistics data Products per master (outer) case 10 pc(s) Master (outer) case width 390 mm Master (outer) case length 426 mm Master (outer) case height 302 mm Products per shipping (inner) case 150 pc(s) Harmonized System (HS) code 84733020 Other features USB data transfer rates 5000 Mbit/s Chipset DisplayLink - DL-5900, VLI - VL812 Cable length 0.6 m Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
