StarTech.com USB C Dock - Dual Monitor HDMI & DisplayPort 4K 30Hz - USB Type-C Laptop Docking Station 60W Power Delivery, SD, 4-port USB-A 3.0 Hub, GbE, Audio - Thunderbolt 3 Compatible

SKU: DK30CHDPPDUE
£114.16 ex VAT
£136.99 inc VAT
Product in stockIn stock
  • Add dual monitors (4K HDMI® & 4K DP), an SD card reader, multiple USB ports, GbE, and audio to your laptop, plus power and charge your laptop

    This dual-monitor USB-C™ dock transforms your MacBook or Windows® laptop into a dual Ultra HD 4K workstation, with support for 4K DisplayPort and HDMI monitors. It gives you all the connections to create a fully capable workstation, including an SD™ card reader slot.

    The USB-C docking station features USB Power Delivery 2.0 (60W), to power and charge your laptop as you work. It’s the perfect companion for your MacBook Pro or other Thunderbolt™ 3 equipped laptop.

    Create a dual-4K video workstation

    The USB-C dock expands the display capabilities of your laptop across two Ultra HD 4K monitors. It enables DisplayLink® and USB-C DP Alt Mode to allow dual 4K video output to HDMI and DisplayPort 4K monitors. With the dual-4K dock, you can connect:

    • 1x 4K DisplayPort display at 3840 x 2160 resolution @ 30Hz
    • 1x 4K HDMI display at 3840 x 2160 resolution @ 30Hz

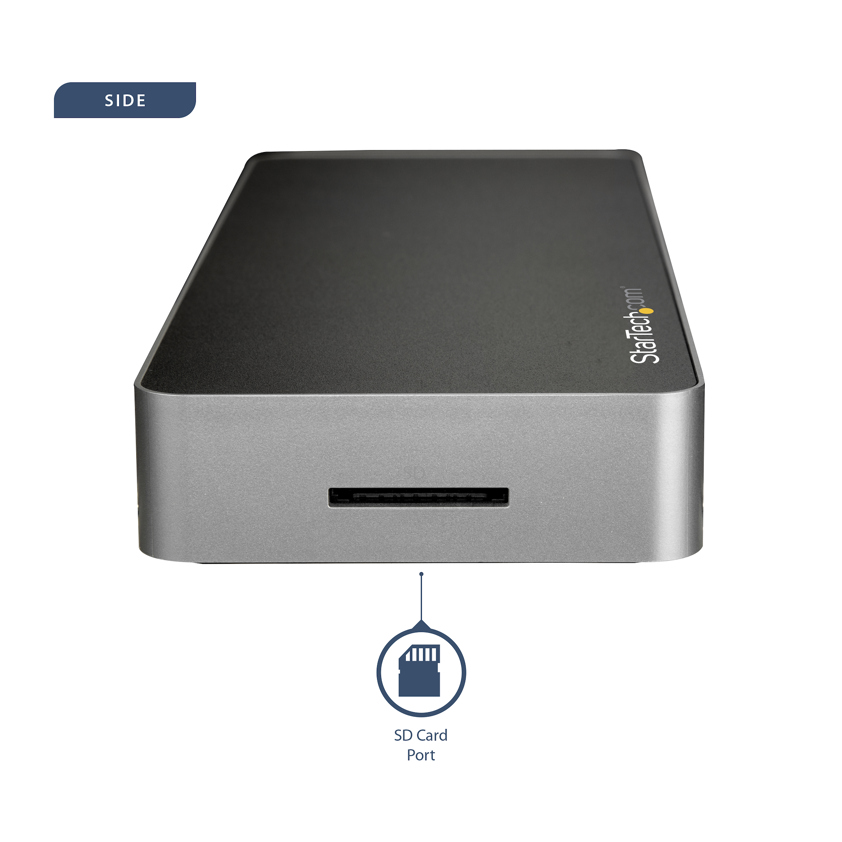

    SD™ card reader

    The dock provides direct access to your SD memory cards or microSD™ cards (with adapter). The SD card slot can also be used for additional storage and backup through macOS X Time Machine or Windows 10 File History.

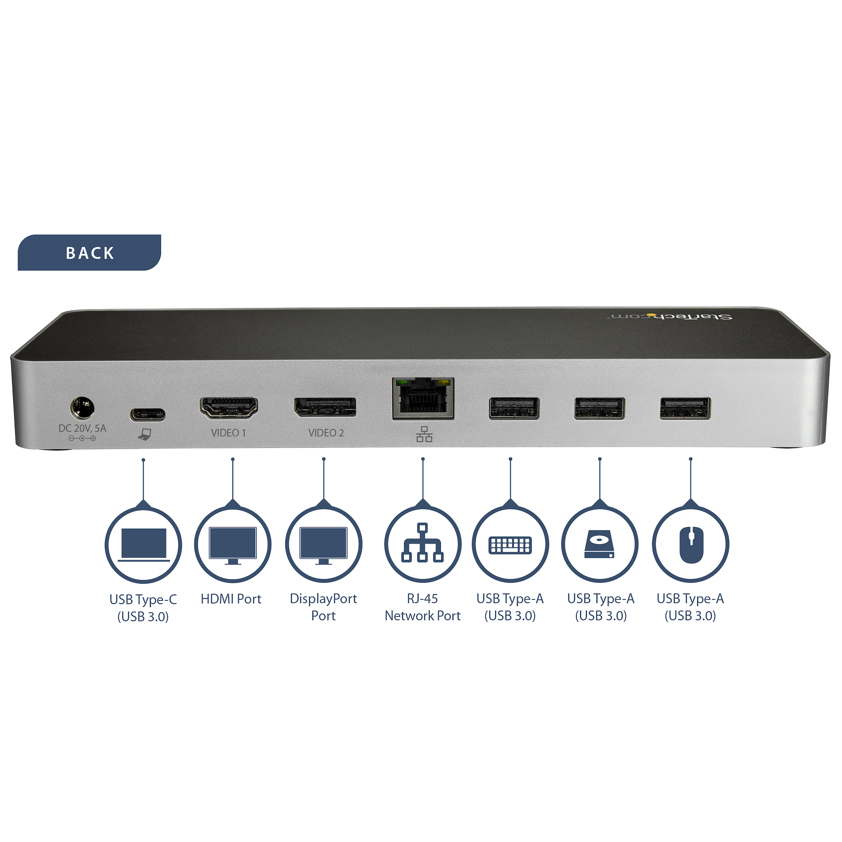

    Ample connections

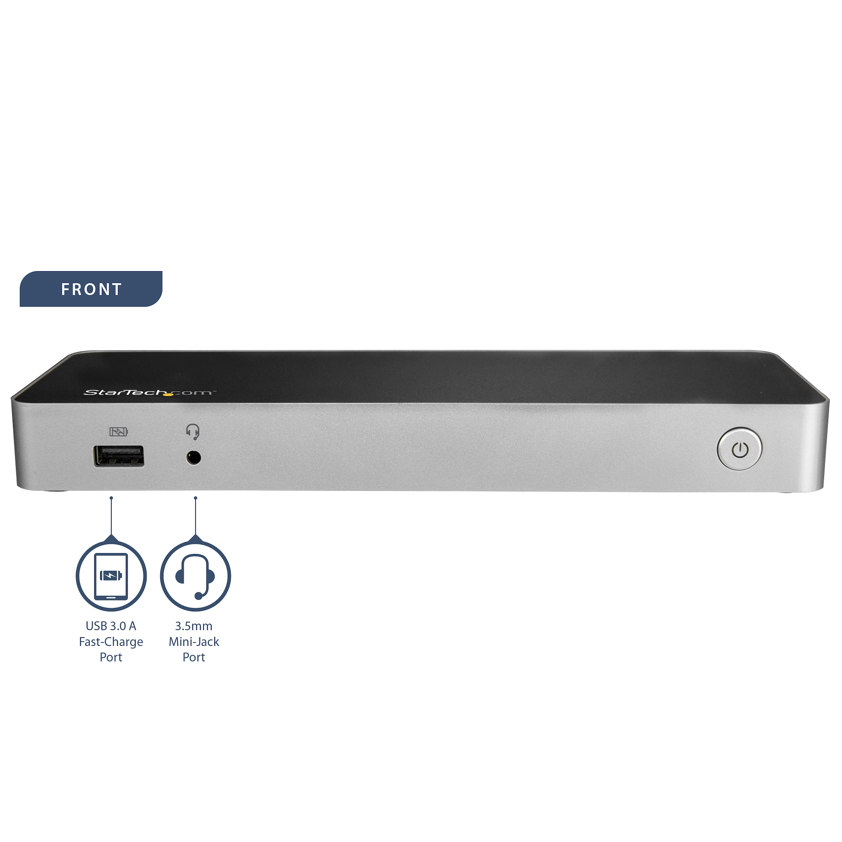

    The dock provides four USB 3.0 (Type-A) ports to connect your peripherals, including a USB 3.0 fast-charge and sync port, a Gigabit Ethernet port, and combined 3.5 mm audio and microphone port.

    Universal support

    Compatible with Mac and Windows, this universal dock works with USB-C and Thunderbolt 3 enabled laptops. Connected Device Transparency with the StarTech.com MAC Address Changer Utility
    The DK30CHDPPDUE, includes a free Windows® application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer’s MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat , or e-mail . The DK30CHDPPDUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.

    The StarTech.com Advantage
  • Ports & interfaces
    Combo headphone/mic portYes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
    Headphone connectivity3.5 mm
    Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
    Ethernet LAN (RJ-45) ports1
    HDMI ports quantity1
    DisplayPorts quantity1
    Microphone inNo
    Headphone outputs1
    DC-in jackYes
    Connectivity technologyWired
    USB Power DeliveryYes
    USB Power Delivery up to60 W
    Network
    Full duplexYes
    Auto MDI/MDI-XYes
    Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
    Ethernet LANYes
    Ethernet LAN data rates10,100,1000 Mbit/s
    Ethernet LAN (RJ-45) ports1
    Performance
    UASP supportYes
    Maximum digital resolution3840 x 2160 pixels
    Full duplexYes
    Auto MDI/MDI-XYes
    Number of displays supported2
    On/off switchYes
    Product colourBlack, Silver
    Card reader integratedYes
    Data transfer rate5 Gbit/s
    Compatible memory cardsMMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
    CertificationCE, FCC, REACH
    Housing materialPlastic
    Technical details
    Product colourBlack, Silver
    Data transfer rate5 Gbit/s
    Cable length1 m
    Harmonized System (HS) code84733020
    Compliance certificatesRoHS
    Products per master (outer) case6 pc(s)
    Master (outer) case width280 mm
    Master (outer) case length335 mm
    Master (outer) case height302 mm
    Storage
    Card reader integratedYes
    Compatible memory cardsMMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
    Power
    Power source typeAC
    Input current2 A
    Compatible power plug typesEU, UK
    AC input voltage100 - 240 V
    Output voltage20 V
    Output current5 A
    Software
    Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
    Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
    Mac compatibilityYes
    Other operating systems supportedChromeOS
    Operational conditions
    Operating temperature (T-T)0 - 60 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 95%
    Weight & dimensions
    Weight261 g
    Width80 mm
    Depth220 mm
    Height25 mm
    Package weight1.3 kg
    Package width155 mm
    Package depth270 mm
    Package height90 mm
    Design
    Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
    Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
    Product colourBlack, Silver
    CertificationCE, FCC, REACH
    Packaging data
    Package weight1.3 kg
    Package width155 mm
    Package depth270 mm
    Package height90 mm
    Packaging content
    ManualYes
    Cables includedUSB
    AC adapter includedYes
    Certificates
    CertificationCE, FCC, REACH
    Logistics data
    Products per master (outer) case6 pc(s)
    Master (outer) case width280 mm
    Master (outer) case length335 mm
    Master (outer) case height302 mm
    Harmonized System (HS) code84733020
    Other features
    ChipsetDisplayLink - DL-5700, Genesys Logic - GL3215, VIA Labs - VL813, Texas Instruments - TPS65983
    Cable length1 m
