4K 60Hz HDMI | 100W PD Pass-Through | 12" (30cm) Cable | 3-Port USB Hub (10Gbps)
This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns a USB-C™ laptop or tablet into a workstation, anywhere you go.
Enhance Productivity

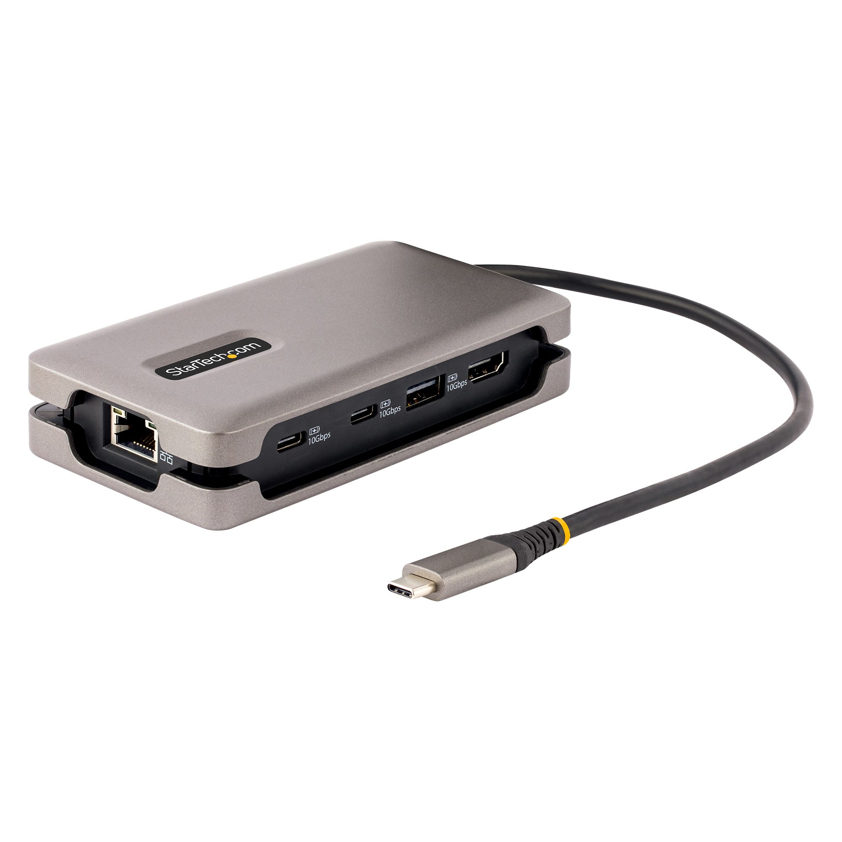

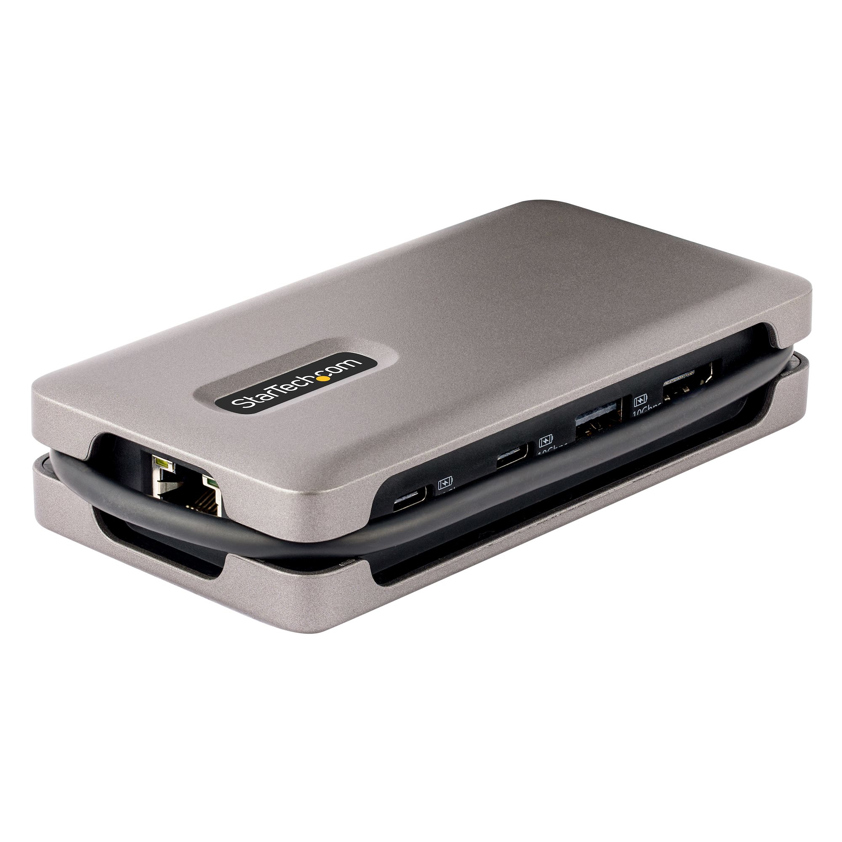

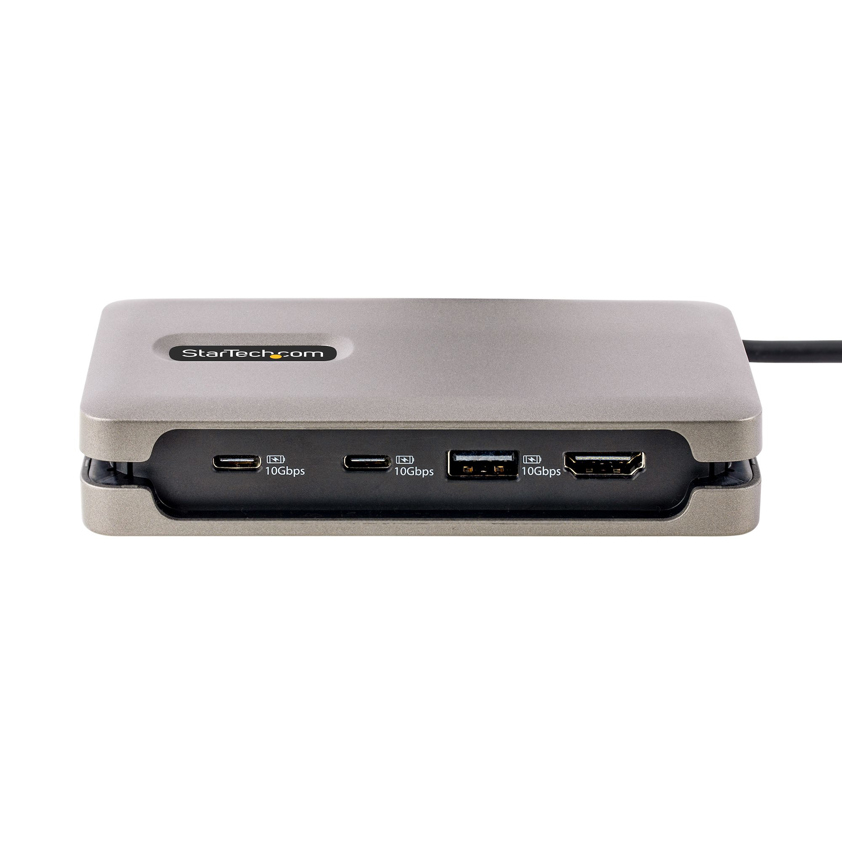

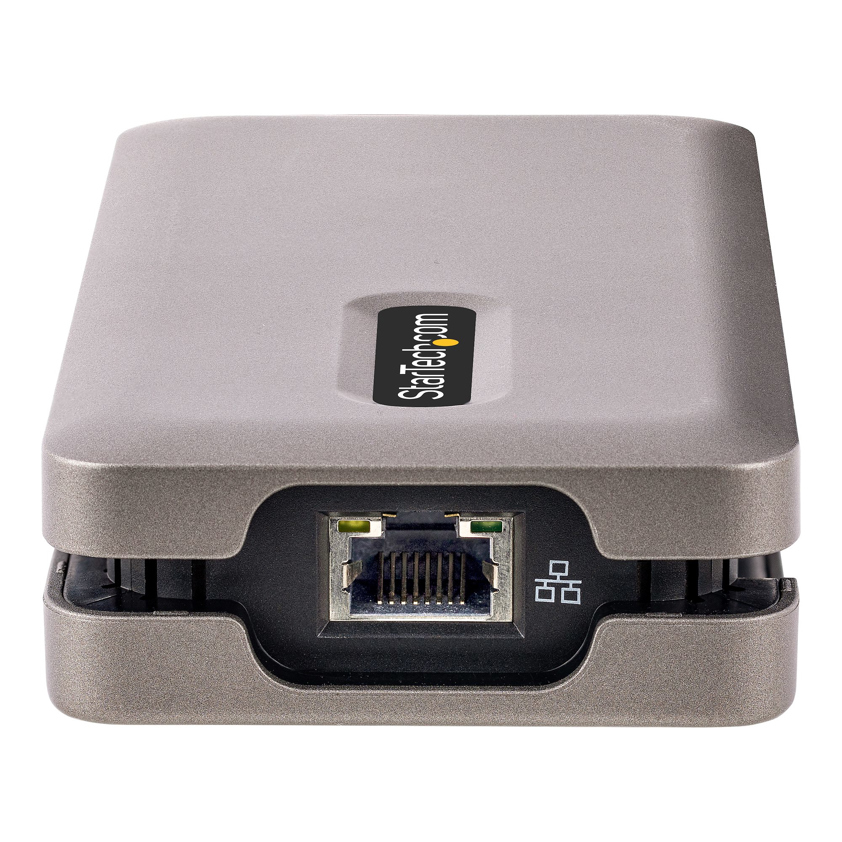

The portable docking station provides 4K 60Hz HDMI video output, two USB 3.2 Gen 2 Type-C (10Gbps) ports, one USB 3.2 Gen 2 Type-A (10Gbps) port, and a Gigabit Ethernet port (PXE and WoL support) all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. A USB-C DisplayPort 1.4 Alt-Mode port is required for 4K 60Hz HDMI output.
Host Connection
Maximum Resolution
DP 1.4 Alternate Mode
Up to 4K 60Hz
DP 1.2 Alternate Mode
Up to 4K 30Hz
Connect and Charge Your USB Devices

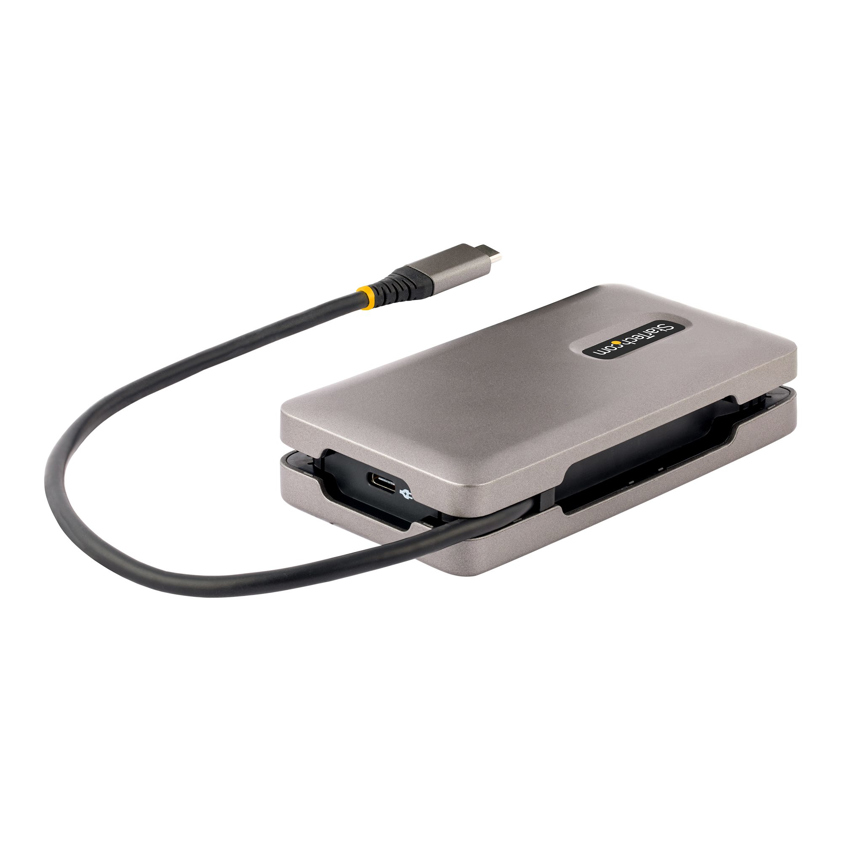

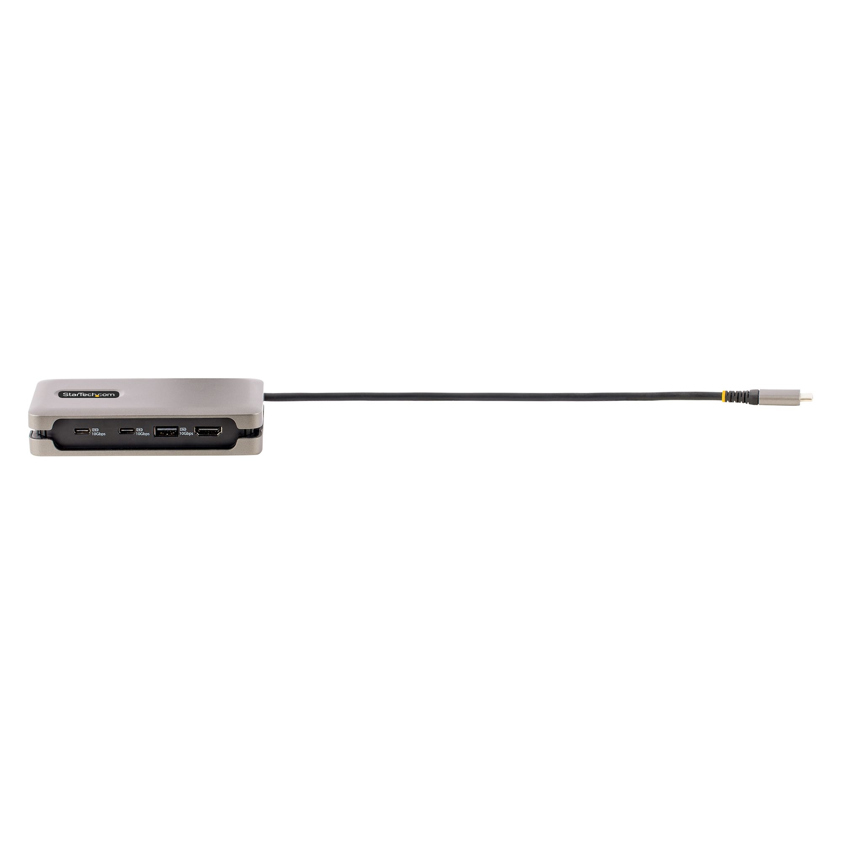

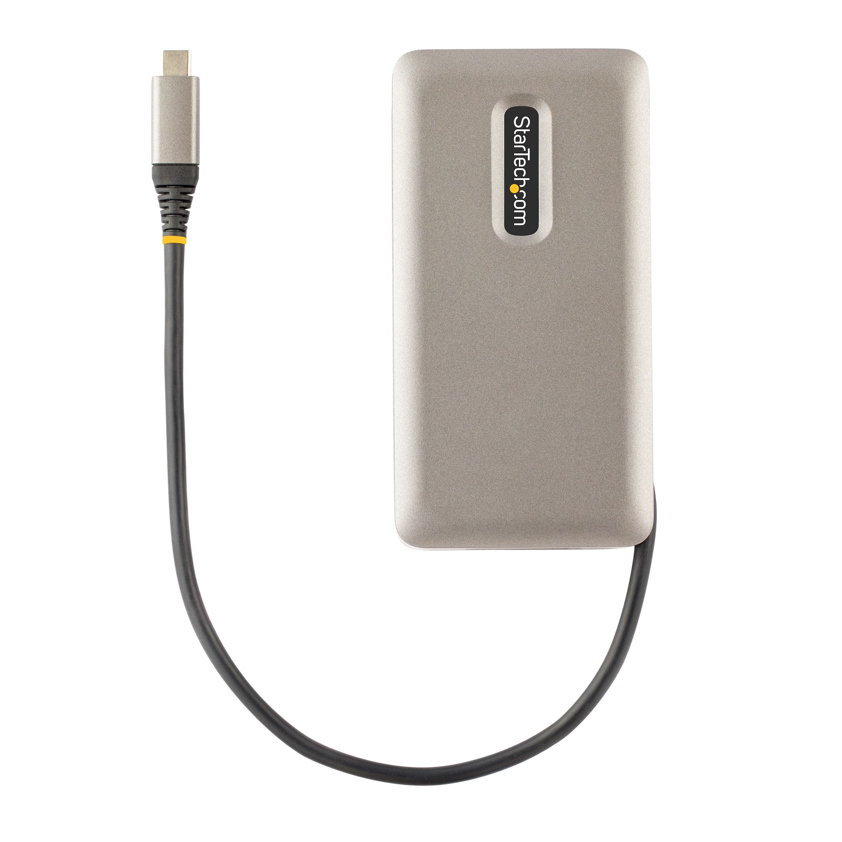

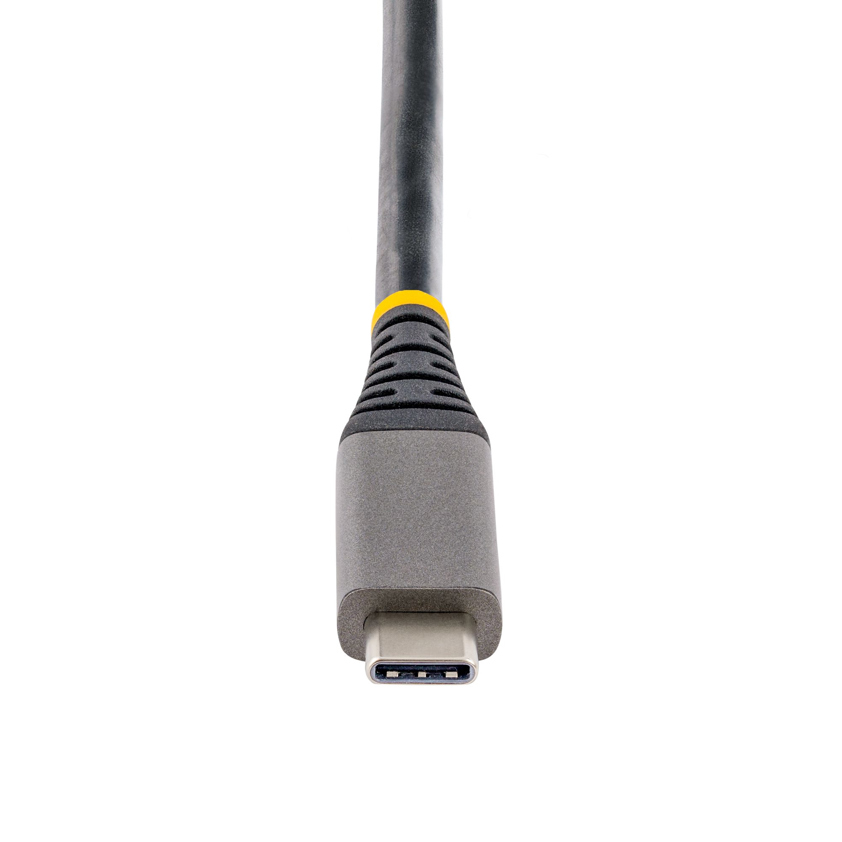

The USB hub features two USB-C (10Gbps) ports and one USB-A (10Gbps) port for connecting up to three USB peripherals. The USB PD pass-through port enables charging of the host laptop. USB PD is only available when a USB-C power adapter is connected to the PD pass-through port. Connect a USB-C Power Adapter to use as a standalone USB peripheral charger. The extra-long attached 12inch (30cm) USB-C host cable enables an extended reach for setup flexibility.
Portable Connectivity

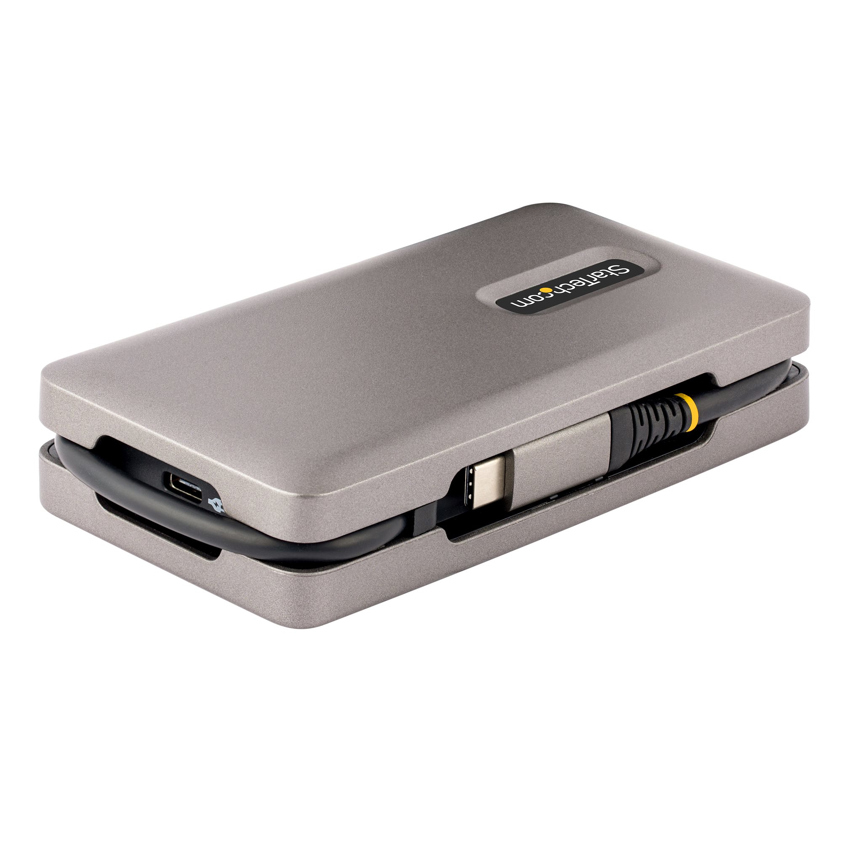

For use while travelling, the USB-C adapter can operate bus-powered alone, or with a USB-C power adapter to enable laptop and peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• Mac Address Pass-Through Utility: To improve network security.
• USB Event Monitoring Utility: To track and log connected USB devices
• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
This product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
StarTech.com USB-C Multiport Adapter, 4K 60Hz HDMI 2.0b, HDR, USB 3.2 Gen 2 10Gbps Hub (2xUSB-C, 1xUSB-A), 100W PD Pass-Through, Mini Travel Dock, 12"/30cm Cable, Laptop Docking Station
SKU: DKT31CH2CPD3£19.29 ex VAT
£23.14 inc VAT
In stockPorts & interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2 Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 Microphone in No Connectivity technology Wired USB Power Delivery Yes USB Power Delivery revision 3.0 USB Power Delivery up to 100 W USB Type-C DisplayPort Alternate Mode Yes Network Full duplex Yes Ethernet LAN Yes Ethernet LAN data rates 10,100,1000 Mbit/s Ethernet LAN (RJ-45) ports 1 Performance UASP support Yes Maximum digital resolution 3840 x 2160 pixels Full duplex Yes Product colour Grey Card reader integrated No LED indicators Yes Data transfer rate 10 Gbit/s HD type 4K Ultra HD Housing material Plastic Maximum refresh rate 60 Hz High Dynamic Range (HDR) supported Yes Technical details Product colour Grey Data transfer rate 10 Gbit/s Cable length 0.3 m Sustainability compliance Yes Harmonized System (HS) code 84733020 Compliance certificates CE, RoHS Products per master (outer) case 70 pc(s) Master (outer) case width 465 mm Master (outer) case length 335 mm Master (outer) case height 440 mm Storage Card reader integrated No Power Power source type USB Power consumption (typical) 15 W Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 Mac operating systems supported Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Linux operating systems supported Yes Other operating systems supported ChromeOS Mobile operating systems supported Android, iPadOS Indication LED indicators Yes Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 0 - 85% Sustainability Sustainability compliance Yes Weight & dimensions Weight 93 g Width 64 mm Depth 124 mm Height 26 mm Package weight 149 g Package width 143 mm Package depth 172 mm Package height 30 mm Design Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 Mac operating systems supported Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Product colour Grey LED indicators Yes Packaging data Package weight 149 g Package width 143 mm Package depth 172 mm Package height 30 mm Logistics data Products per master (outer) case 70 pc(s) Master (outer) case width 465 mm Master (outer) case length 335 mm Master (outer) case height 440 mm Harmonized System (HS) code 84733020 Other features Chipset Realtek - RTD2172L, Realtek - RTL8153B, VIA - VL822, VIA - VL103 Cable length 0.3 m Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
