Test and verify USB-C power connections with this compact bi-directional USB-C Power Tester
This bi-directional USB-C Power Tester is a practical tool to accurately monitor voltage, current, and wattage in any USB-C power scenario. It is ideal for technicians and IT pros for immediate, clear test readings anywhere. Use this tester to monitor and maintain reliable performance in power-sensitive setups.

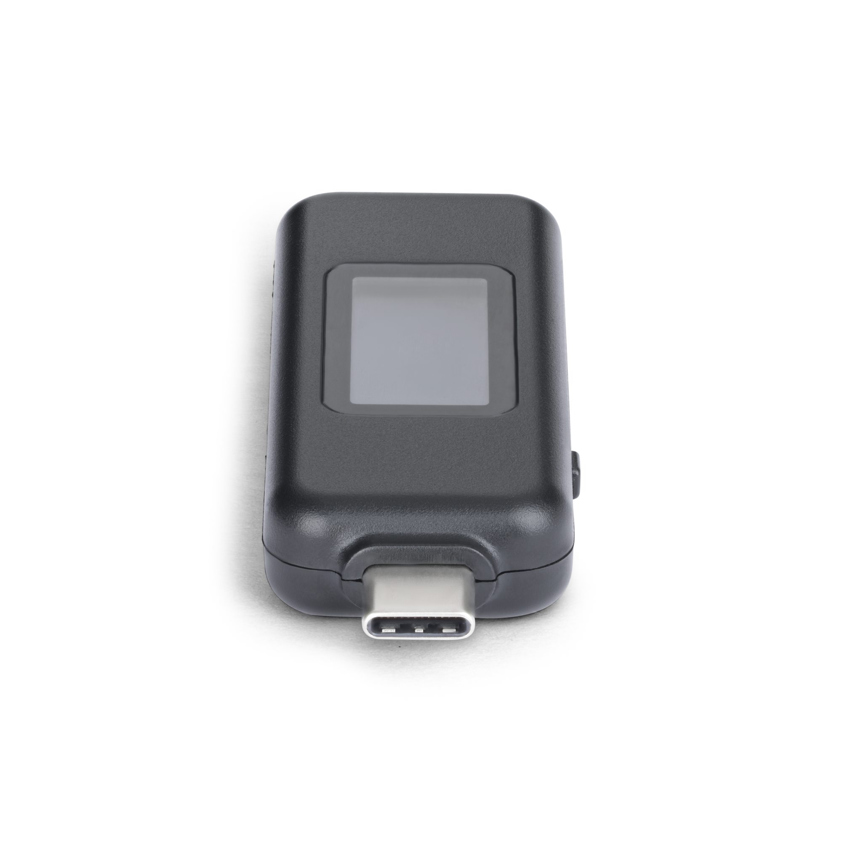

Compact Form Factor

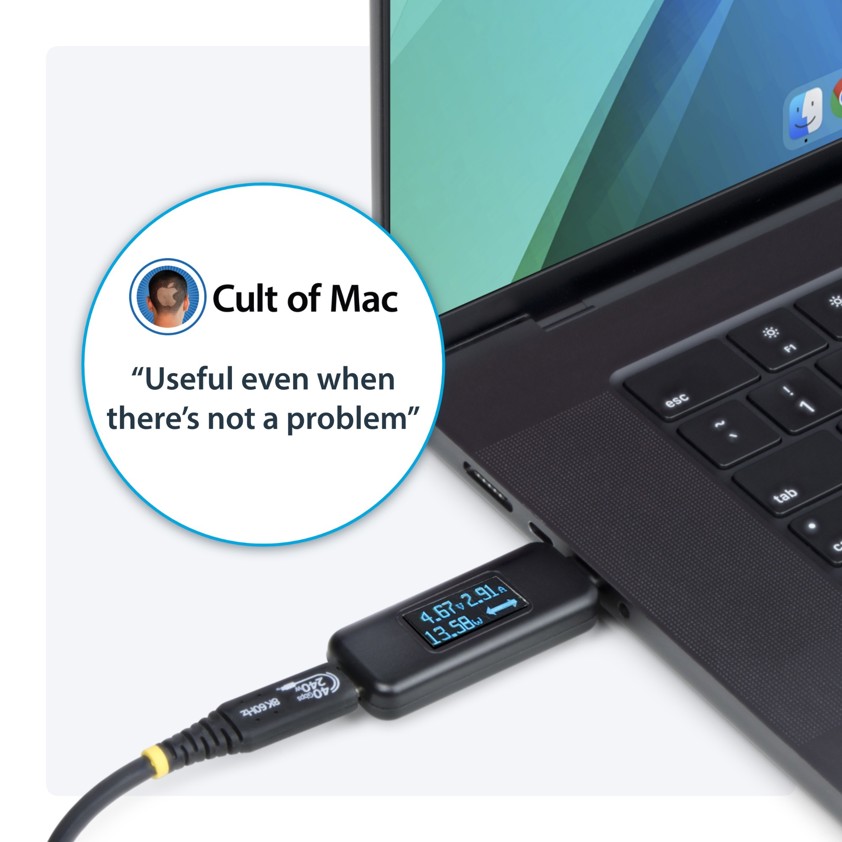

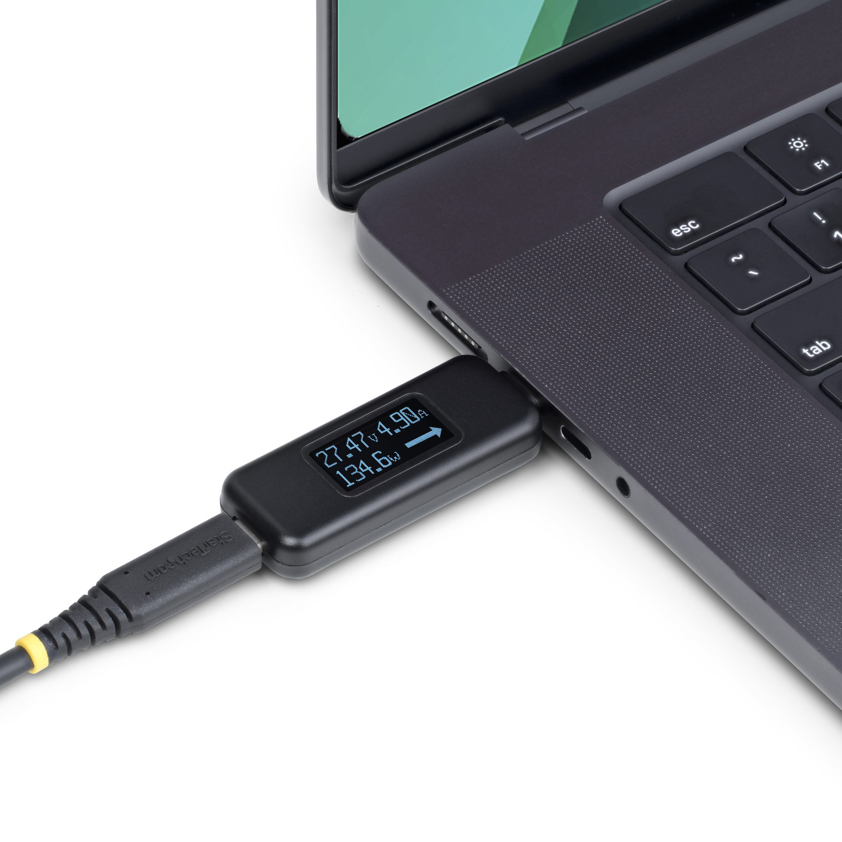

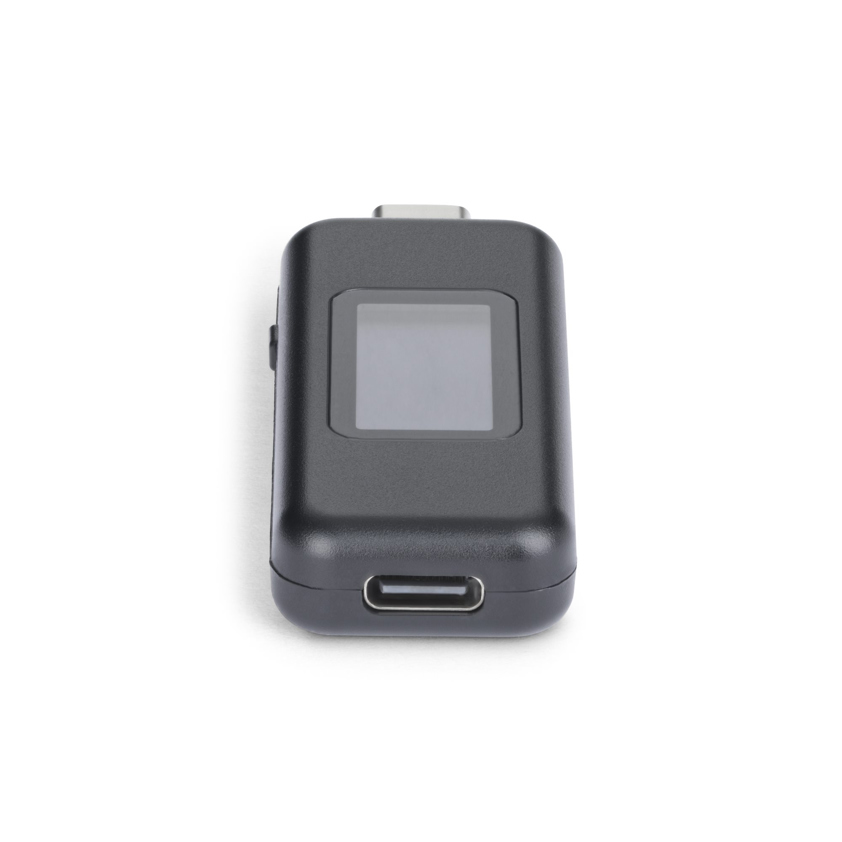

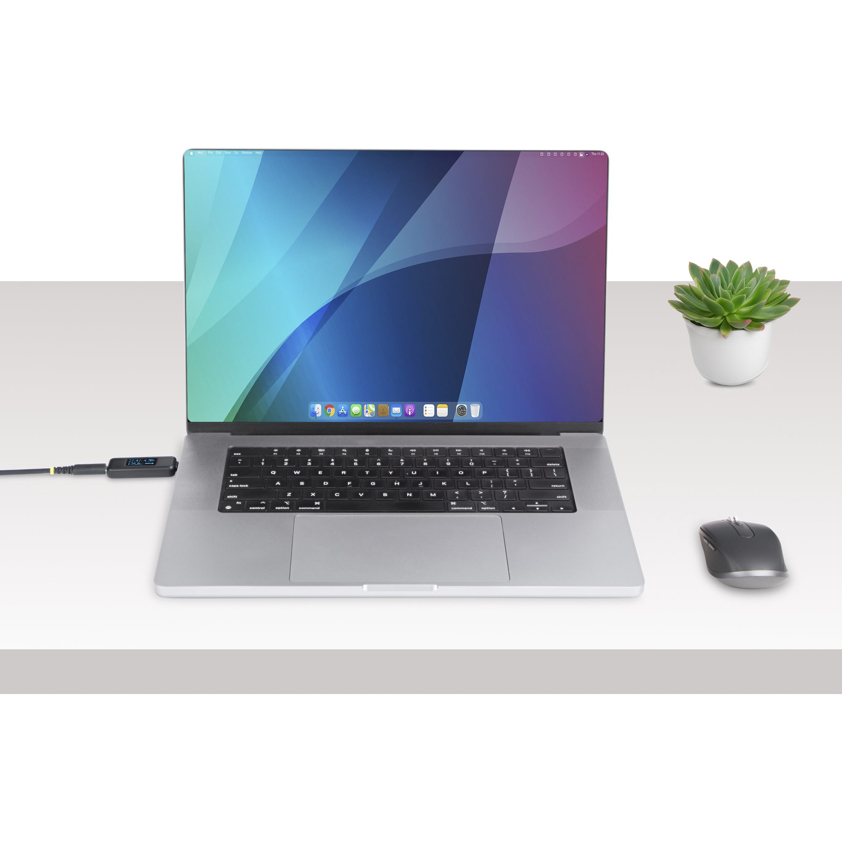

The USB-C Digital Power Tester is compact and suitable for testing mounted USB-C devices or hard-to-reach device ports. Its portable design makes it a lightweight and essential additional to any IT Pro's toolkit.
Streamline Power Diagnostics

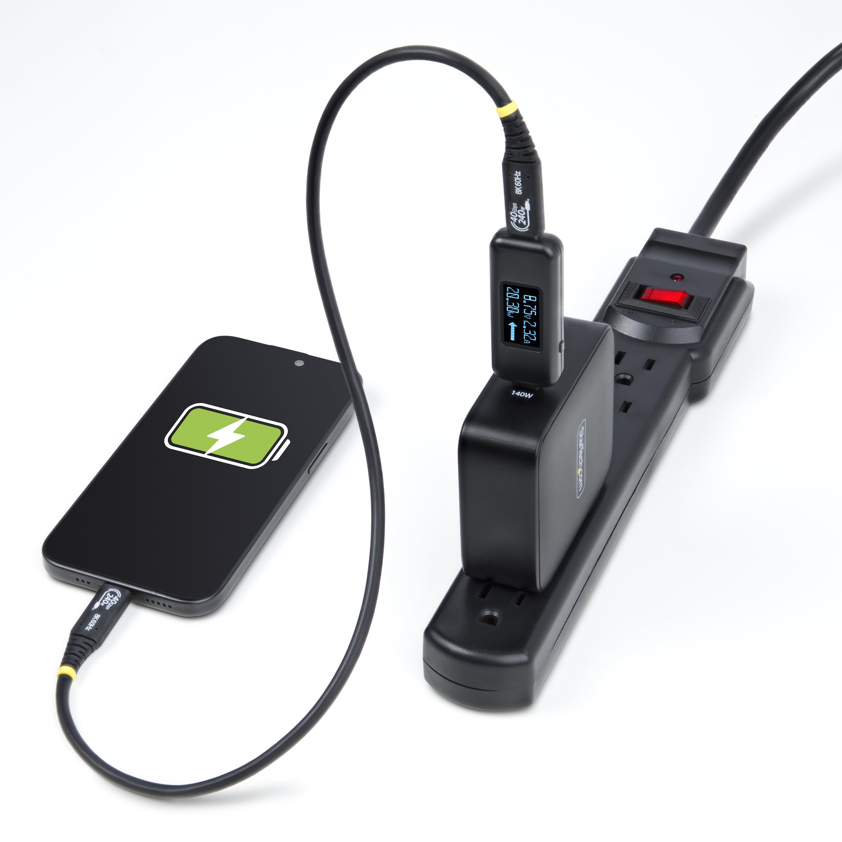

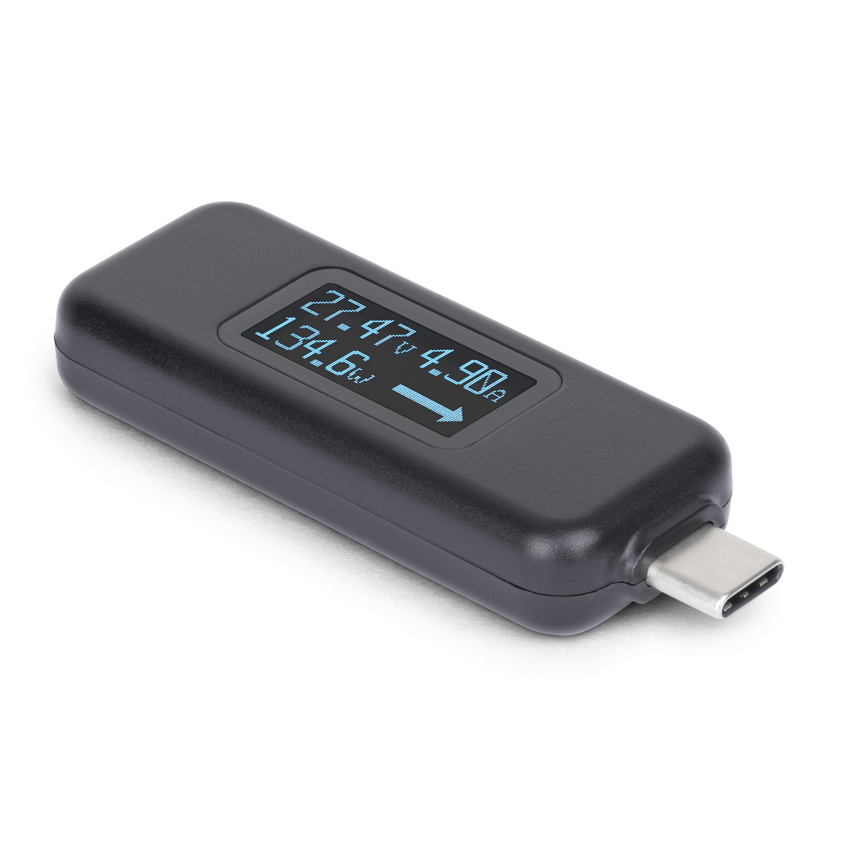

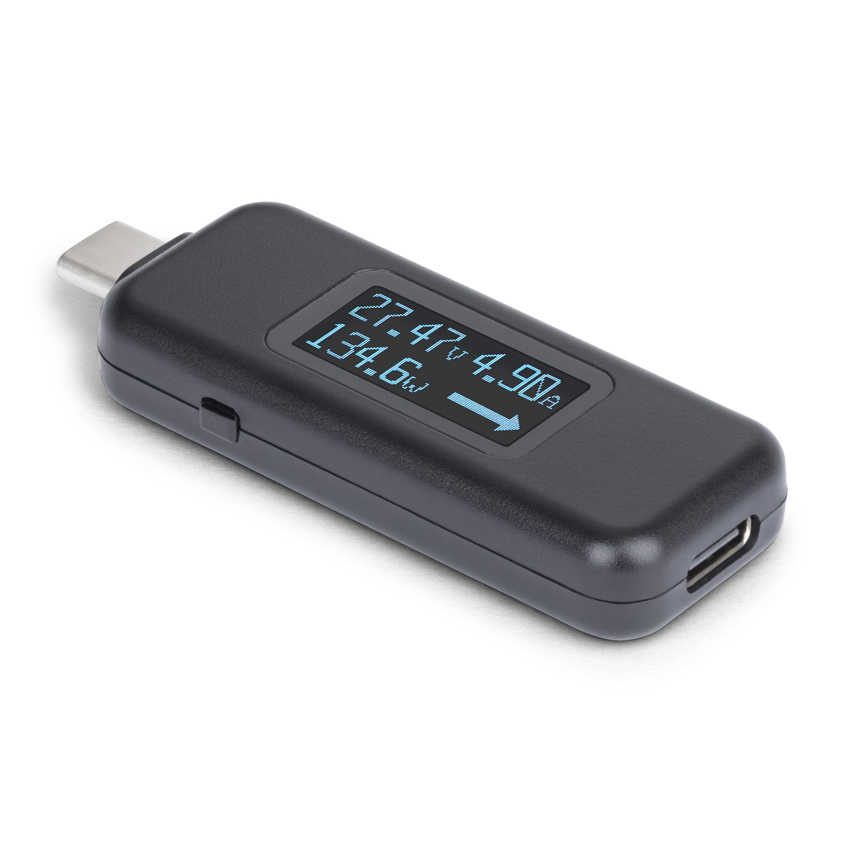

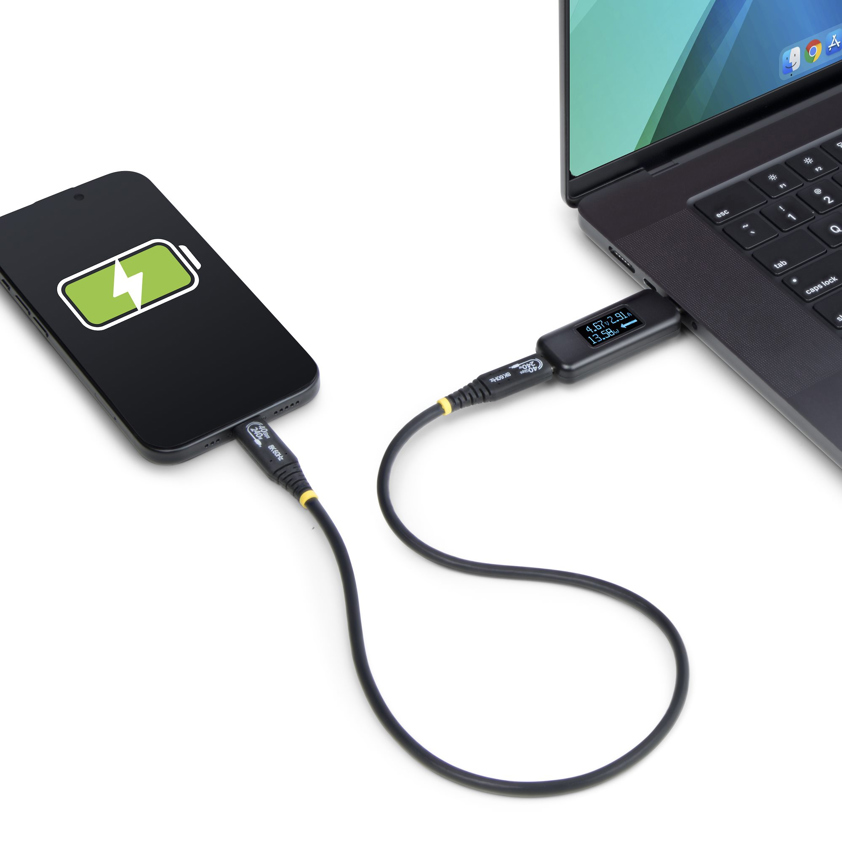

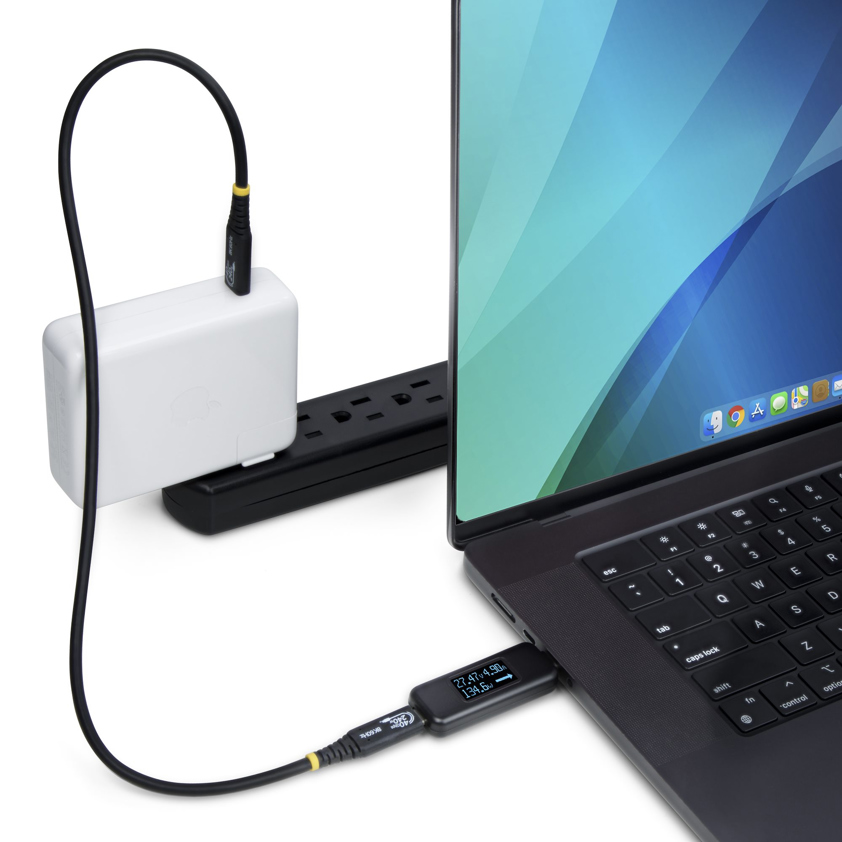

This USB-C tester can quickly diagnose power issues with docking stations, hubs, chargers, and connected devices. The digital display provides real-time measurements and rotates 180 degrees with the press of a button, ensuring clear visibility when testing power flow from any direction. Verify if USB-C cables are transferring power efficiently and ensure compliance for devices that require high power output.
Versatile USB-C Compatibility

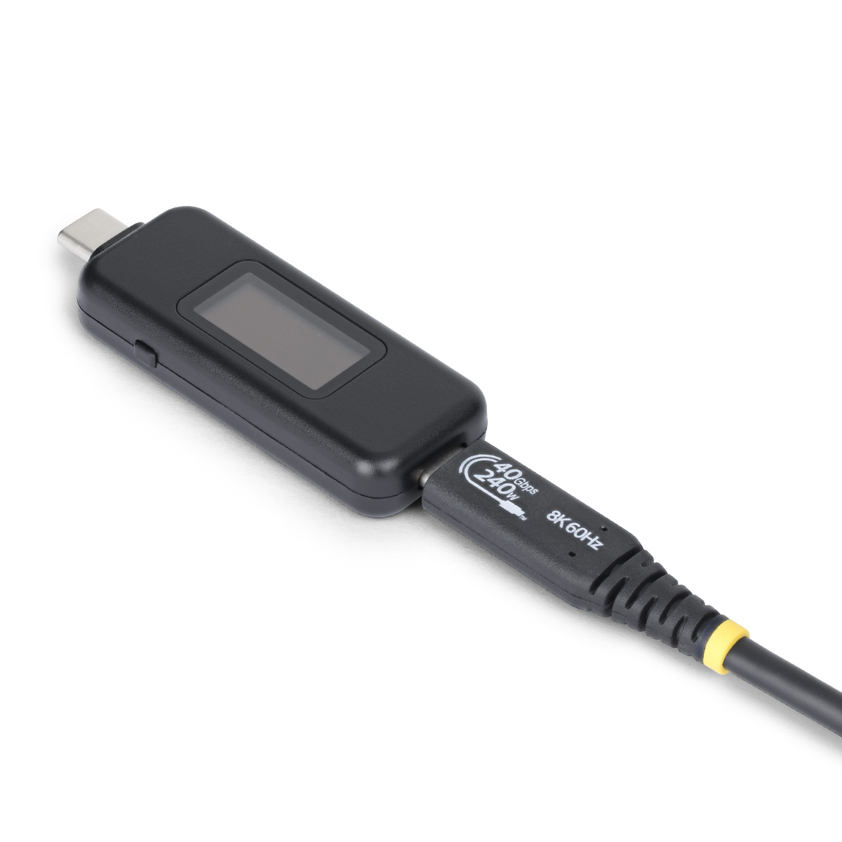

Supporting USB data pass-through up to 10Gbps and DP Alt Mode video, this Digital USB-C Multimeter accommodates a wide range of USB-C cables and devices. It measures power across a broad operating range of 4.5V to 50V and 50mA to 6.5A, while ensuring compatibility with USB Power Delivery 3.1 Extended Power Range (EPR) up to 240W. Note: Thunderbolt 3 devices are not supported.
The StarTech.com Advantage
StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional Voltage and Current Meter, Up to 240W PD EPR, Portable USB-C Cable and Port Power Meter Tester
SKU: USBC-PWRTESTER£15.42 ex VAT
£18.51 inc VAT
In stockTechnical details Testing type Amperage, Voltage, Wattage DC output voltage test 4.5V-50V Power connectors supported USB Type-C Built-in display Yes Backlight display Yes Backlight colour Blue Product colour Black Housing material Polycarbonate (PC) Input current 0.05 - 6.5 A USB version 3.2 Gen 2 (3.1 Gen 2) Maximum charging test 240 W Compliance certificates RoHS Output current 6.5 A DC input voltage test 4.5V-50V Host interface USB 3.2 USB Type C Output interface USB 3.2 USB Type C Weight & dimensions Width 57 mm Depth 23 mm Height 10 mm Weight 12 g Package width 80 mm Package depth 84 mm Package height 15 mm Package weight 28 g Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 85 °C Operating relative humidity (H-H) 5 - 95% Logistics data Master (outer) case width 430 mm Master (outer) case length 180 mm Master (outer) case height 270 mm Products per master (outer) case 150 pc(s) Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
