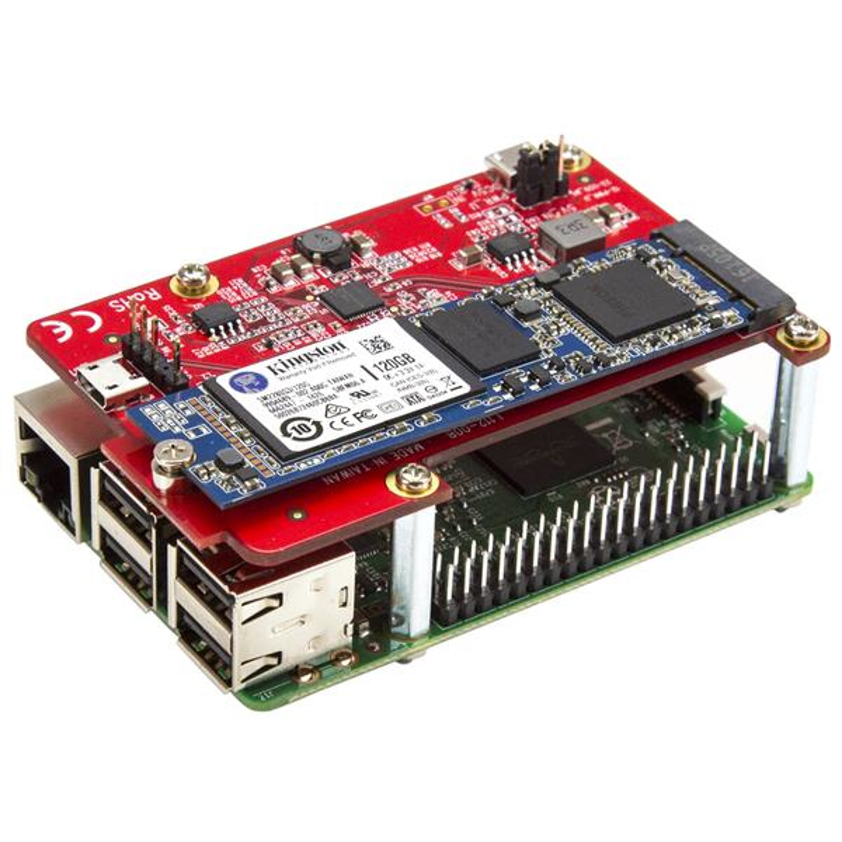

Increase the data storage capacity of your Raspberry Pi or other development board, by connecting it directly to an M.2 NGFF SATA SSD. Perfect for custom projects and applications, this USB to M.2 SATA converter supports all models of Raspberry Pi as well as other development boards.
Add storage capacity to your development board
This convenient USB 2.0 to M.2 SATA converter lets you overcome data storage limitations of your development board by enabling you to connect an M.2 SATA drive through your board’s USB-A port.
A convenient integrated solution
The USB to M.2 SATA converter integrates seamlessly with your existing development board. It’s the perfect addition for development-board based applications such as surveillance, media players and servers, digital signage and IoT/automation solutions. It enables you to utilize your M.2 SATA drives with your dev board, and take advantage of the small form factor of M.2 SATA which makes it ideal for applications with space limitations.
Easy to install

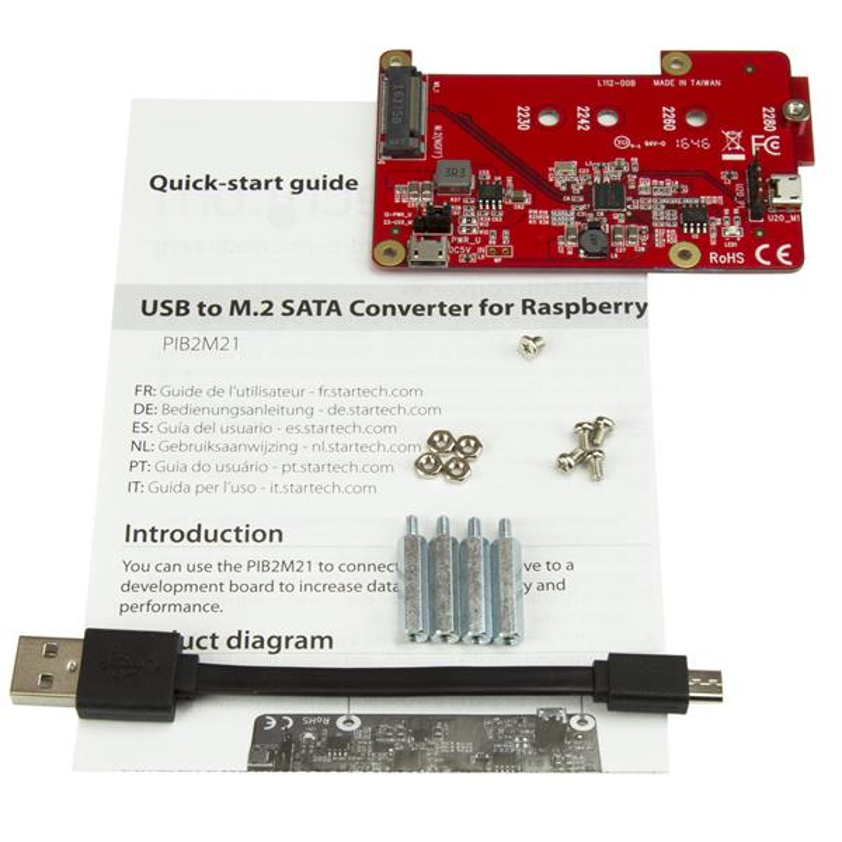

Compatible with M.2 SATA drives (2230, 2242, 2260, and 2280), the converter is easy to install and doesn’t require any device driver installation. It comes with a USB cable and all mounting accessories, including standoffs, so integrating it with your Raspberry Pi is fast and easy.
StarTech.com provides industry-leading support to get you up and running quickly. The PIB2M21 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note:
This converter works with M.2 SATA SSDs only. To see which type of M.2 drive you have, simply look at the number of notches (or keys) on the drive end that connects with the M.2 socket. SATA-based M.2 drives have two notches (an M key and a B key), while PCIe-based M.2 drives have just one notch (an M key).
Raspberry Pi is a trademark of the Raspberry Pi Foundation
StarTech.com USB to M.2 SATA Converter for Raspberry Pi and Development Boards
SKU: PIB2M21£18.79 ex VAT
£22.55 inc VAT
Low stockPorts & interfaces Internal Yes Output interface M.2 Host interface Micro-USB Technical details Chipset Renesas - µPD720231A Data transfer rate (max) 6 Gbit/s Compliance certificates RoHS Performance Chipset Renesas - µPD720231A Data transfer rate (max) 6 Gbit/s Product colour Red Harmonized System (HS) code 84733020 Certificates Certification CE, FCC Colour Product colour Red Design Mean time between failures (MTBF) 5839751 h Internal Yes Product colour Red Certification CE, FCC Features Chipset Renesas - µPD720231A Data transfer rate (max) 6 Gbit/s Harmonized System (HS) code 84733020 Power USB powered Yes Operational conditions Operating temperature (T-T) 5 - 50 °C Storage temperature (T-T) -25 - 70 °C Operating relative humidity (H-H) 15 - 90% Weight & dimensions Width 56 mm Depth 88 mm Height 11 mm Weight 21.8 g Package volume 100 cm³ Package width 142 mm Package depth 170 mm Package height 30 mm Package weight 110 g Packaging data Package volume 100 cm³ Package width 142 mm Package depth 170 mm Package height 30 mm Package weight 110 g Cables included USB Quick installation guide Yes Logistics data Harmonized System (HS) code 84733020 Packaging content Cables included USB Quick installation guide Yes Other features Chipset Renesas - µPD720231A Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
