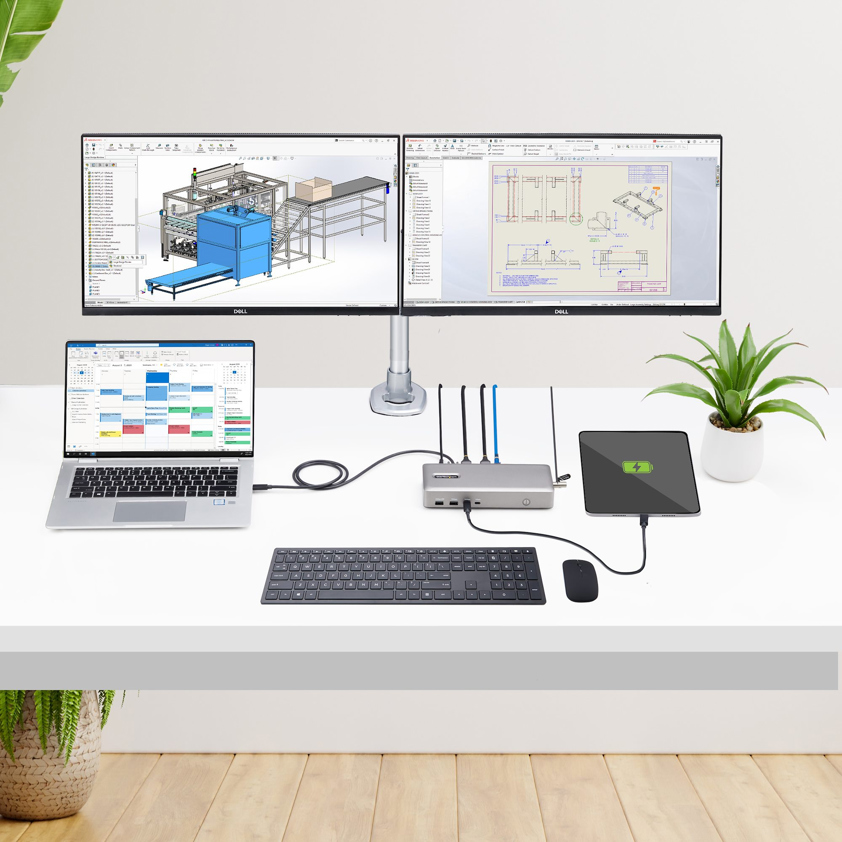

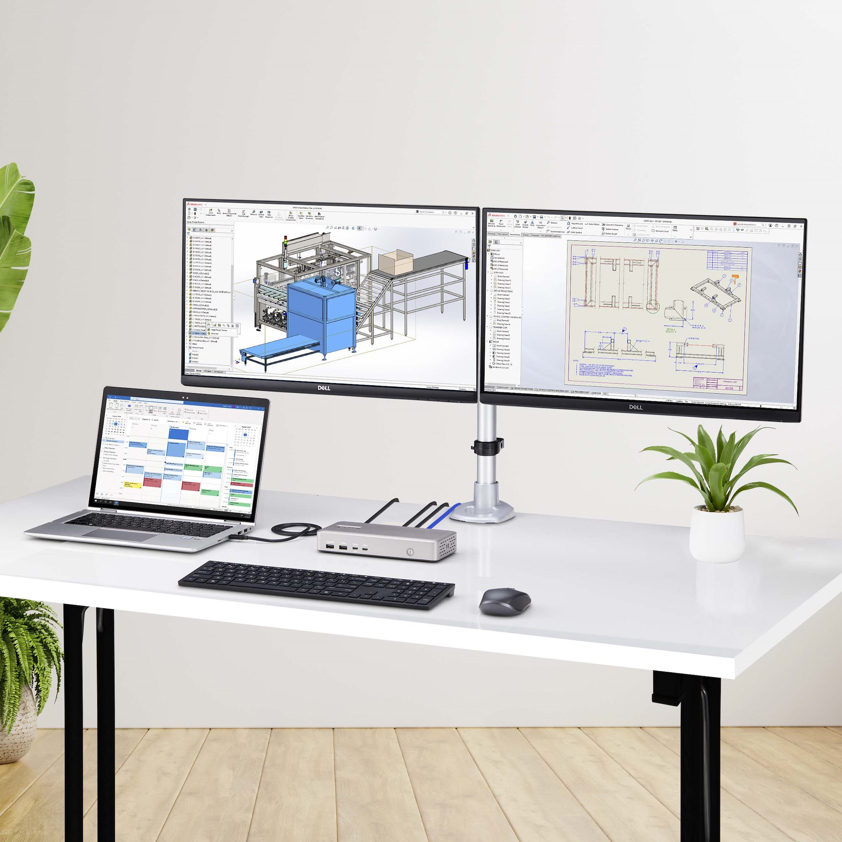

Turn a USB4 equipped laptop into a dual monitor workstation
This USB4 (USB-C 40Gbps) docking station uses a single USB4 or Thunderbolt port on a host computer to add high-performance connectivity while charging the laptop.
Flexible High-Performance Video

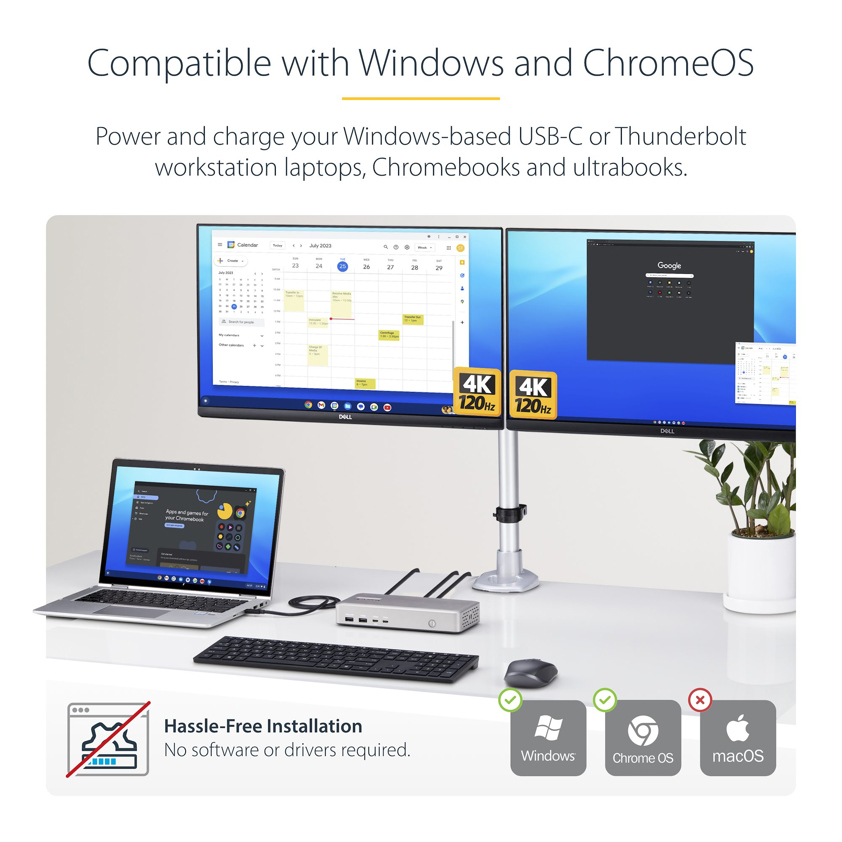

The dock is equipped with 2x HDMI 2.1 video outputs for connecting dual monitors to the host computer. The dock supports can support dual-monitors with support for resolutions up dual 4K 60Hz at 4:4:4 (RGB) or dual 4K 120Hz at 4:2:2. A single display workstation is also supported at resolutions up to 8K 30Hz 4:4:4 (RGB) or 8K 60Hz at 4:2:2.
Port Connectivity

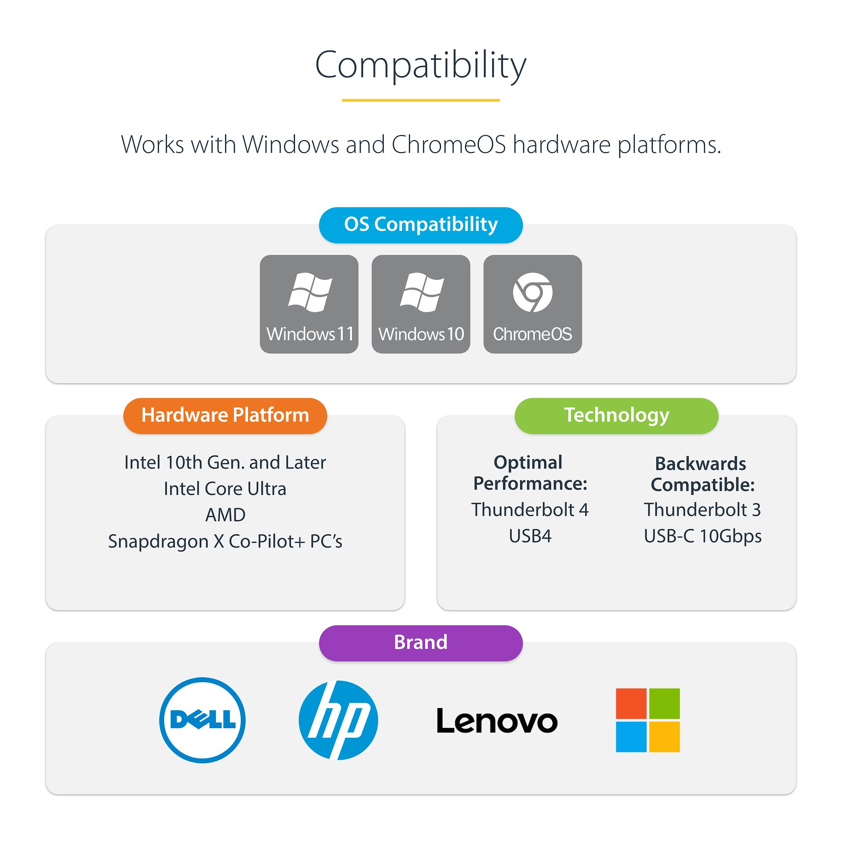

The docking station utilizes the high 40Gbps throughput available from a Thunderbolt 4/3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications.

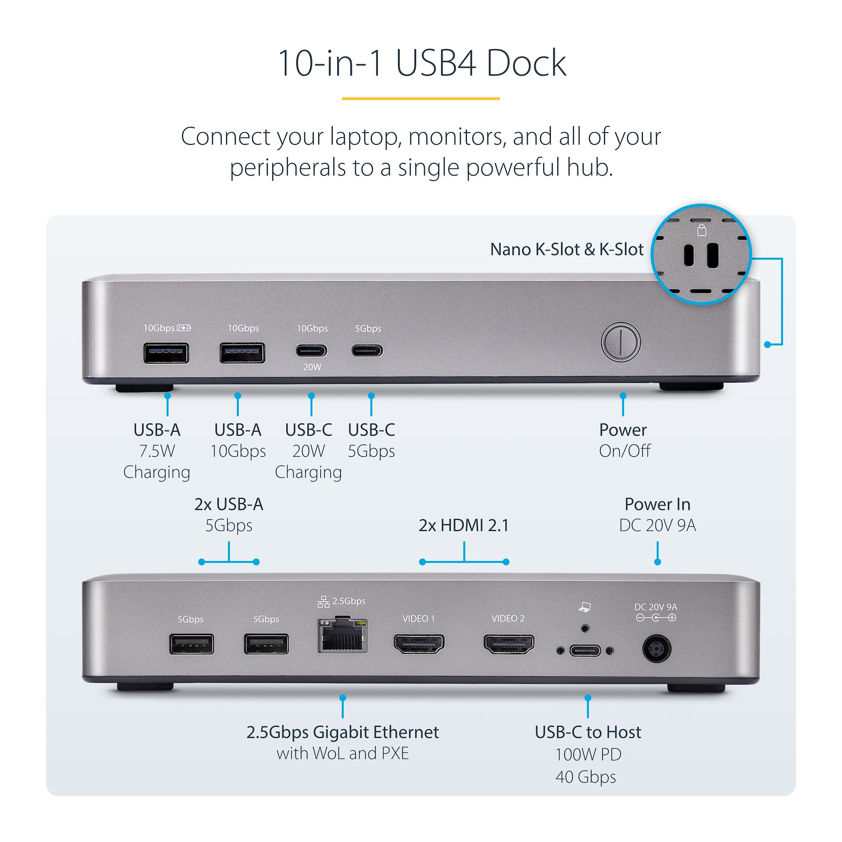

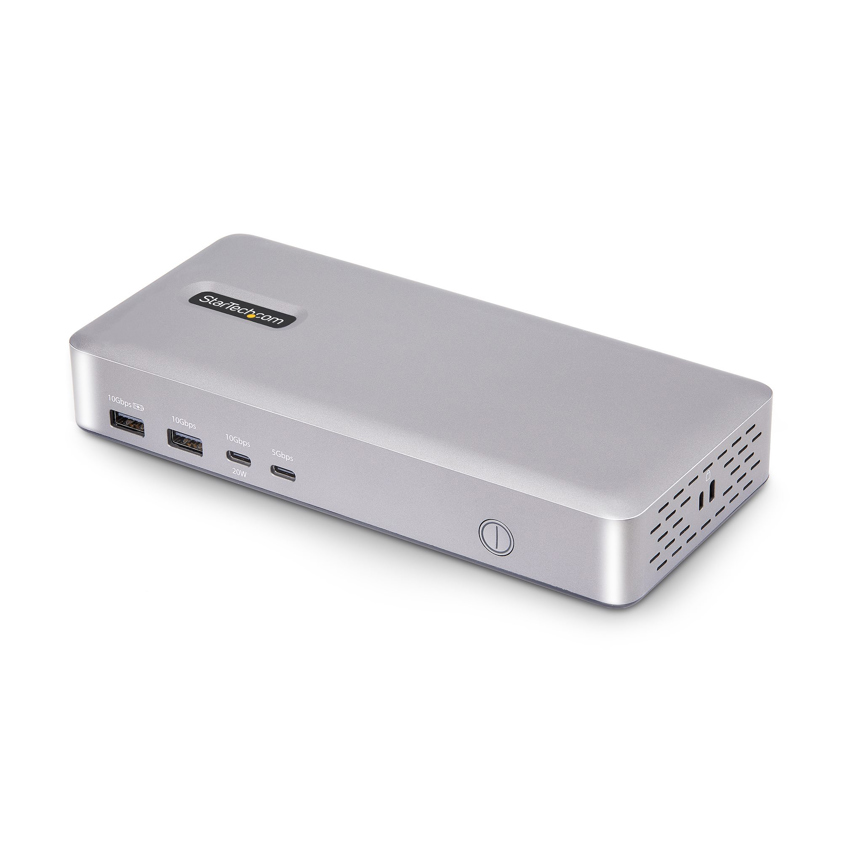

The dock features:

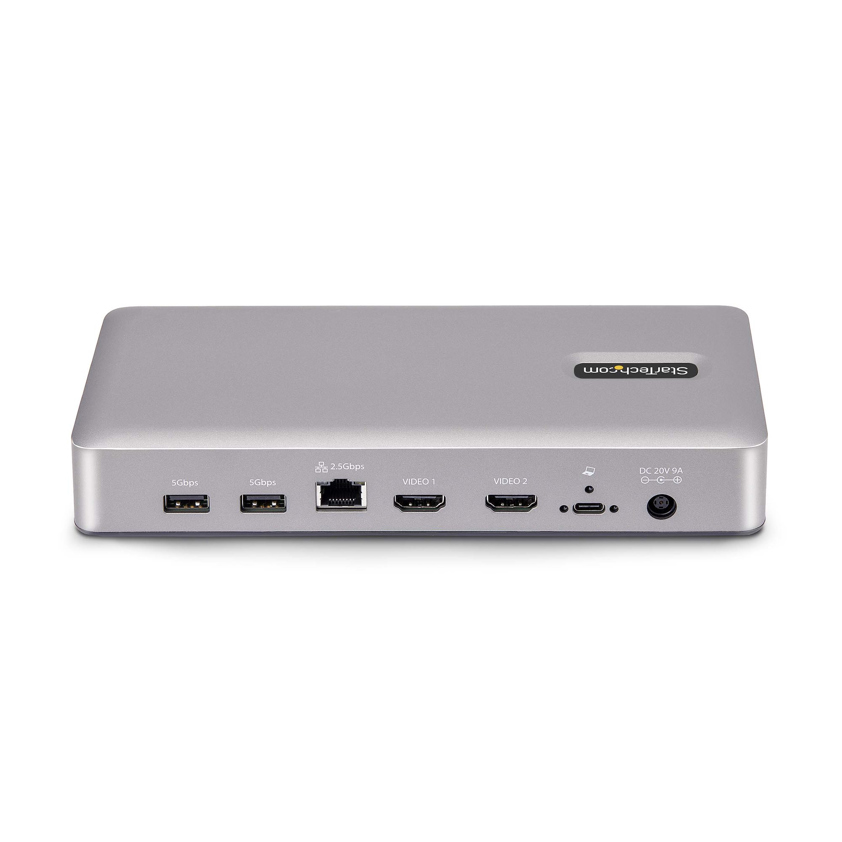

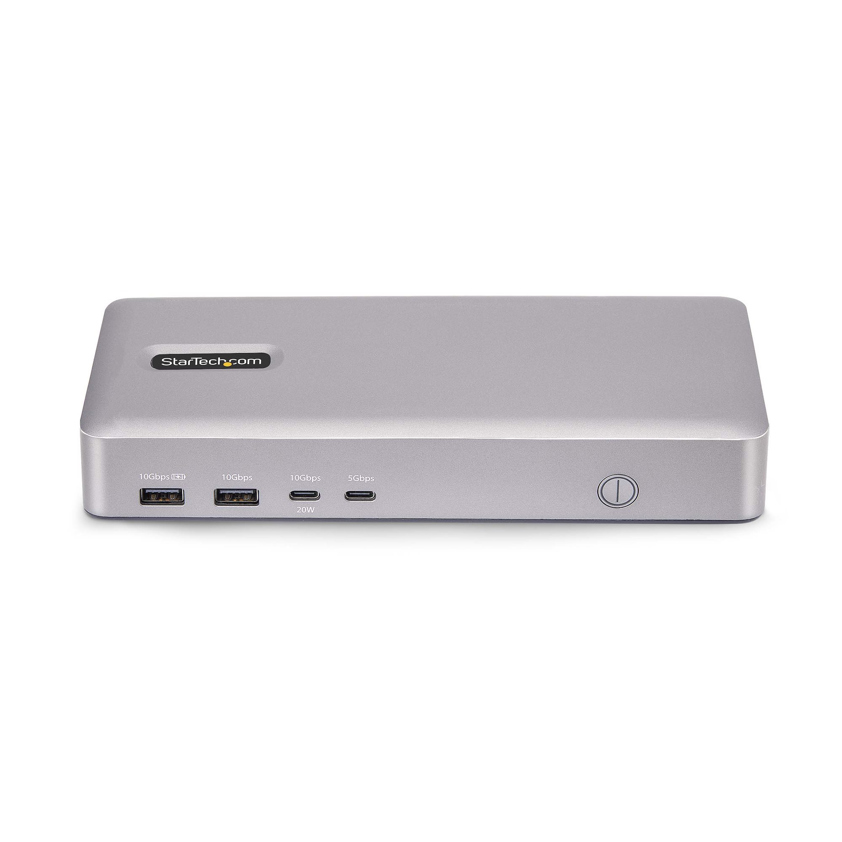

• 2x HDMI ports to connect displays.
• 6x USB Hub (2x 10Gbps USB Type-A, 2x USB Type-A 5Gbps, 1x USB Type-C 10Gbps, 1x USB-C 5Gbps) to connect USB peripheral devices.
• 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN)

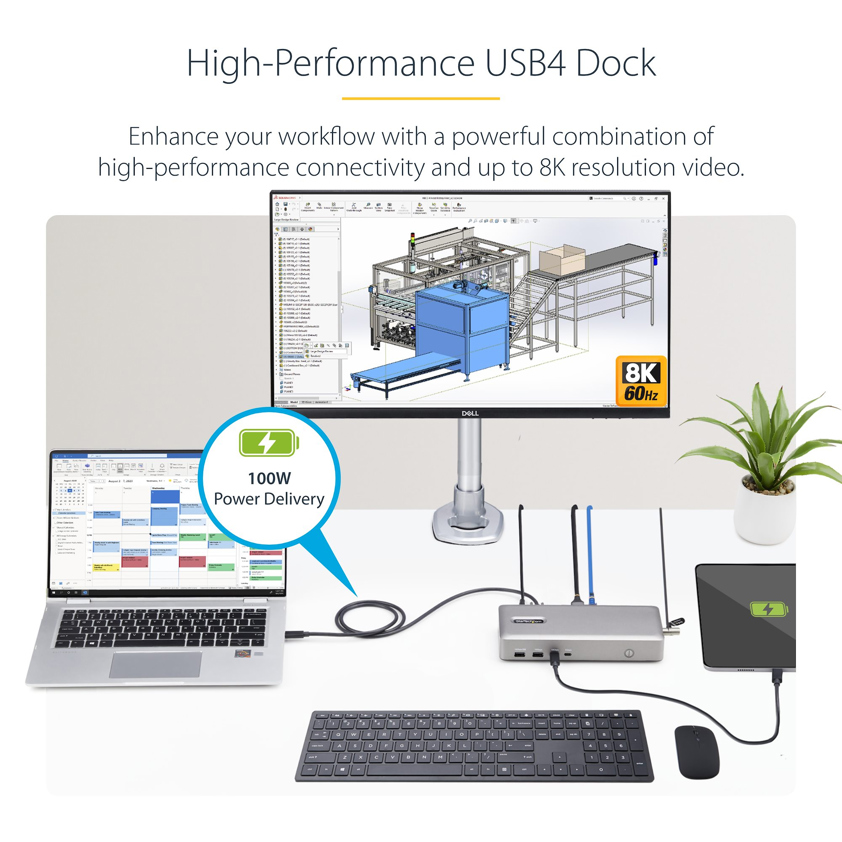

100W USB Power Delivery

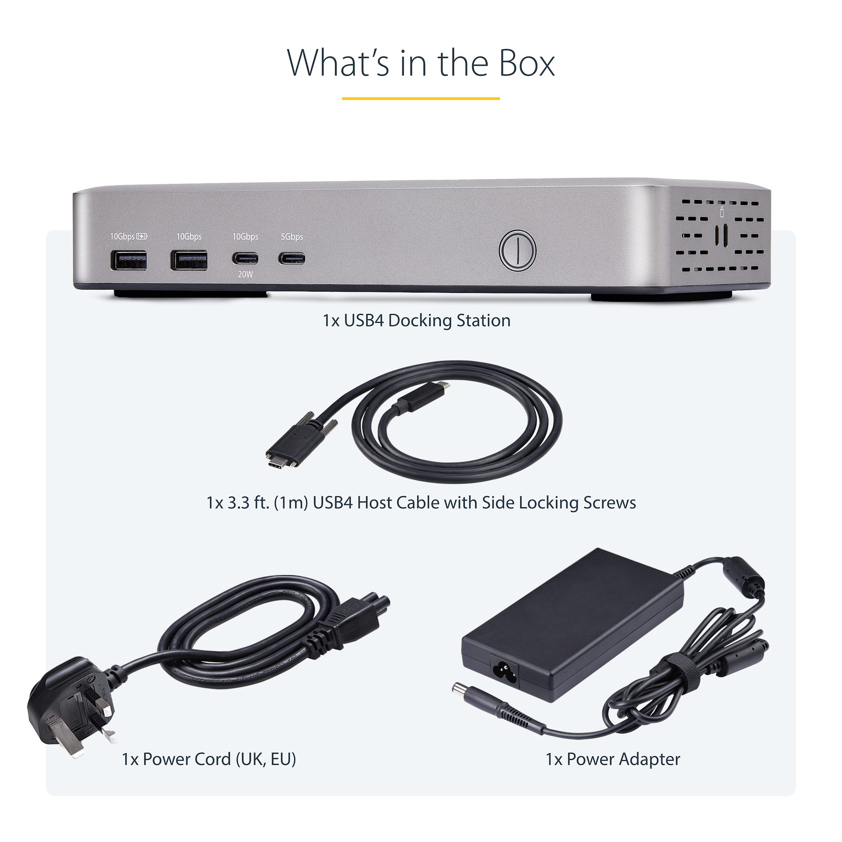

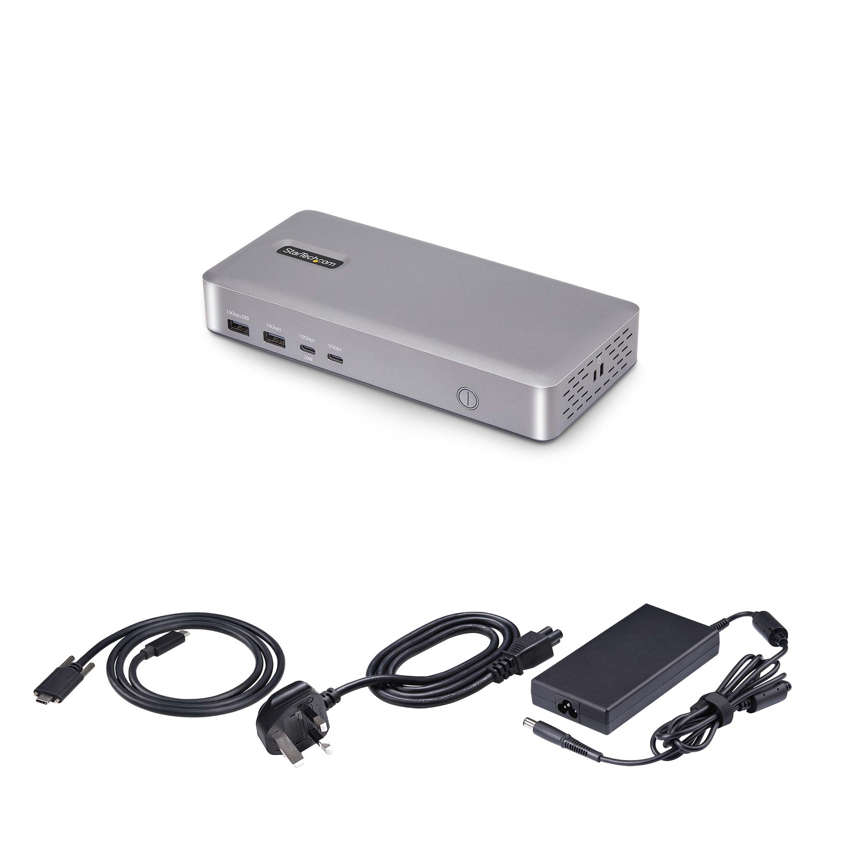

Includes a 180W power adapter and supports 100W USB power delivery. This enables the dock to charge the laptop, with enough additional power for all downstream ports. The 6-Port USB hub includes a 20W downstream USB-C Power Delivery port and a 7.5W BC 1.2 Downstream Charging Port (DCP) for charging tablets, smartphones or other battery-powered USB devices.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools App
Developed to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The StarTech.com Advantage
StarTech.com USB4 Docking Station, USB-C 40Gbps, Dual Video HDMI, Up to 2x 4K 60Hz 4:4:4 (RGB) or 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6x USB, 2.5GbE, 100W PD
SKU: 155UE-USB4-DOCK£143.96 ex VAT
£172.75 inc VAT

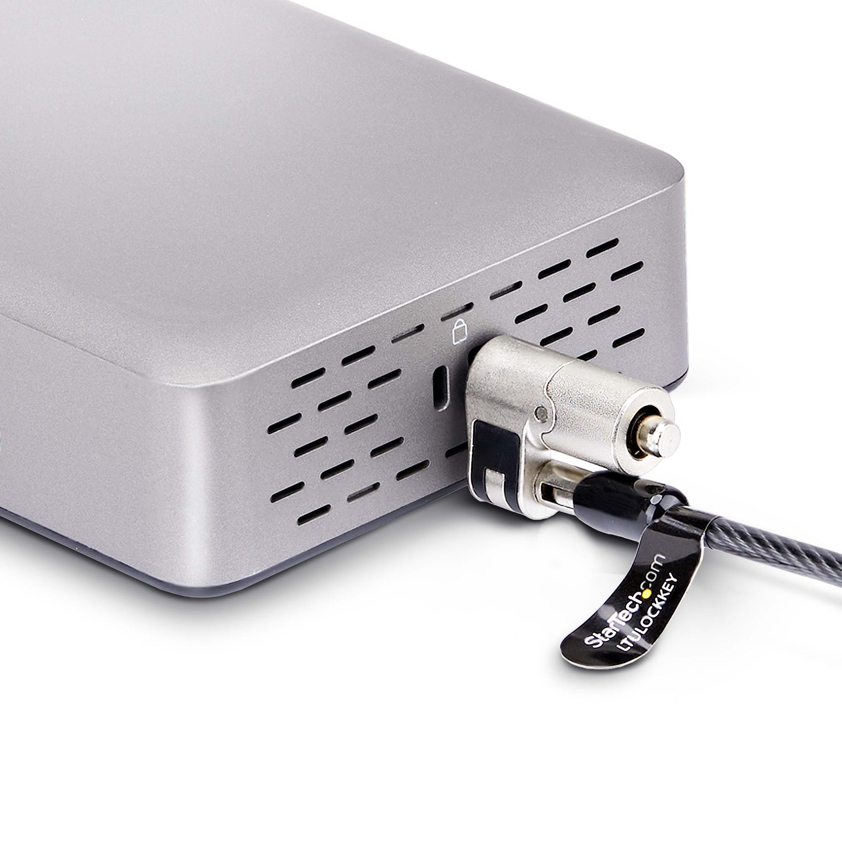

In stockPorts & interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 Host interface USB4 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 2 Microphone in No Headphone outputs 0 DC-in jack Yes Connectivity technology Wired USB Power Delivery (USB PD) Yes USB Power Delivery up to 100 W Network Full duplex Yes Wake-on-LAN ready Yes Ethernet LAN Yes Ethernet LAN data rates 10,100,1000,2500 Mbit/s Ethernet LAN (RJ-45) ports 1 Performance UASP support Yes Maximum digital resolution 3840 x 2160 pixels Full duplex Yes Number of displays supported 2 On/off switch Yes Product colour Silver Card reader integrated No Cable lock slot Yes LED indicators Yes Data transfer rate 40 Gbit/s Cable lock slot type Kensington, Nano HD type 4K Ultra HD Housing material Plastic Maximum refresh rate 120 Hz Technical details Product colour Silver Cable lock slot Yes Data transfer rate 40 Gbit/s Products per master (outer) case 8 pc(s) Master (outer) case width 305 mm Master (outer) case length 375 mm Master (outer) case height 265 mm Storage Card reader integrated No Power Power source type DC Input current 2.5 A Power plug type Type M Compatible power plug types EU, UK AC input voltage 100 - 240 V Power consumption (typical) 165 W Output voltage 20 V Output current 9 A Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 Other operating systems supported ChromeOS Indication LED indicators Yes Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 0 - 95% Weight & dimensions Weight 138.6 g Width 210 mm Depth 95 mm Height 34 mm Package weight 1.3 kg Package width 145 mm Package depth 230 mm Package height 89 mm Design Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 Product colour Silver Cable lock slot Yes LED indicators Yes Cable lock slot type Kensington, Nano Packaging data Package weight 1.3 kg Package width 145 mm Package depth 230 mm Package height 89 mm Packaging content Quick start guide Yes Cables included USB Logistics data Products per master (outer) case 8 pc(s) Master (outer) case width 305 mm Master (outer) case length 375 mm Master (outer) case height 265 mm Other features Chipset VIA - VL830, VIA - VL163, Realtek - RTD2188-VA-CG, Genesys Logic - GL9901NE Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
