TV Video Wall System | Steel | Anti-Theft | For 45" to 70" Displays
This professional video-wall mount features an innovative pop-out design that enables fast and easy display alignment and adjustment, within a multi-display video wall.
A Versatile Video Wall Mounting System

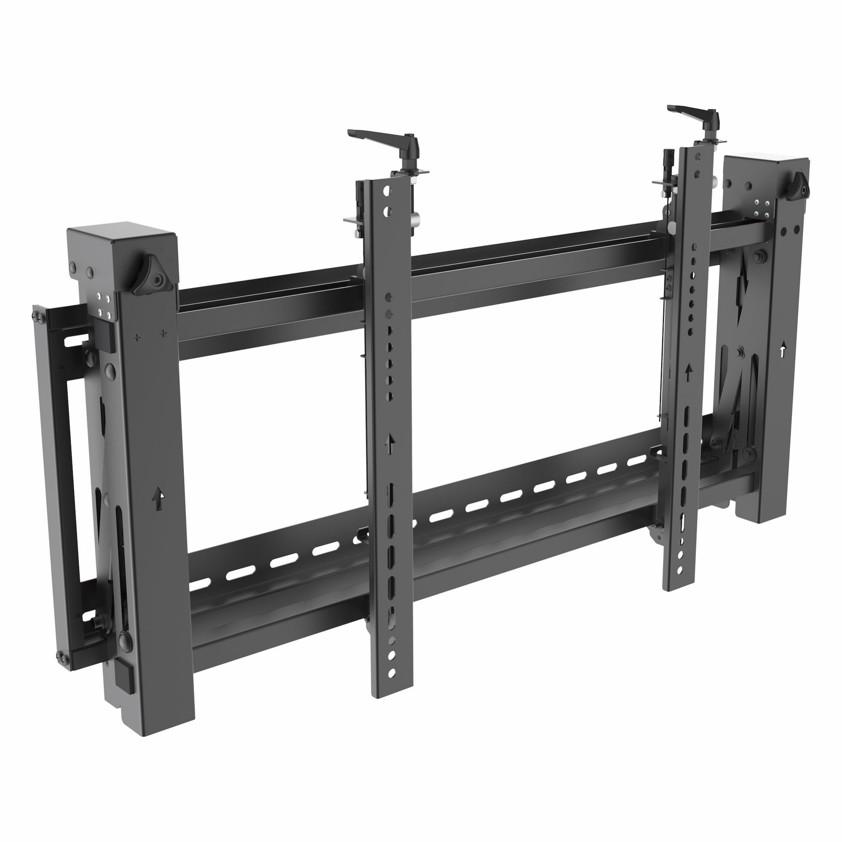

Engineered with heavy-duty steel, the video-wall mount securely supports 45" to 70" displays, weighing up to 154 lb. (70 kg).

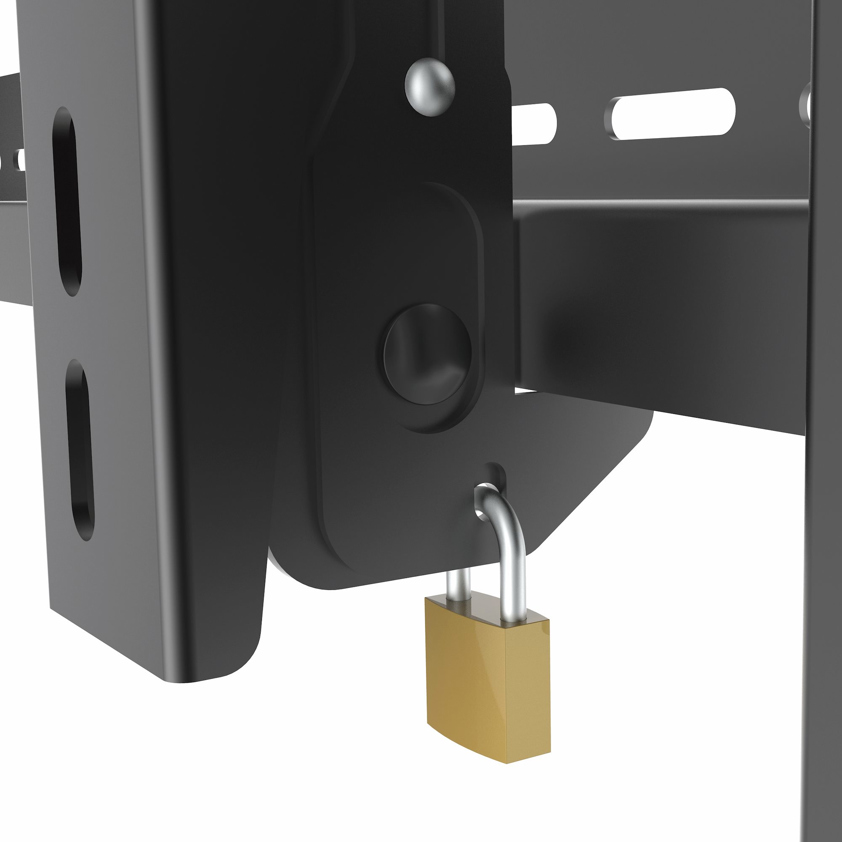

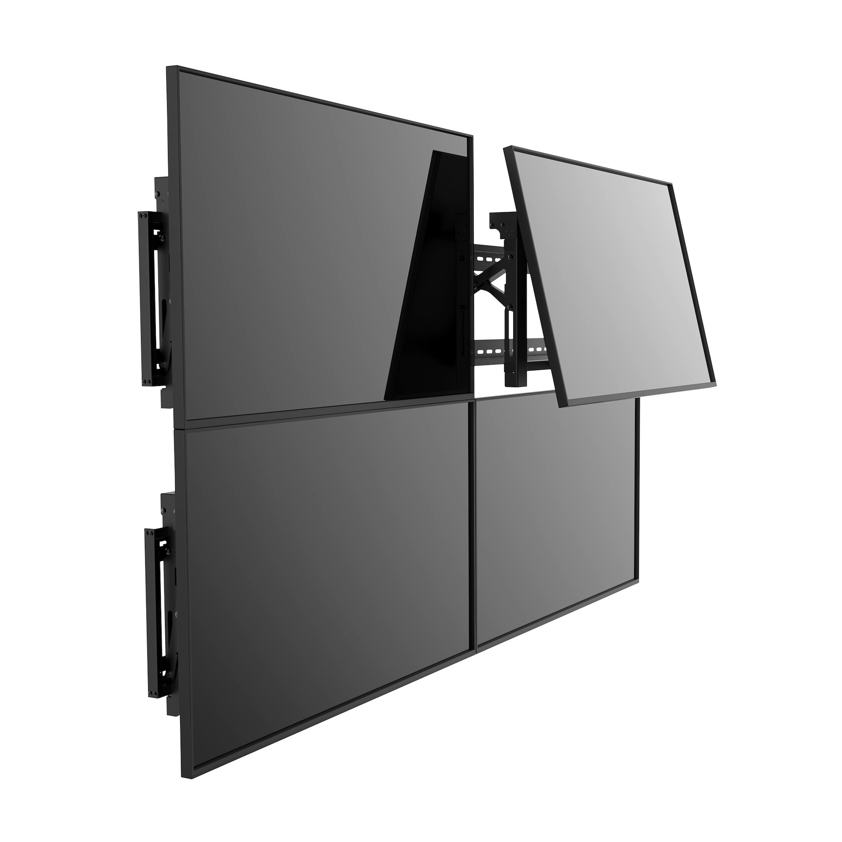

Using multiple VIDWALLMNT wall mounts, you can create an impressive video wall, enabling you to align your displays in unison. It’s the ideal solution for public, business and commercial displays and includes a theft deterrence feature (padlock required).
Align Your Displays Seamlessly

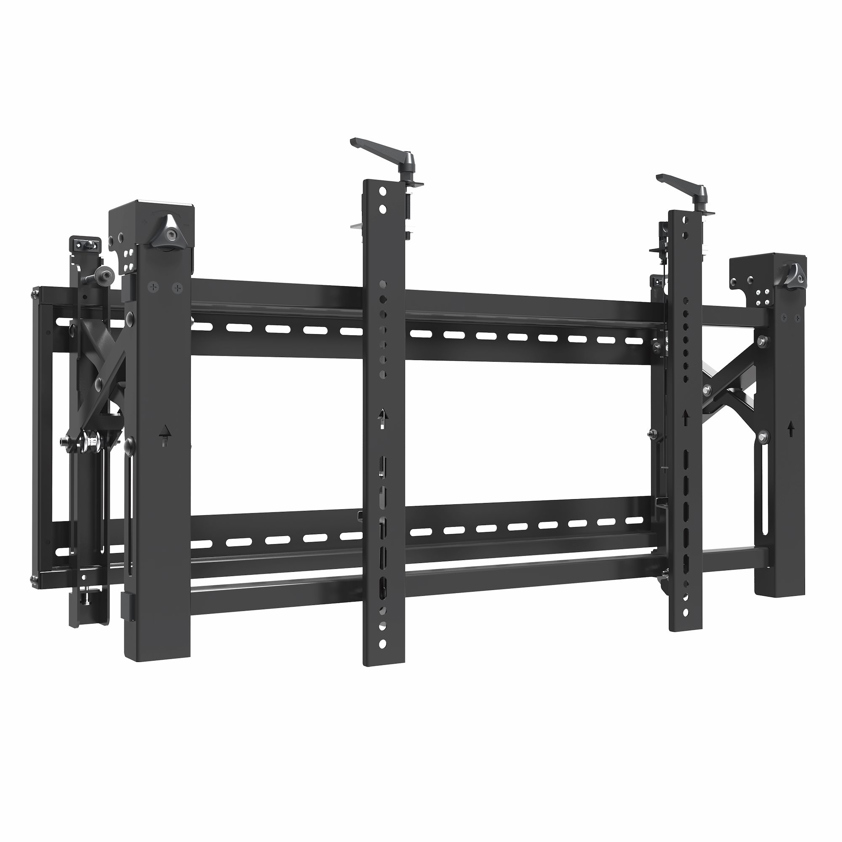

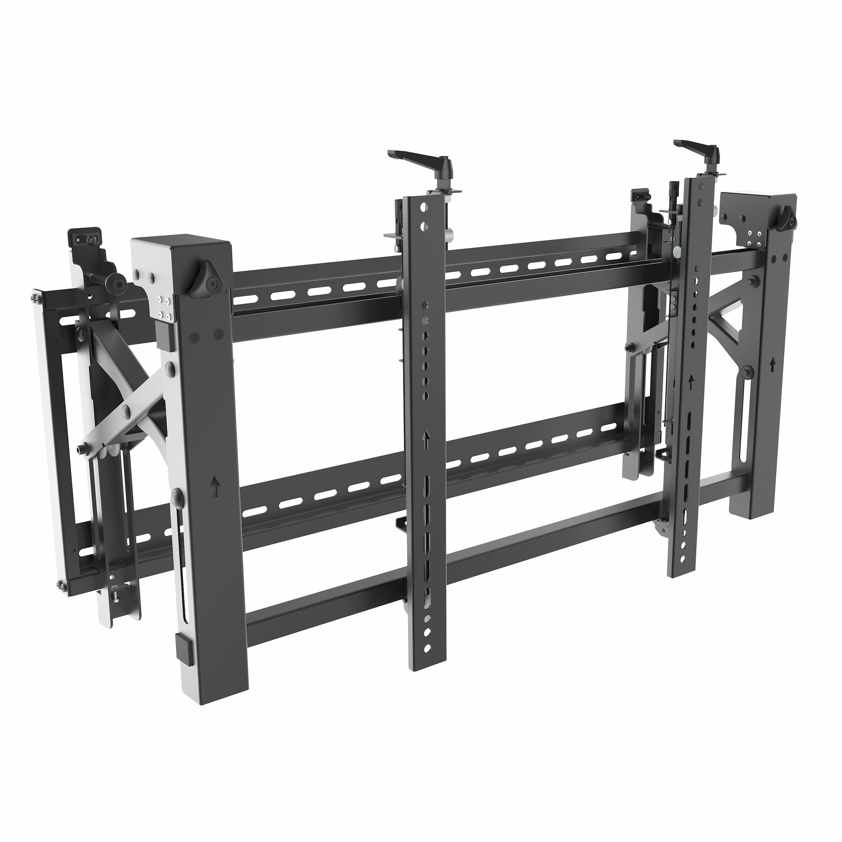

With its unique pop-out design, the video wall mount helps you align your displays with perfect precision. Once installed, you simply press gently on the front of the display and the mount extends out from the wall for rear-screen access. This pop-out feature makes it easy to adjust the position and angle of the display, or replace a display when required.

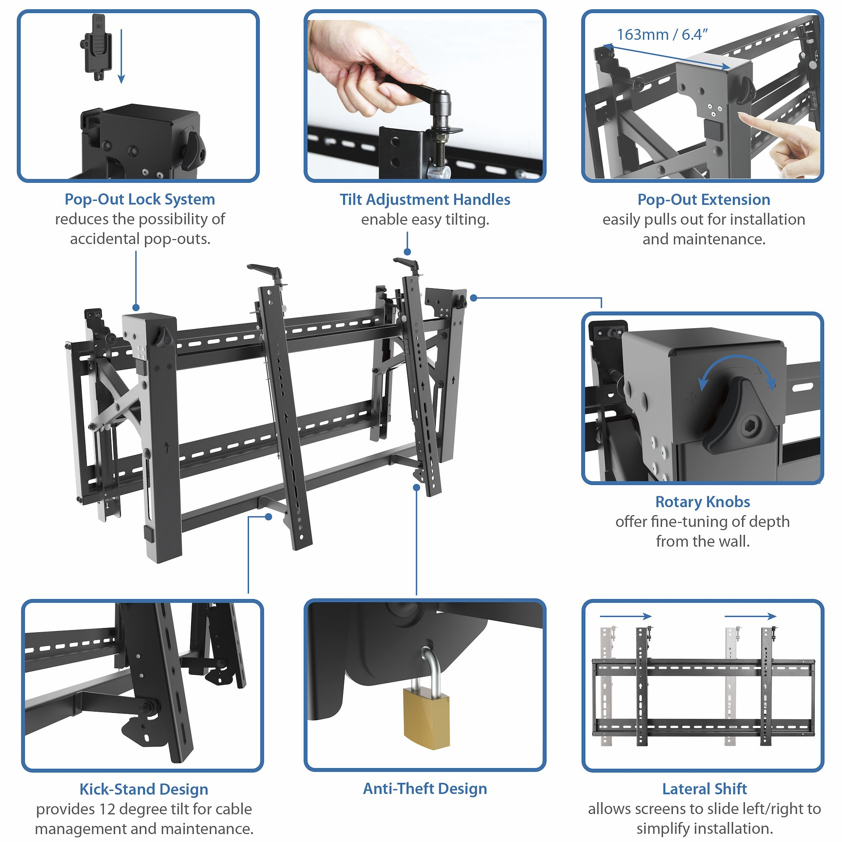

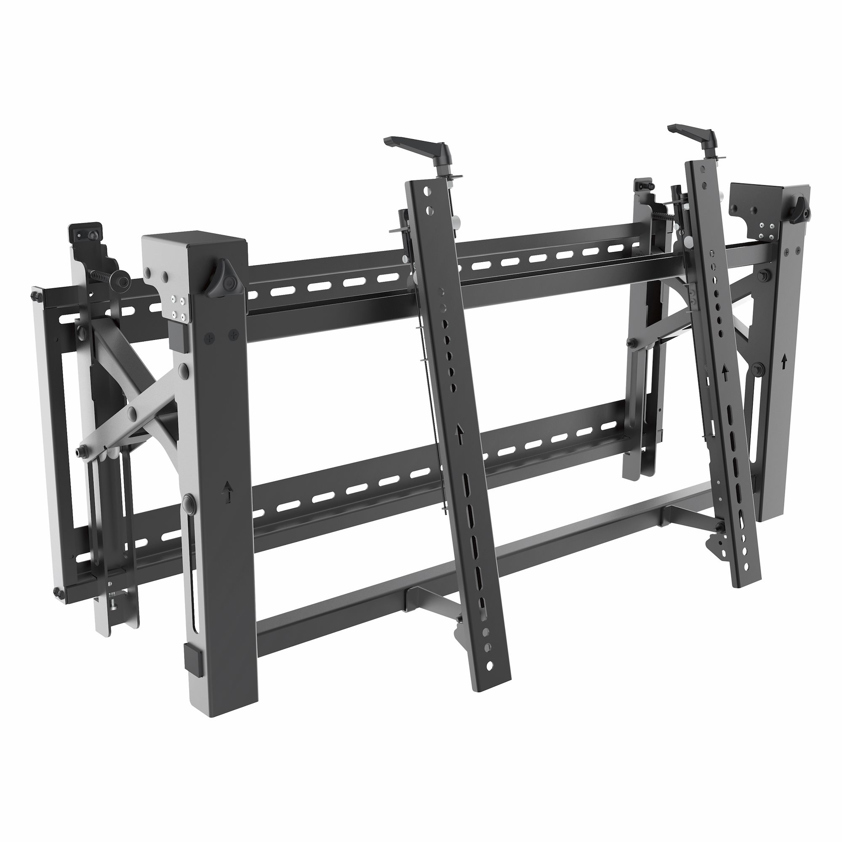

The video-wall mount features 6 points of micro-adjustment, with vertical, tilt and swivel adjustments, to provide exact display alignment and an optimum viewing angle. You can tilt your display +3 / -5 degrees, adjust the swivel angle +1.2 / - 1.2 degrees, and rotate the display +3 / - 3 degrees. The video-wall mount also features lateral shift brackets, making it easy to move the display to the left or right for ideal alignment in your video wall.
Easy Installation and Maintenance
This video-wall mounting system is designed for easy set-up and maintenance. The pop-out design also assists in installation and maintenance, plus a convenient kickstand allows you to tilt the display up to 12 degrees giving you extra room when adjusting cables or accessing ports.
The VIDWALLMNT is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Create an impressive video wall with this flat-screen TV mount, supporting a 45" to 70" display (theft deterrent design); Heavy-duty steel construction supports displays up to 154 lb. (70 kg)
- Pop-out design extends up to 12" (306 mm) to give rear-screen access for display adjustment
- 6 points of micro-adjustment (vertical, tilt and swivel) for exact display alignment
StarTech.com Video Wall Mount - Pop-Out Design - Micro-Adjustment
SKU: VIDWALLMNT£283.94 ex VAT
£340.72 inc VAT
Out of stockMounting Minimum screen size 114.3 cm (45") Maximum weight capacity 70 kg Panel mounting interface 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 Number of displays supported 1 Mounting type Wall Minimum VESA mount 200 x 200 mm Maximum VESA mount 600 x 400 mm Maximum screen size 177.8 cm (70") Ergonomics Swivel angle range -1.2 - 1.2° Tilt angle range -5 - 3° Distance to the wall (min) 14.2 cm Distance to the wall (max) 30.6 cm Design Housing material Aluminium, Steel Certification CE, REACH Product colour Black Accepts padlock Yes Weight & dimensions Width 306 mm Depth 934 mm Height 483 mm Weight 13.5 kg Depth (max) 93.4 cm Package width 510 mm Package depth 1000 mm Package height 209 mm Package weight 16.4 kg Packaging data Package width 510 mm Package depth 1000 mm Package height 209 mm Package weight 16.4 kg Packaging content Wrench type Hexagonal wrench Wrench included Yes Washers included Yes Spacer included Yes Screws included Yes Number of washers included 6 Number of spacers included 12 Number of screws 26 Manual Yes Technical details Number of displays supported 1 Mounting type Wall Distance to the wall (min) 14.2 cm Distance to the wall (max) 30.6 cm Compliance certificates RoHS Certificates Certification CE, REACH Logistics data Master (outer) case width 510 mm Master (outer) case length 1010 mm Master (outer) case height 209 mm Products per master (outer) case 1 pc(s) Harmonized System (HS) code 85299097 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
